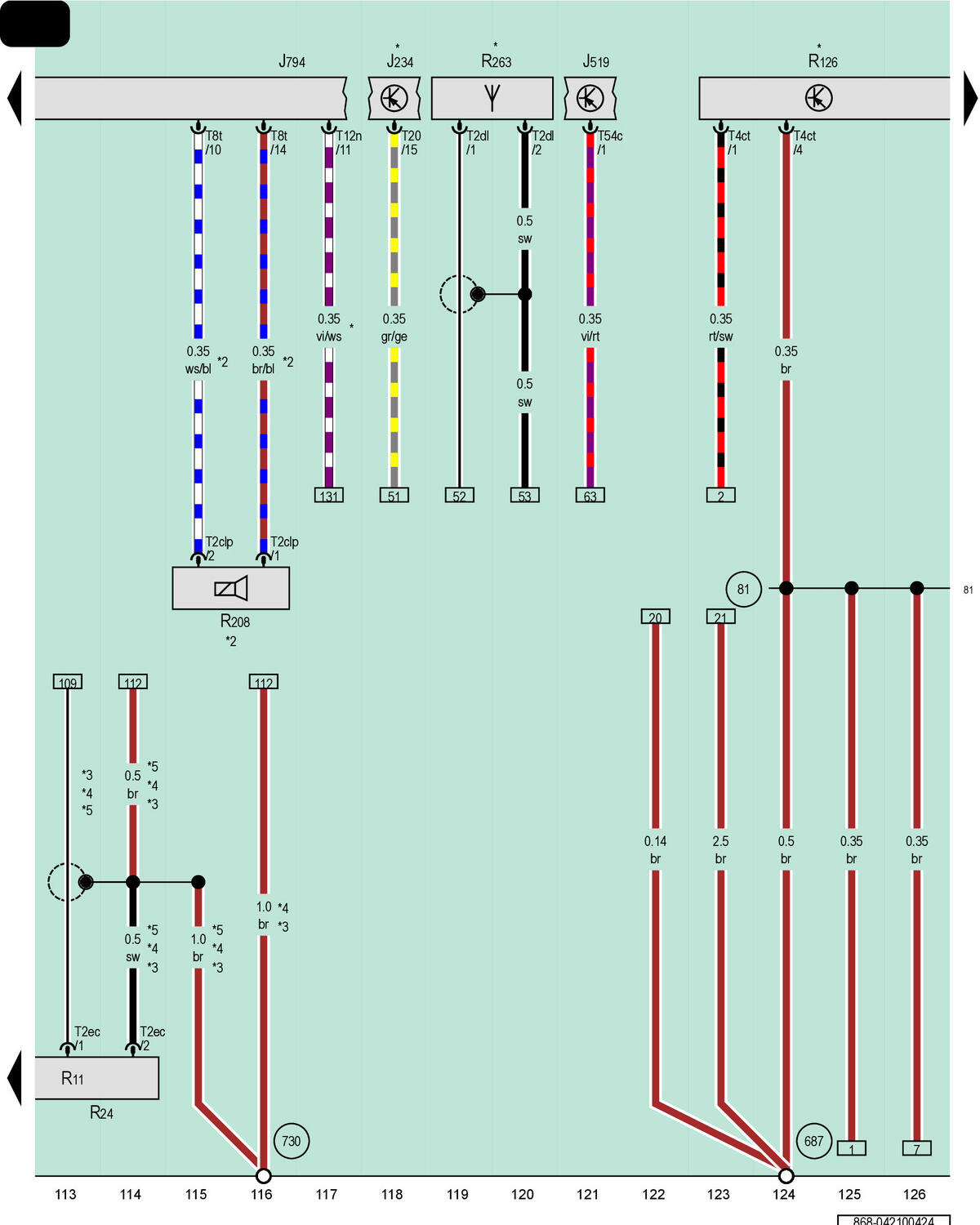

Information Electronics Control Module 1, Antenna Amplifier, Telephone BASEPLATE, Emergency Call Module Antenna
J234
Airbag Control Module
J519
Vehicle Electrical System Control Module
J794
Information Electronics Control Module 1
R11
Antenna
R24
Antenna Amplifier
R126
Telephone Baseplate
R208
Center Speaker
R263
Emergency Call Module Antenna
T2clp
2-Pin Connector, Black
T2dl
2-Pin Connector, Purple
T2ec
2-Pin Connector, Purple
T4ct
4-Pin Connector, Brown
T8t
8-Pin Connector, Black
T12n
12-Pin Connector, Gray
T20
20-Pin Connector, Yellow
T54c
54-Pin Connector, Black
81
Ground Connection 1 (in Instrument Panel Wiring Harness)
687
Ground Connection 1 on Center Tunnel
730
Ground Connection 1 on Right Rear Wheel Housing
*
Depending on Equipment
*2
For Vehicles with Standard Sound System
*3
For Vehicles Without TV Reception
*4
For Vehicles with Digital Radio
*5
For Vehicles with Japan Equipment
