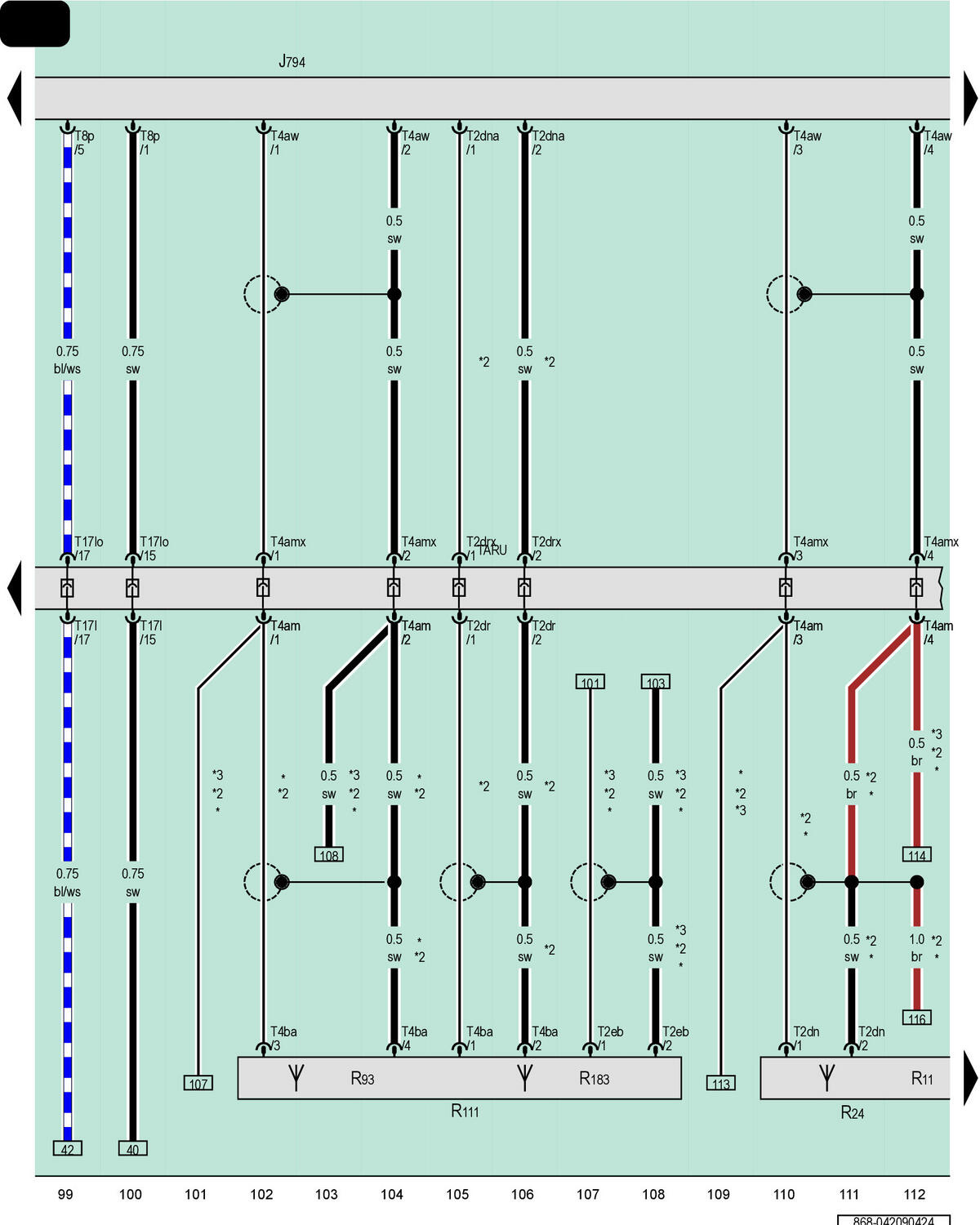

Information Electronics Control Module 1, Antenna Amplifier, Antenna Amplifier 2
J794
Information Electronics Control Module 1
R11
Antenna
R24
Antenna Amplifier
R93
Radio Antenna 2
R111
Antenna Amplifier 2
R183
Digital Radio Antenna
T2dn
2-Pin Connector, White
T2dna
2-Pin Connector, Black
T2dr
2-Pin Connector, Black
T2drx
2-Pin Connector, Black
T2eb
2-Pin Connector, Naturally Cloudy
T4am
4-Pin Connector, White
T4amx
4-Pin Connector, White
T4aw
4-Pin Connector, White
T4ba
4-Pin Connector, Naturally Cloudy
T8p
8-Pin Connector, Brown
T17l
17-Pin Connector, Green
T17lo
17-Pin Connector, Green
TARU
Coupling Point on Right A-Pillar, Bottom
*
For Vehicles Without TV Reception
*2
For Vehicles with Digital Radio
*3
For Vehicles with Japan Equipment
