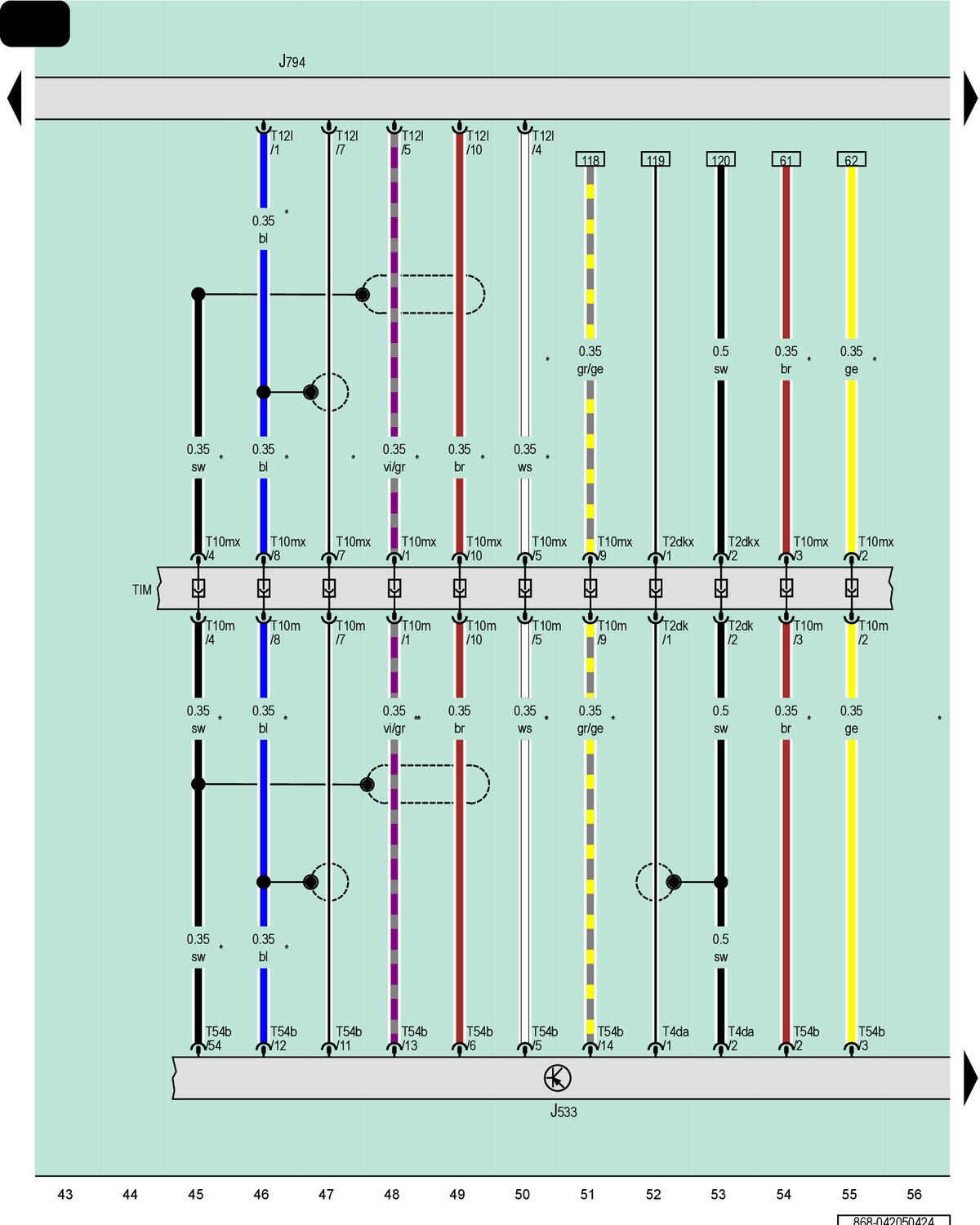

Data Bus On Board Diagnostic Interface, Information Electronics Control Module 1

Courtesy of AUDI OF AMERICA, LLC

J533

Data Bus on Board Diagnostic Interface

J794

Information Electronics Control Module 1

T2dk

2-Pin Connector, Purple

T2dkx

2-Pin Connector, Purple

T4da

4-Pin Connector, Purple

T10m

10-Pin Connector, Black

T10mx

10-Pin Connector, Black

T12l

12-Pin Connector, Blue

T54b

54-Pin Connector, Blue

TIM

Coupling Point in Interior, Center

*

Depending on Equipment
