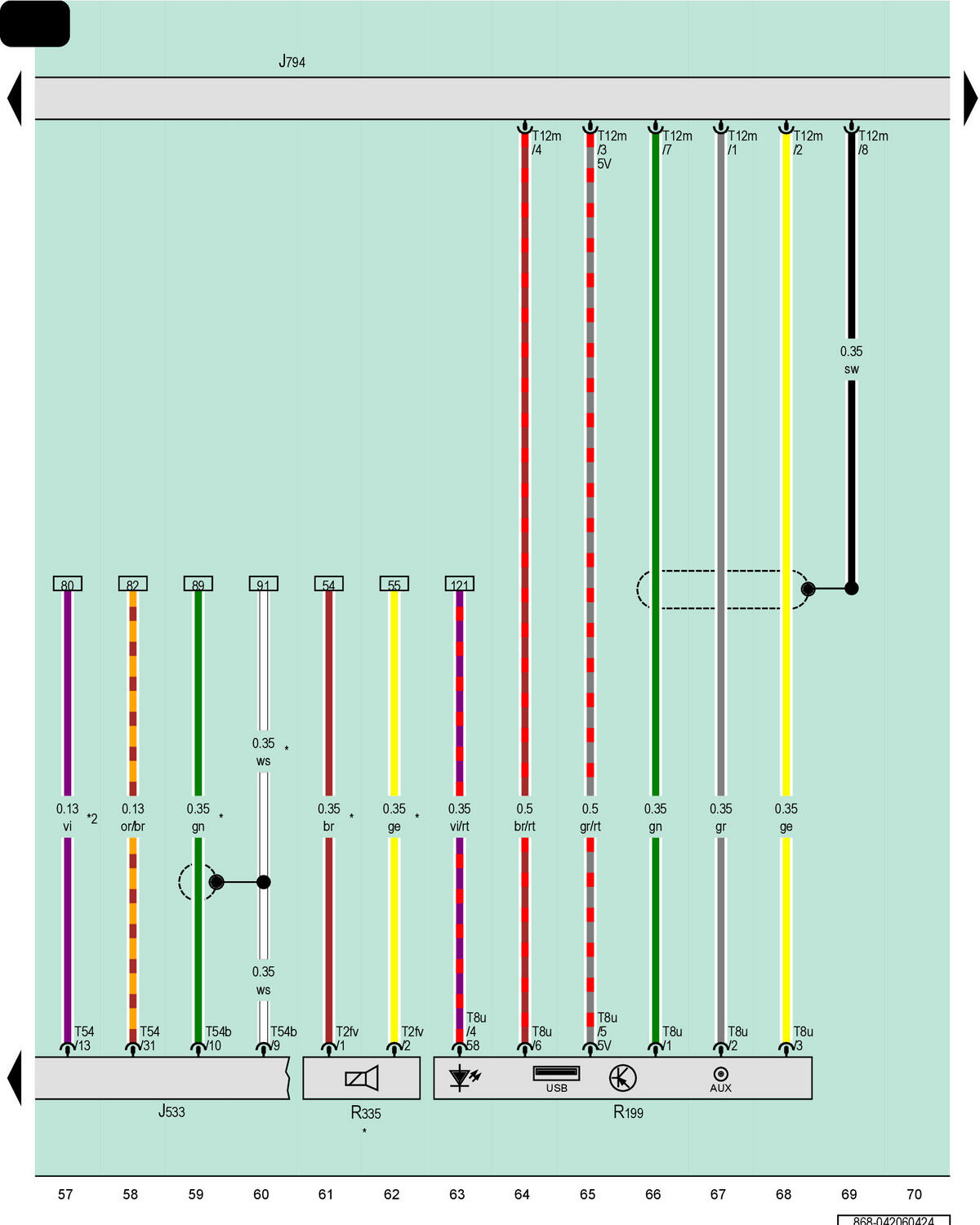

Data Bus On Board Diagnostic Interface, Information Electronics Control Module 1, External Audio Source Connection, Emergency Call Module Speaker

Courtesy of AUDI OF AMERICA, LLC

J533

Data Bus on Board Diagnostic Interface

J794

Information Electronics Control Module 1

R199

External Audio Source Connection

R335

Emergency Call Module Speaker

T2fv

2-Pin Connector, Brown

T8u

8-Pin Connector, Brown

T12m

12-Pin Connector, Green

T54

54-Pin Connector, Black

T54b

54-Pin Connector, Blue

*

Depending on Equipment

*2

Different Wire Color Possible
