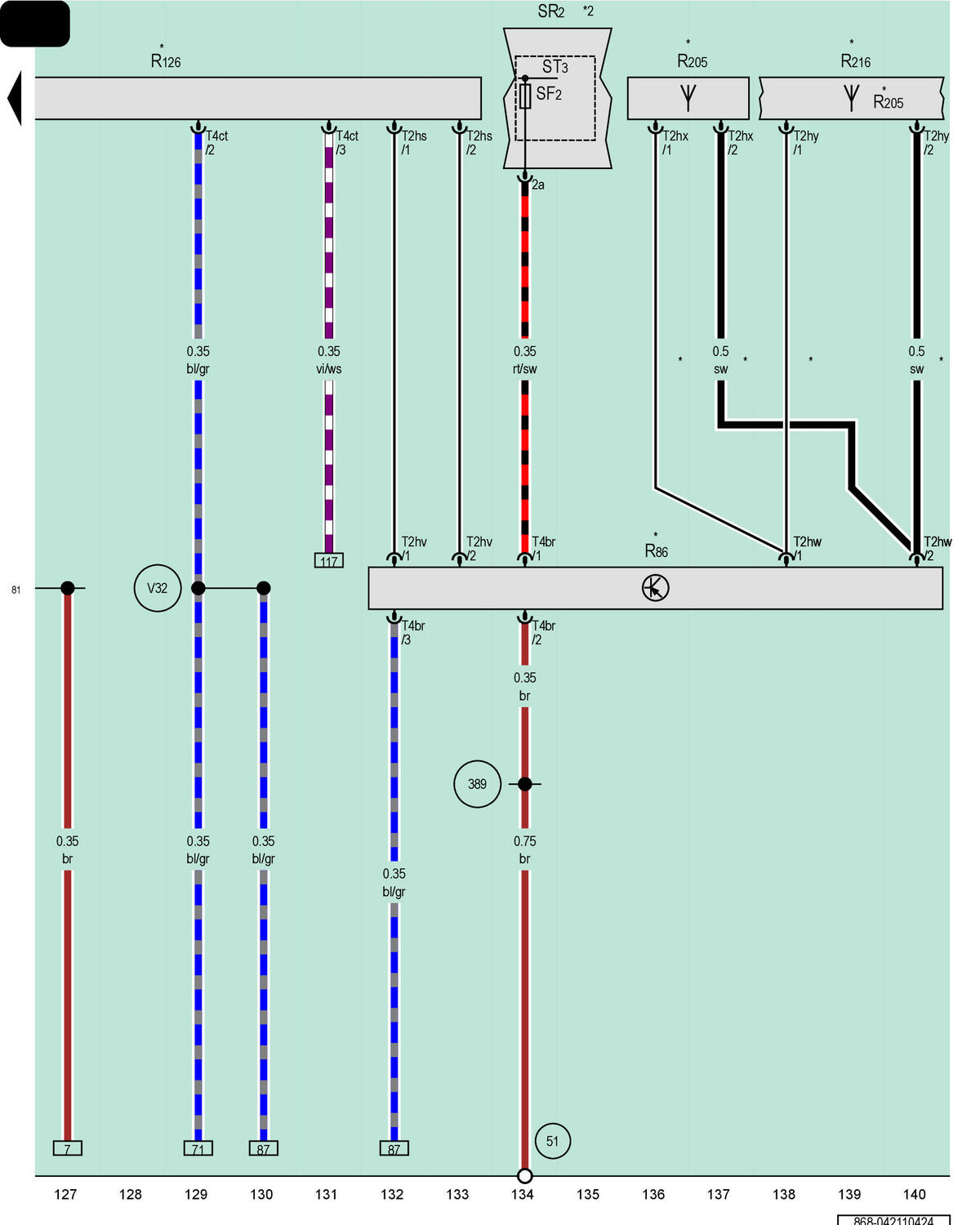

Cellular Telephone Amplifier, Telephone BASEPLATE

Courtesy of AUDI OF AMERICA, LLC

R86

Cellular Telephone Amplifier

R126

Telephone Baseplate

R205

GSM Antenna, Behind the Right Rear Bumper

R216

Roof Antenna

SF2

Fuse 2 (On Fuse Panel F)

SR2

Relay and Fuse Panel 2, Behind the Left Luggage Compartment Side Trim

ST3

Fuse Panel 3, Brown

T2hs

2-Pin Connector, Purple

T2hv

2-Pin Connector, Black

T2hw

2-Pin Connector, Purple

T2hx

2-Pin Connector, Purple

T2hy

2-Pin Connector, Purple

T4br

4-Pin Connector, Black

T4ct

4-Pin Connector, Brown

51

Ground Connection in Luggage Compartment, Right

81

Ground Connection 1 (in Instrument Panel Wiring Harness)

389

Ground Connection 24 (in Main Wiring Harness)

V32

Positive Connection (30 (in Telephone Wiring Harness)

*

Depending on Equipment

*2

Refer to Applicable Wiring Diagram for Fuse Positions
