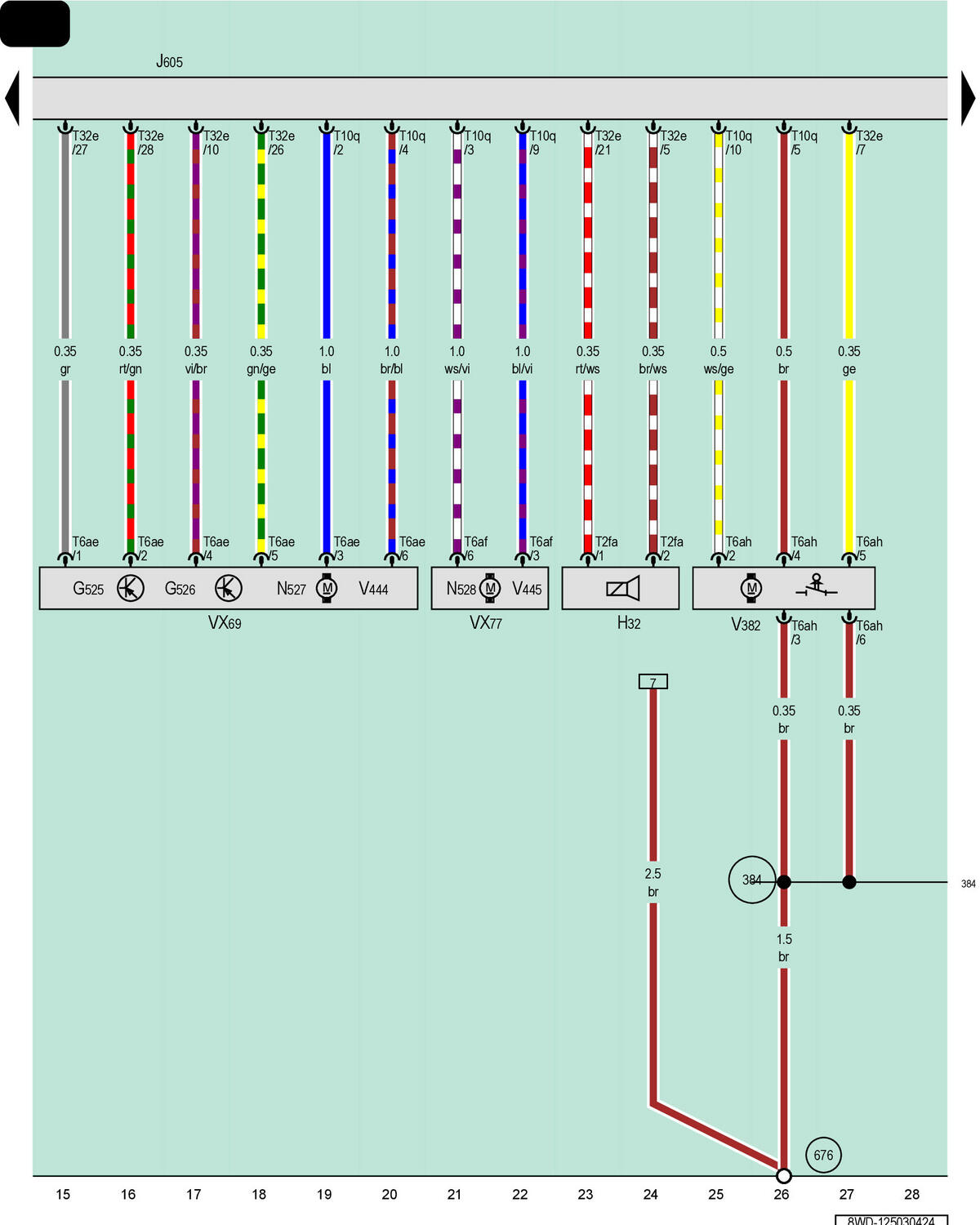

Rear Lid Warning Buzzer, Rear Lid Control Module, Rear Lid Drive Unit, Rear Lid Drive Unit 2, Rear Lid Closing Aid Motor

Courtesy of AUDI OF AMERICA, LLC

G525

Rear Lid -Closed- Sensor 1

G526

Rear Lid -Closed- Sensor 2

H32

Rear Lid Warning Buzzer

J605

Rear Lid Control Module

N527

Coupling in Rear Lid Motor 1

N528

Coupling in Rear Lid Motor 2

T2fa

2-Pin Connector, Black

T6ae

6-Pin Connector, Brown

T6af

6-Pin Connector, Brown

T6ah

6-Pin Connector, Black

T10q

10-Pin Connector, Black

T32e

32-Pin Connector, Black

VX69

Rear Lid Drive Unit

VX77

Rear Lid Drive Unit 2

V382

Rear Lid Closing Aid Motor

V444

Rear Lid Motor 1

V445

Rear Lid Motor 2

384

Ground Connection 19 (in Main Wiring Harness)

676

Ground Connection 2 in Luggage Compartment, Left
