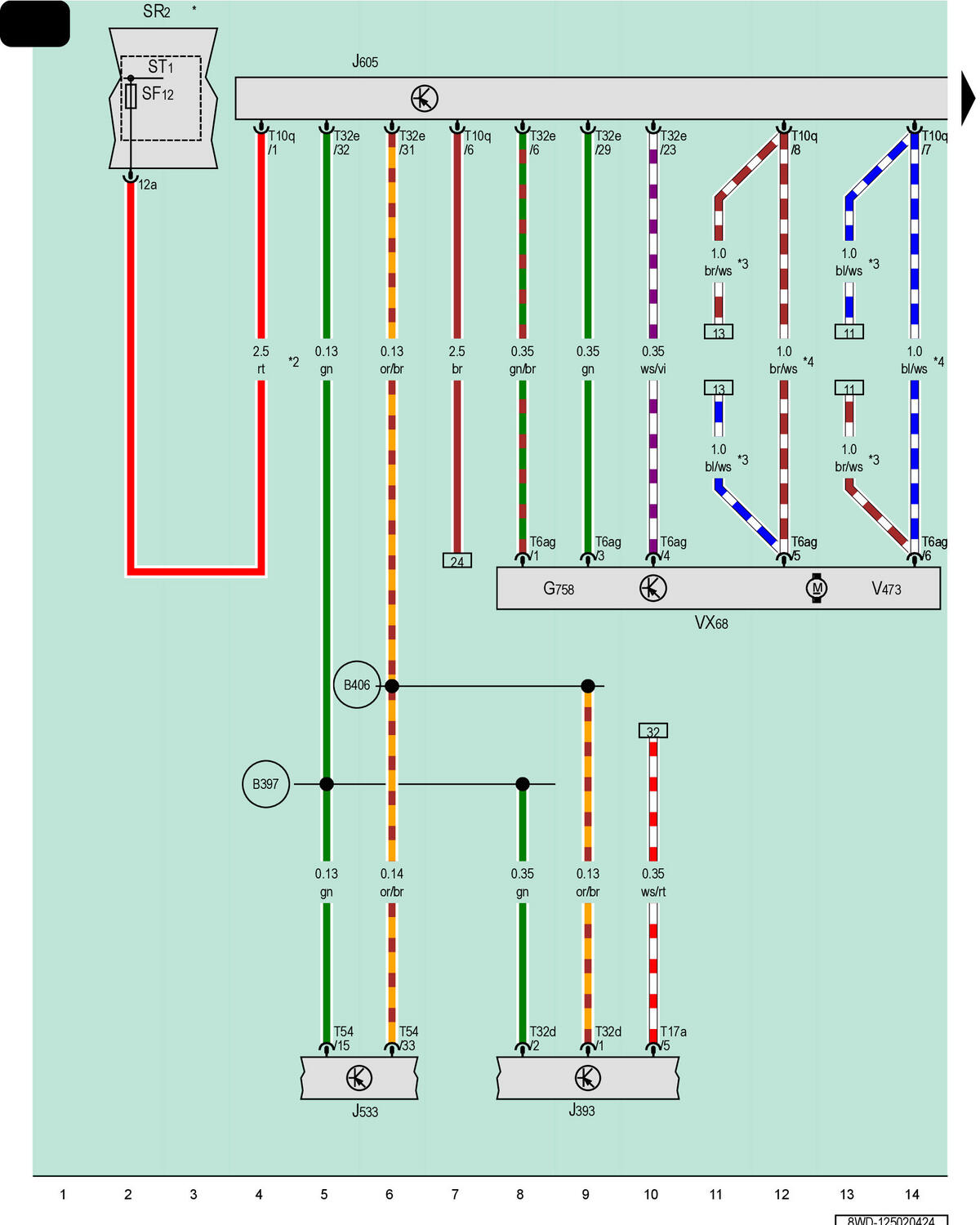

Comfort System Central Control Module, Rear Lid Control Module, Luggage Compartment Cover Drive Unit

Courtesy of AUDI OF AMERICA, LLC

G758

Luggage Compartment Cover Sensor

J393

Comfort System Central Control Module

J533

Data Bus on Board Diagnostic Interface

J605

Rear Lid Control Module

ST1

Fuse Panel 1, Black

SR2

Relay and Fuse Panel 2, Behind the Left Luggage Compartment Side Trim

SF12

Fuse 12 (On Fuse Panel F)

T6ag

6-Pin Connector, Black

T10q

10-Pin Connector, Black

T17a

17-Pin Connector, Brown

T32d

32-Pin Connector, Blue

T32e

32-Pin Connector, Black

T54

54-Pin Connector, Black

VX68

Luggage Compartment Cover Drive Unit

V473

Luggage Compartment Cover Motor 1

B397

Comfort System CAN Bus, High Connection 1 (in Main Wiring Harness)

B406

Comfort System CAN Bus, Low Connection 1 (in Main Wiring Harness)

*

Refer to Applicable Wiring Diagram for Fuse Positions

*2

4.0 Diameter Possible

*3

For Natural Gas Vehicles

*4

Depending on Equipment
