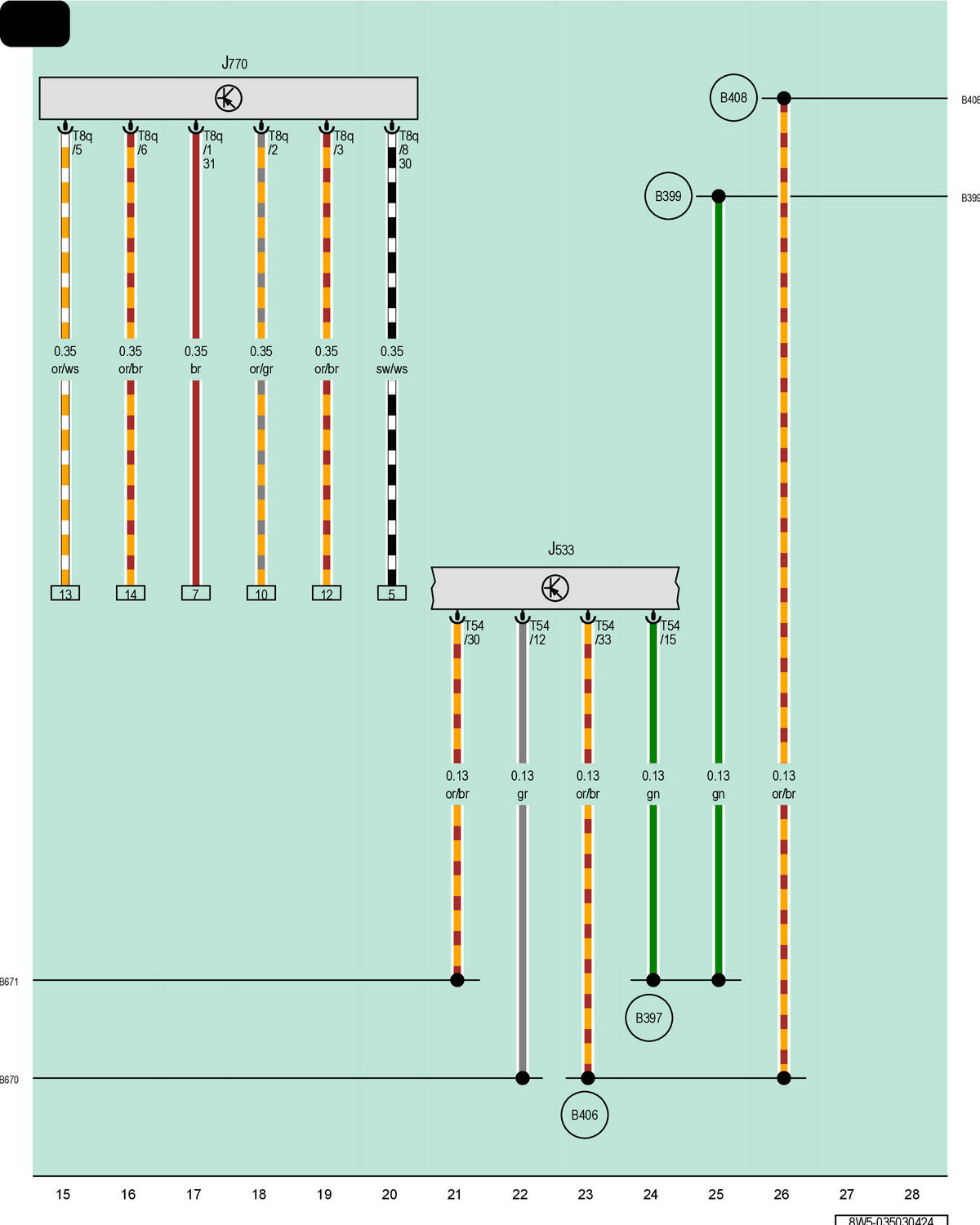

Lane Change Assistance Control Module 2

Courtesy of AUDI OF AMERICA, LLC

J533

Data Bus on Board Diagnostic Interface

J770

Lane Change Assistance Control Module 2

T8q

8-Pin Connector, Black

T54

54-Pin Connector, Black

B397

Comfort System CAN Bus, High Connection 1 (in Main Wiring Harness)

B399

Comfort System CAN Bus, High Connection 3 (in Main Wiring Harness)

B406

Comfort System CAN Bus, Low Connection 1 (in Main Wiring Harness)

B408

Comfort System CAN Bus, Low Connection 3 (in Main Wiring Harness)

B670

CAN Bus Extended High Connection 3 (in Main Wiring Harness)

B671

CAN Bus Extended Low Connection 3 (in Main Wiring Harness)
