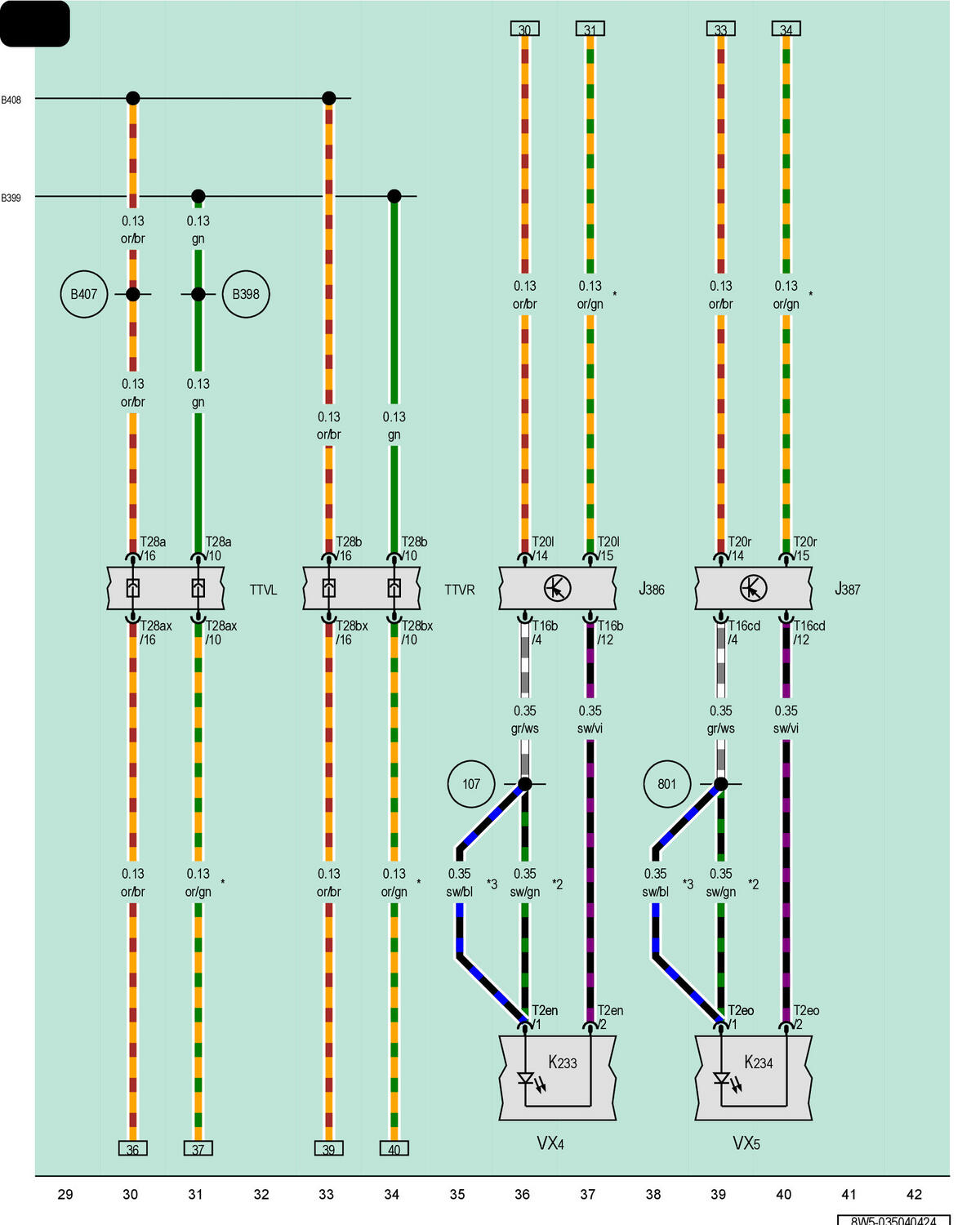

Driver Exterior Rearview Mirror, Front Passenger Exterior Rearview Mirror
J386
Driver Door Control Module
J387
Front Passenger Door Control Module
K233
Lane Change Assistance Warning Lamp in Driver Exterior Rearview Mirror
K234
Lane Change Assistance Warning Lamp in Front Passenger Exterior Rearview Mirror
T2en
2-Pin Connector, Black
T2eo
2-Pin Connector, Black
T16b
16-Pin Connector, Black
T16cd
16-Pin Connector, Black
T20l
20-Pin Connector, White
T20r
20-Pin Connector, White
T28a
28-Pin Connector, Black
T28ax
28-Pin Connector, Black
T28b
28-Pin Connector, Black
T28bx
28-Pin Connector, Black
TTVL
Left Front Door Coupling Point
TTVR
Right Front Door Coupling Point
VX4
Driver Exterior Rearview Mirror
VX5
Front Passenger Exterior Rearview Mirror
107
Ground Connection (in Exterior Mirror Wiring Harness), Driver Side
801
Ground Connection 2 (in Exterior Rearview Mirror Wiring Harness), Front Passenger Side
B398
Comfort System CAN Bus, High Connection 2 (in Main Wiring Harness)
B399
Comfort System CAN Bus, High Connection 3 (in Main Wiring Harness)
B407
Comfort System CAN Bus, Low Connection 2 (in Main Wiring Harness)
B408
Comfort System CAN Bus, Low Connection 3 (in Main Wiring Harness)
*
Different Wire Color Possible
*2
From July 2019
*3
Through July 2019
