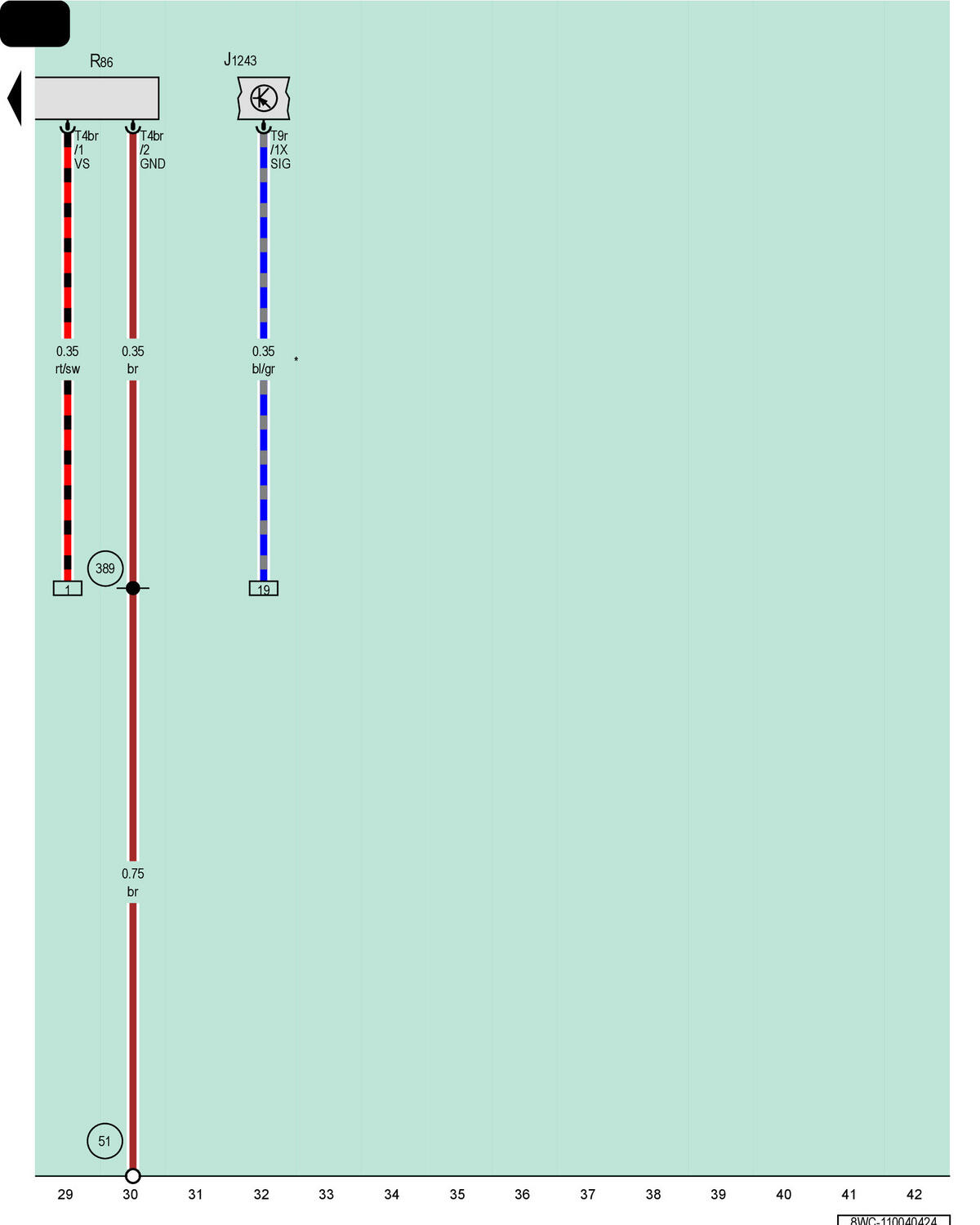

Android Operating System Control Module, Cellular Telephone Amplifier

Courtesy of AUDI OF AMERICA, LLC

J1243

Android Operating System Control Module

R86

Cellular Telephone Amplifier

T4br

4-Pin Connector, Black

T9r

9-Pin Connector, Blue

Ground Connection in Luggage Compartment, Right

389

Ground Connection 24 (in Main Wiring Harness)

For Vehicles with Japan Equipment
