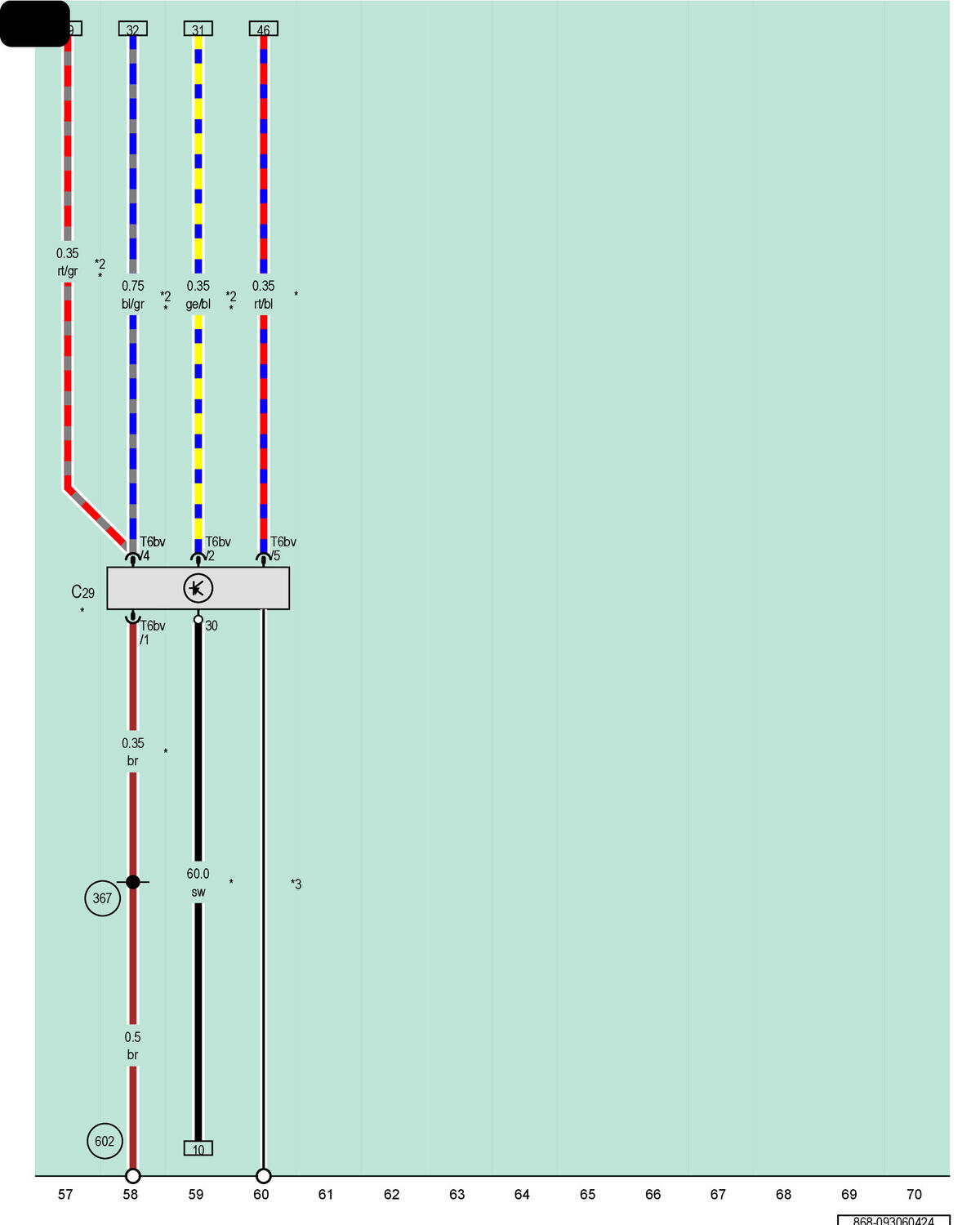

Starter Generator

Courtesy of AUDI OF AMERICA, LLC

C29

Starter Generator

T6bv

6-Pin Connector, Black

367

Ground Connection 2 (in Main Wiring Harness)

602

Ground Connection in Left Front Footwell

*

For Vehicles with 12 V Hybrid System

*2

Refer to Applicable Engine Wiring Diagram

*3

Ground Supply via the Housing
