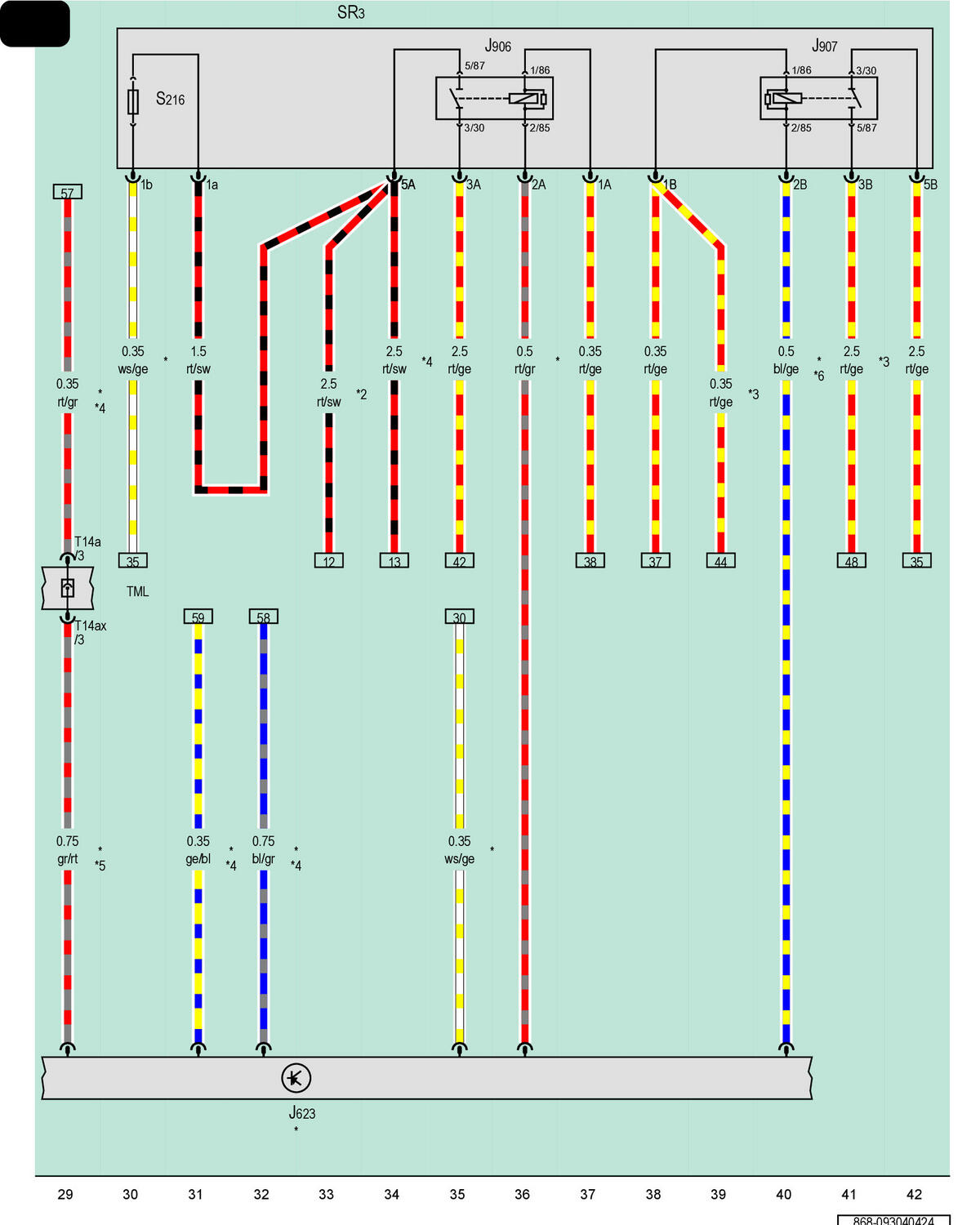

Relay And Fuse Panel 3

Courtesy of AUDI OF AMERICA, LLC

J623

Engine/Motor Control Module

J906

Starter Relay 1

J907

Starter Relay 2

SR3

Relay and Fuse Panel 3, In the Center Plenum Chamber

S216

Fuse (Terminal 50)

T14a

14-Pin Connector, Black

T14ax

14-Pin Connector, Black

TML

Coupling Point in Engine/Motor Compartment, Left

*

Refer to Applicable Engine Wiring Diagram

*2

For Vehicles without 12 V Hybrid System

*3

Refer to Applicable Wiring Diagram for Fuse Positions

*4

For Vehicles with 12 V Hybrid System

*5

Depending on Equipment

*6

Different Wire Color Possible
