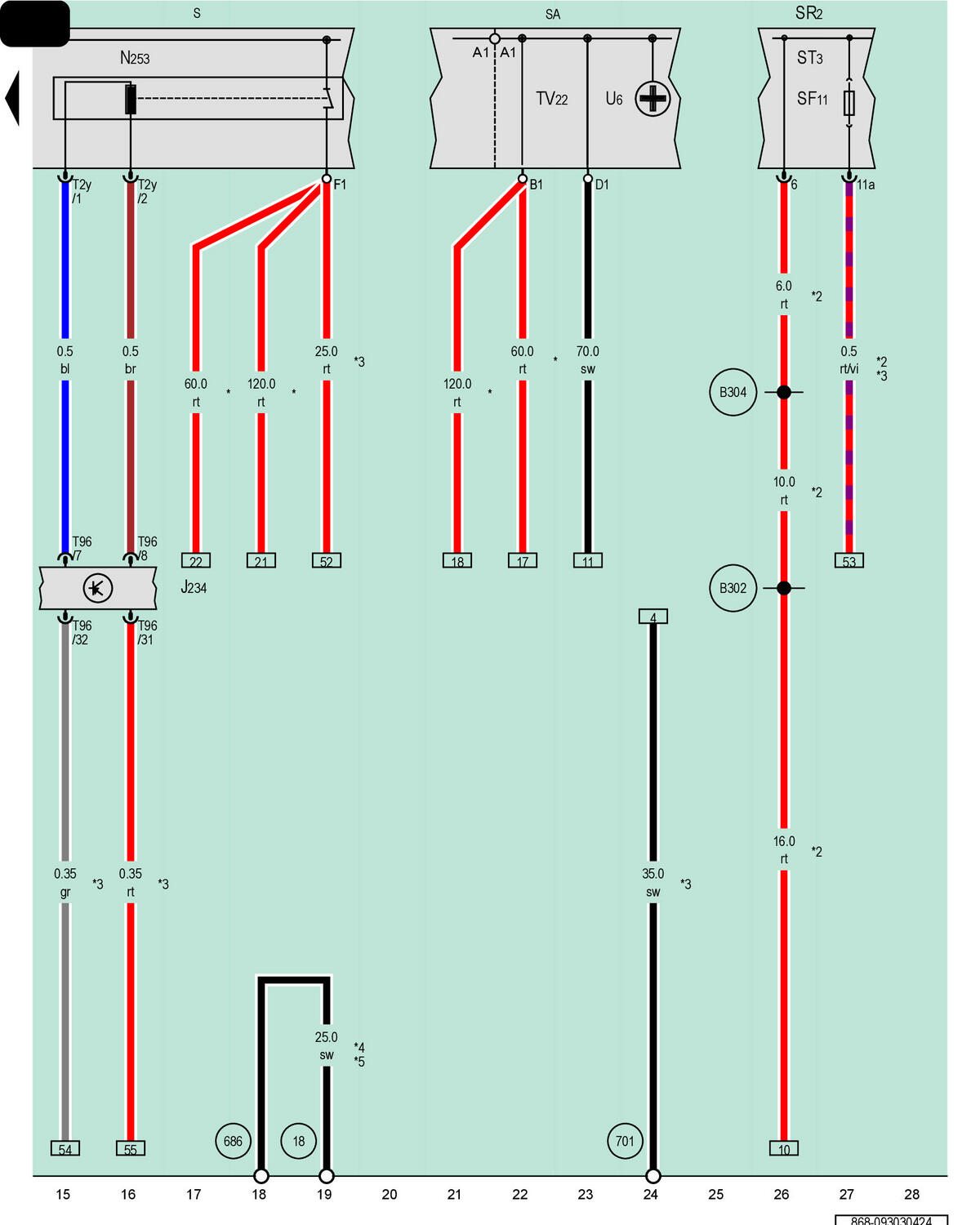

Fuses (On Fuse Panel), Fuse Panel A, Relay And Fuse Panel 2

Courtesy of AUDI OF AMERICA, LLC

J234

Airbag Control Module

N253

Battery Interrupt Igniter

S

Fuses (On Fuse Panel), On the Battery Fuse Panel

SA

Fuse Panel A, In the Engine/Motor Compartment, Right Front

SR2

Relay and Fuse Panel 2, In the Luggage Compartment, Left Rear

ST3

Fuse Panel 3, Brown

SF11

Fuse 11 (On Fuse Panel F)

T2y

2-Pin Connector, Yellow

TV22

Terminal 30 Wire Junction 2

T96

96-Pin Connector, Yellow

U6

Battery Jump Start Terminal

18

Ground Connection on Cylinder Block

686

Ground Connection 2 on Right Front Longitudinal Member

701

Ground Connection in Luggage Compartment

B302

Positive Connection 6 (30) (in Main Wiring Harness)

B304

Positive Connection 8 (30) (in Main Wiring Harness)

*

Depending on Equipment

*2

Refer to Applicable Wiring Diagram for Fuse Positions

*3

For Vehicles with 12 V Hybrid System

*4

35.0 Diameter Possible

*5

Different Wire Color Possible
