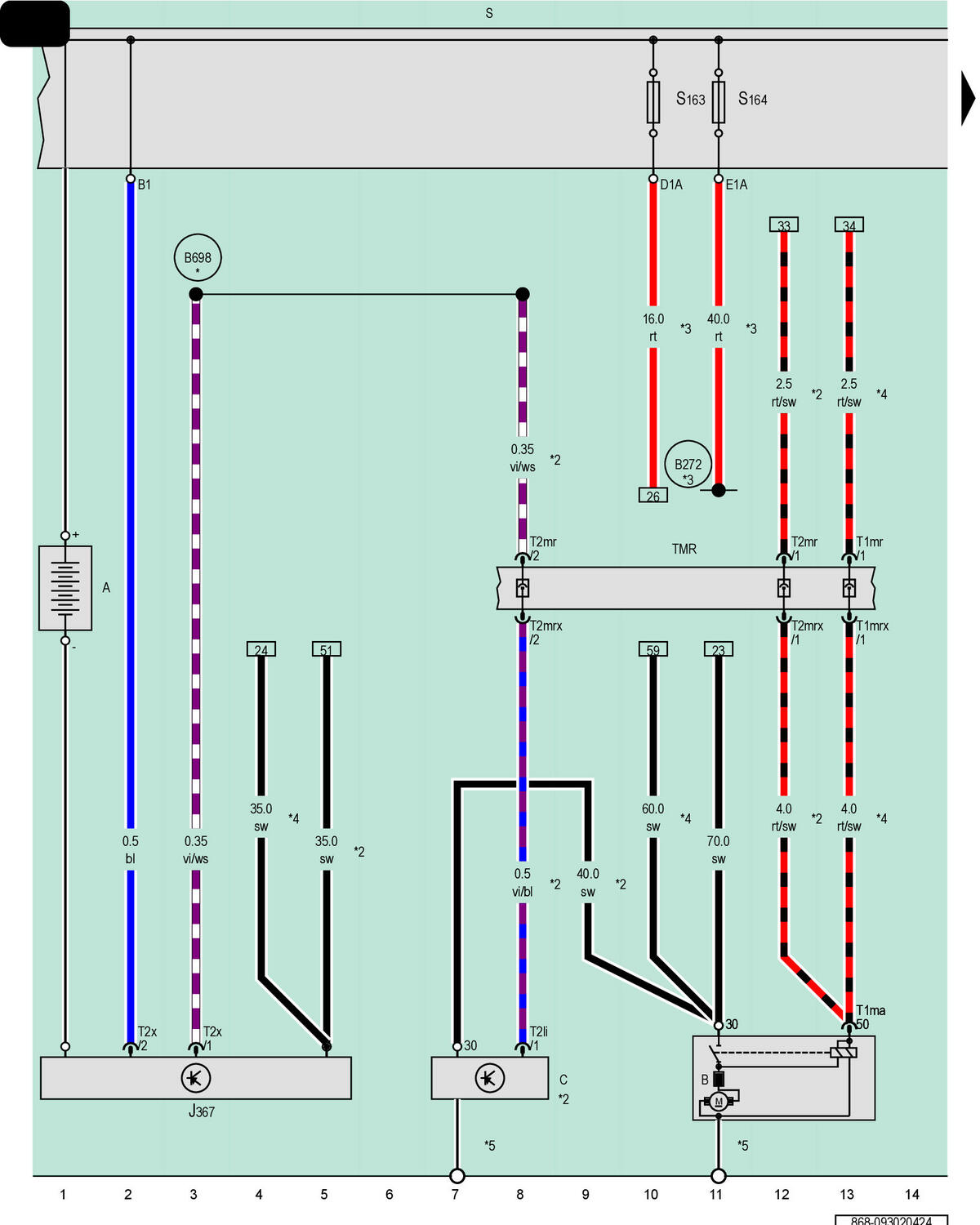

Battery, Starter, Fuses (On Fuse Panel)
A
Battery, In the Luggage Compartment
B
Starter
C
Generator
J367
Battery Monitoring Control Module
S
Fuses (On Fuse Panel), On the Battery Fuse Panel
S163
Fuse 2 (Terminal 30) on Battery Fuse Panel
S164
Fuse 3 (Terminal 30) on Battery Fuse Panel
T1ma
1-Pin Connector, Black
T1mr
1-Pin Connector, Black
T1mrx
1-Pin Connector, Black
T2li
2-Pin Connector, Black
T2mr
2-Pin Connector, Black
T2mrx
2-Pin Connector, Black
T2x
2-Pin Connector, Black
TMR
Coupling Point in Engine/Motor Compartment, Right
B272
Positive Connection (30) (in Main Wiring Harness)
B698
LIN Bus Connection 3 (in Main Wiring Harness)
*
Depending on Equipment
*2
For Vehicles without 12 V Hybrid System
*3
Refer to Applicable Wiring Diagram for Fuse Positions
*4
For Vehicles with 12 V Hybrid System
*5
Ground Supply via the Housing
