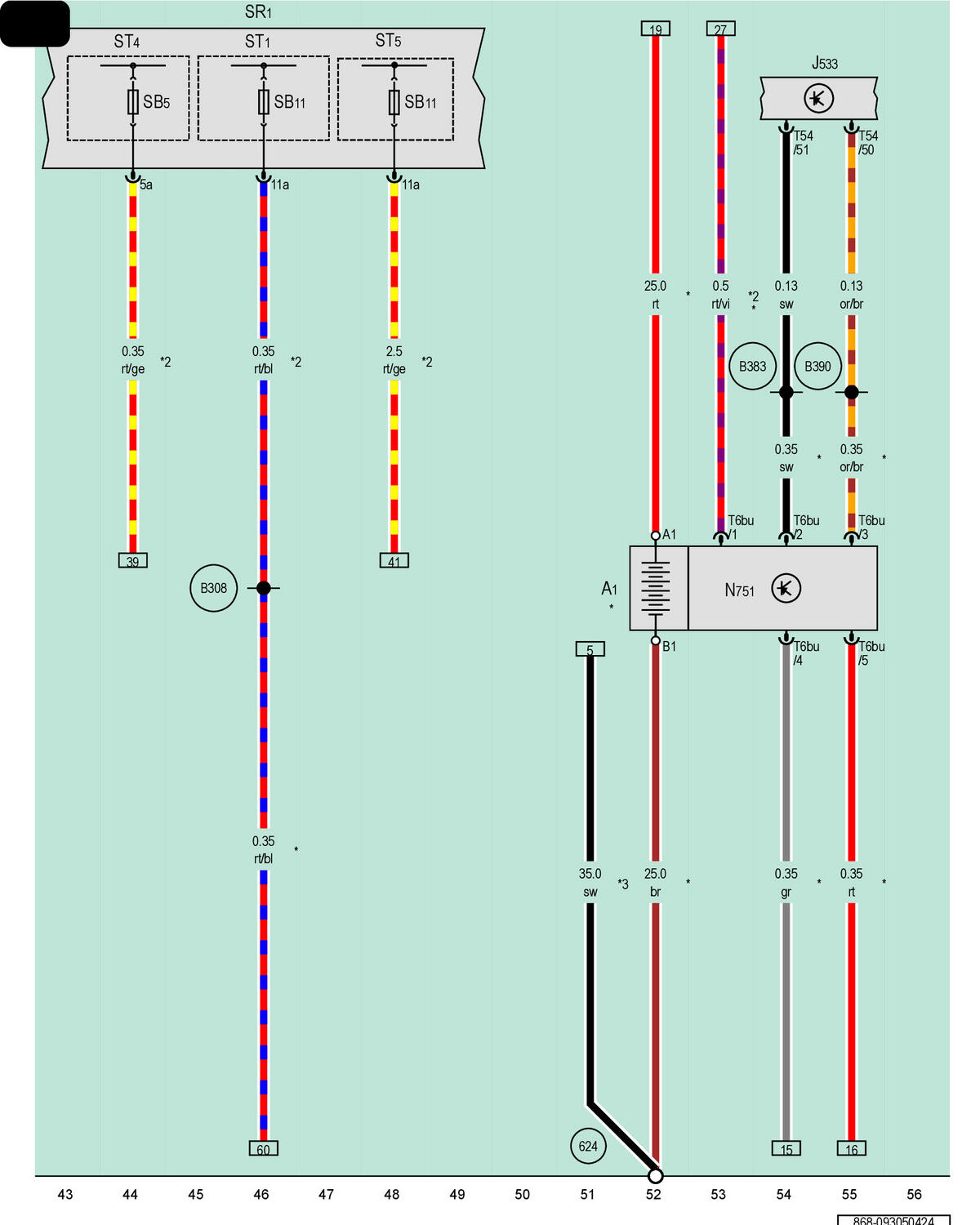

Auxiliary Battery, Data Bus On Board Diagnostic Interface, Relay And Fuse Panel 1

Courtesy of AUDI OF AMERICA, LLC

A1

Auxiliary Battery

J533

Data Bus on Board Diagnostic Interface

N751

Igniter for Battery 2 Interruption

SR1

Relay and Fuse Panel 1, On the Lower Left A-Pillar

ST1

Fuse Panel 1, Brown

ST4

Fuse Panel 4, Black

ST5

Fuse Panel 5, Red

SB5

Fuse 5 (On Fuse Panel B)

SB11

Fuse 11 (On Fuse Panel B)

T6bu

6-Pin Connector, Black

T54

54-Pin Connector, Black

624

Ground Connection near Starter Battery

B308

Positive Connection 12 (30) (in Main Wiring Harness)

B383

Powertrain CAN Bus High Connection 1 (in Main Wiring Harness)

B390

Powertrain CAN Bus Low Connection 1 (in Main Wiring Harness)

*

For Vehicles with 12 V Hybrid System

*2

Refer to Applicable Wiring Diagram for Fuse Positions

*3

For Vehicles without 12 V Hybrid System
