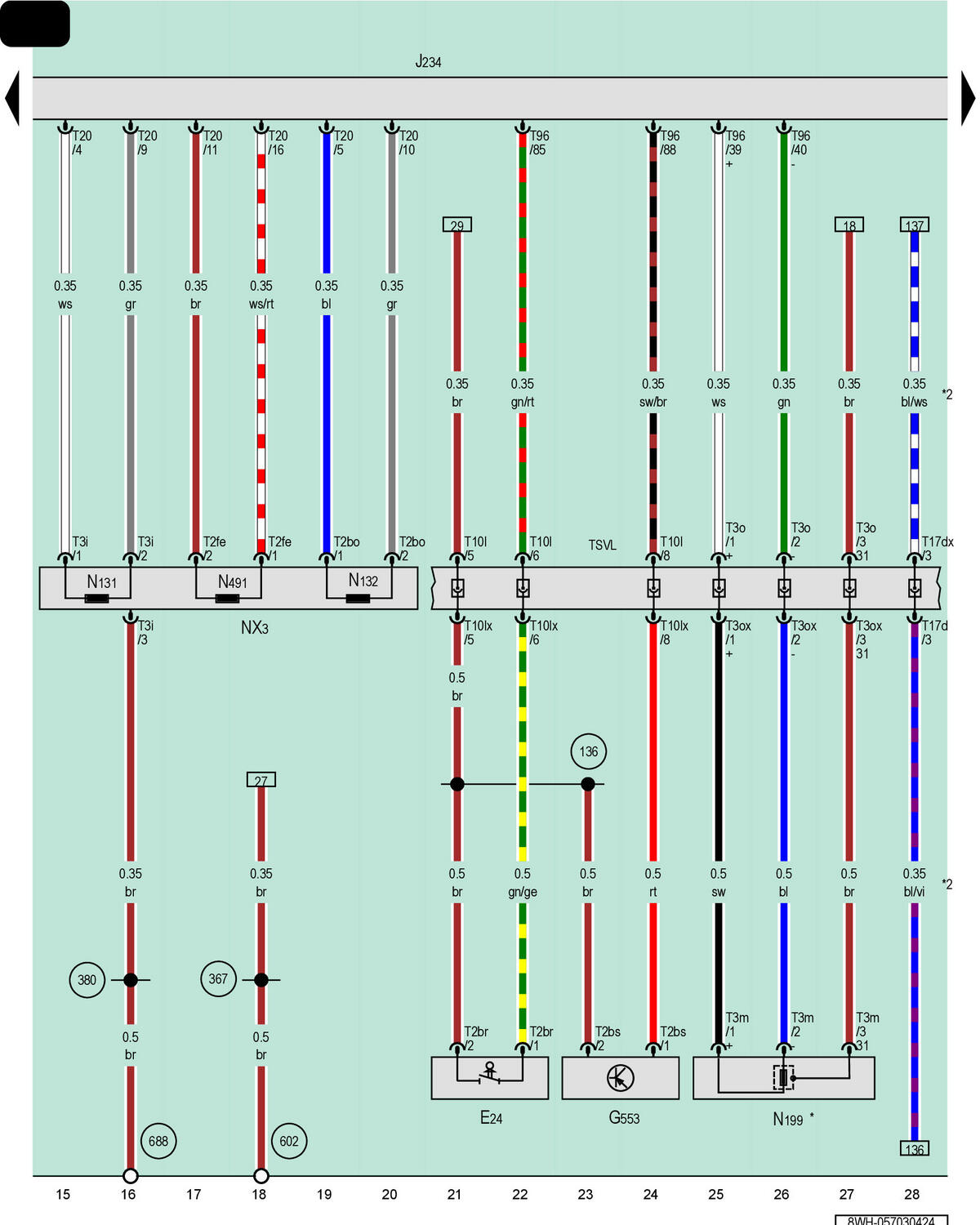

Driver Seat Belt Switch, Driver Seat Position Sensor, Airbag Control Module, Front Passenger Airbag Unit, Driver Thorax Airbag Igniter
E24
Driver Seat Belt Switch
G553
Driver Seat Position Sensor
J234
Airbag Control Module
NX3
Front Passenger Airbag Unit
N131
Front Passenger Airbag Igniter 1
N132
Front Passenger Airbag Igniter 2
N199
Driver Thorax Airbag Igniter
N491
Front Passenger Airbag Release Valve Igniter
T2bo
2-Pin Connector, Yellow
T2br
2-Pin Connector, Black
T2bs
2-Pin Connector, Black
T2fe
2-Pin Connector, Yellow
T3i
3-Pin Connector, Yellow
T3m
3-Pin Connector, Yellow
T3o
3-Pin Connector, Yellow
T3ox
3-Pin Connector, Yellow
T10l
10-Pin Connector, Black
T10lx
10-Pin Connector, Black
T17d
17-Pin Connector, Red
T17dx
17-Pin Connector, Red
T20
20-Pin Connector, Yellow
T96
96-Pin Connector, Yellow
TSVL
Left Front Seat Coupling Station
136
Ground Connection 2 (in Heated Seats Wiring Harness)
367
Ground Connection 2 (in Main Wiring Harness)
380
Ground Connection 15 (in Main Wiring Harness)
602
Ground Connection in Left Front Footwell
688
Ground Connection 2 on Center Tunnel
*
Pre-Wired Component
*2
Depending on Equipment
