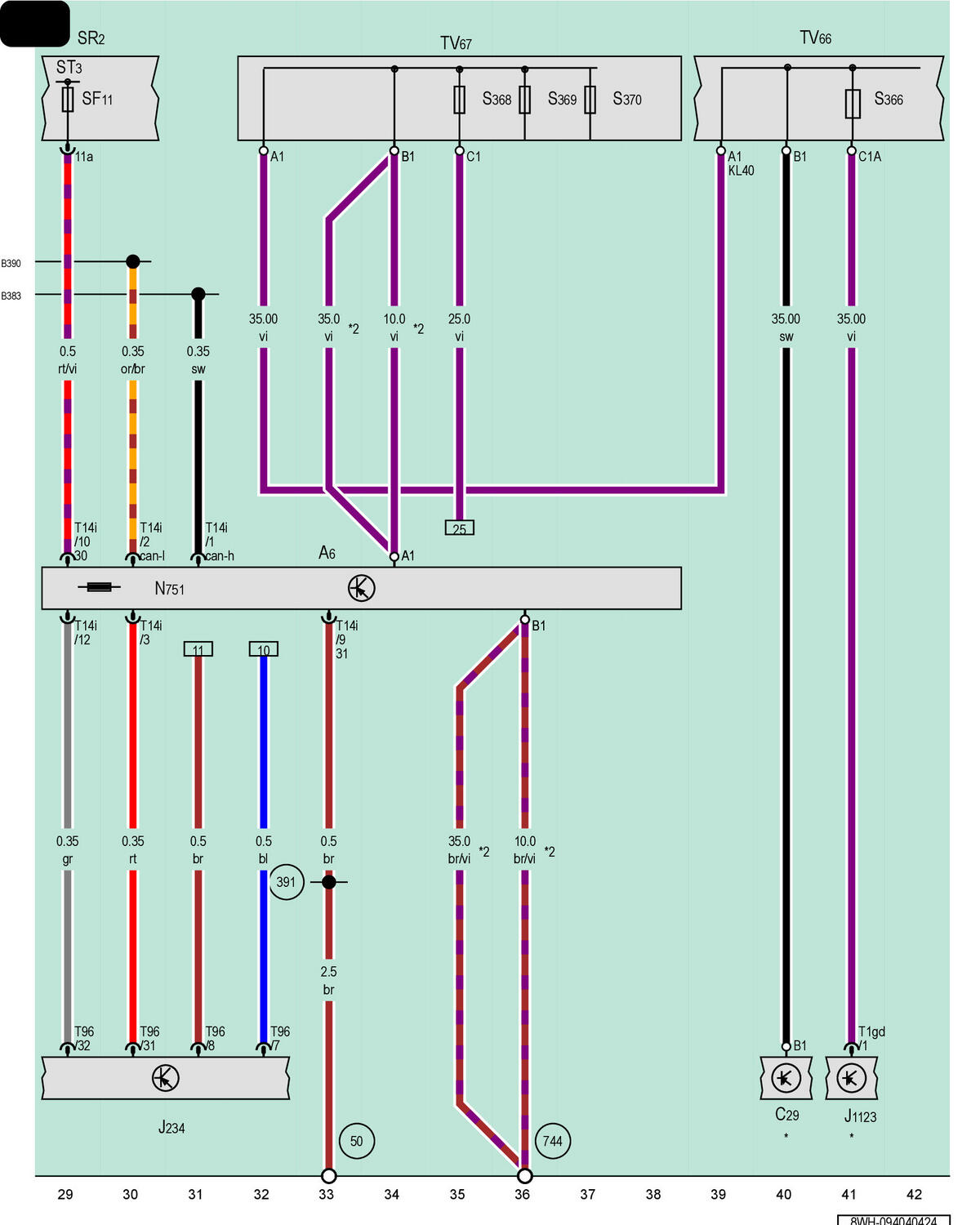

Battery, 48 V, Igniter For Battery 2 Interruption, Terminal 40 Wire Junction, Terminal 40 Wire Junction 2
A6
Battery, 48 V, In the Luggage Compartment
C29
Starter Generator
J234
Airbag Control Module
J1123
Electric Compressor Control Module
N751
Igniter for Battery 2 Interruption
SR2
Relay and Fuse Panel 2
ST3
Fuse Panel 3, Brown
SF11
Fuse 11 (On Fuse Panel F)
S366
Terminal 40 Wire Junction Fuse 1
S368
Terminal 40 Wire Junction 2 Fuse 1
S369
Terminal 40 Wire Junction 2 Fuse 2
S370
Terminal 40 Wire Junction 2 Fuse 3
T1gd
1-Pin Connector
T14i
14-Pin Connector, Black
TV66
Terminal 40 Wire Junction, In the Engine/Motor Compartment
TV67
Terminal 40 Wire Junction 2, In the Luggage Compartment
T96
96-Pin Connector, Yellow
50
Ground Connection in Luggage Compartment, Left
391
Ground Connection 26 (in Main Wiring Harness)
744
Ground Connection in Spare Tire Well
B383
Powertrain CAN Bus High Connection 1 (in Main Wiring Harness)
B390
Powertrain CAN Bus Low Connection 1 (in Main Wiring Harness)
*
Refer to Applicable Battery Wiring Diagram
*2
Depending on Equipment
