Center Console

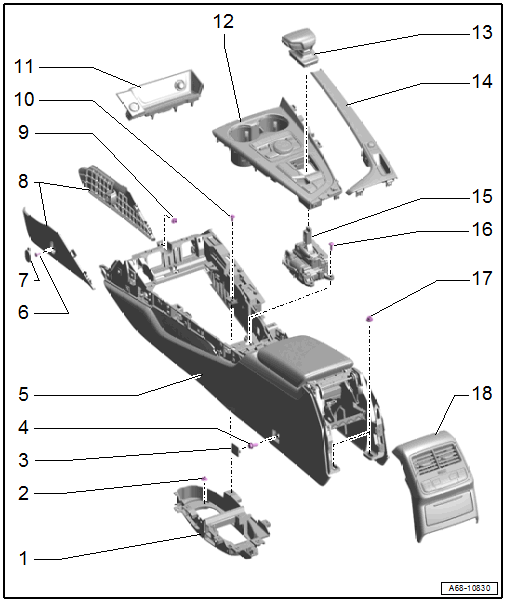

Fig 1: Exploded View Of Center Console

Courtesy of AUDI OF AMERICA, LLC

Center Console Bracket
- Removing and Installing. Refer to CENTER CONSOLE BRACKET, REMOVING AND INSTALLING .
Nut
- Quantity: 4
- 8 Nm
Cap
- Push in the center console
Bolt
- 20 Nm
Center Console
- Removing and Installing. Refer to CENTER CONSOLE, REMOVING AND INSTALLING .
Bolt
- 1.5 Nm
Cap
- Push into the center console trim panel
Center Console Trim Panel
- Front footwell
- Removing and Installing. Refer to FRONT FOOTWELL CENTER CONSOLE TRIM PANEL, REMOVING AND INSTALLING .
Nut
- 3 Nm
Bolt
- Quantity: 4
- 3 Nm
Front Storage Compartment
- Removing and Installing. Refer to FRONT STORAGE COMPARTMENT, REMOVING AND INSTALLING .
- Press on until it engages audibly
Center Console Insert
- Removing and Installing. Refer to CENTER CONSOLE INSERT, REMOVING AND INSTALLING .
- Replace damaged or deformed clips
- Press on until it engages audibly
Selector Lever Handle
- Overview. Refer to OVERVIEW - SHIFT MECHANISM or OVERVIEW - SHIFT MECHANISM
Center Console Decorative Trim
- Removing and Installing. Refer to CENTER CONSOLE DECORATIVE TRIM, REMOVING AND INSTALLING .
- Replace damaged or deformed clips
- Press on until it engages audibly
Shift Mechanism
- Overview. Refer to OVERVIEW - SHIFT MECHANISM or OVERVIEW - SHIFT MECHANISM
Bolt/Nut
- Quantity: 4
- Tightening specification. Refer to OVERVIEW - SHIFT MECHANISM or OVERVIEW - SHIFT MECHANISM .
Nut
- Quantity: 2
- 20 Nm
Rear Center Console Trim
- Removing and Installing. Refer to CENTER CONSOLE REAR TRIM, REMOVING AND INSTALLING .
- Replace damaged or deformed clips
- Press on until it engages audibly
