Overview - Seat Position Sensor

The overview shows the left side of the vehicle as an example

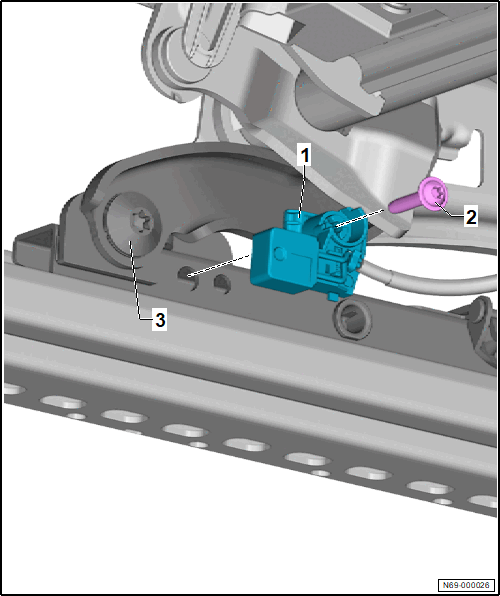

Fig 1: Exploded View Of Seat Position Sensor

Courtesy of AUDI OF AMERICA, LLC

1. Driver Seat Position Sensor -G553- / Front Passenger Seat Position Sensor -G554-
   • Refer to SEAT POSITION SENSOR, REMOVING AND INSTALLING  .
2. Bolt
   • 1.2 Nm
3. Seat Pan Lower Frame
