Front Passenger Airbag Unit With Igniter, Removing And Installing: Removing

-- Position the front passenger seat as far back as possible.

-- Switch off the ignition and electrical equipment.

-- Place the vehicle key and other start authorization systems (such as smartphones) outside of the vehicle interior.

-- Remove the glove compartment. Refer to Glove Compartment, Removing and Installing .

-- Release the connector lock -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connectors -2-.

Conditions

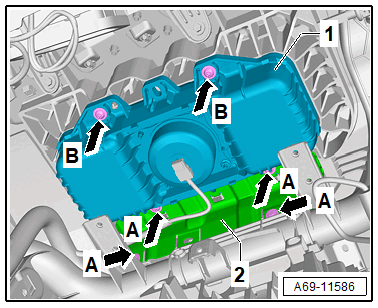

• Secure the airbag unit -1- so that it does not fall down.

-- Remove the bolts -A arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -B arrows-.

-- Remove the airbag unit -2- downward.
