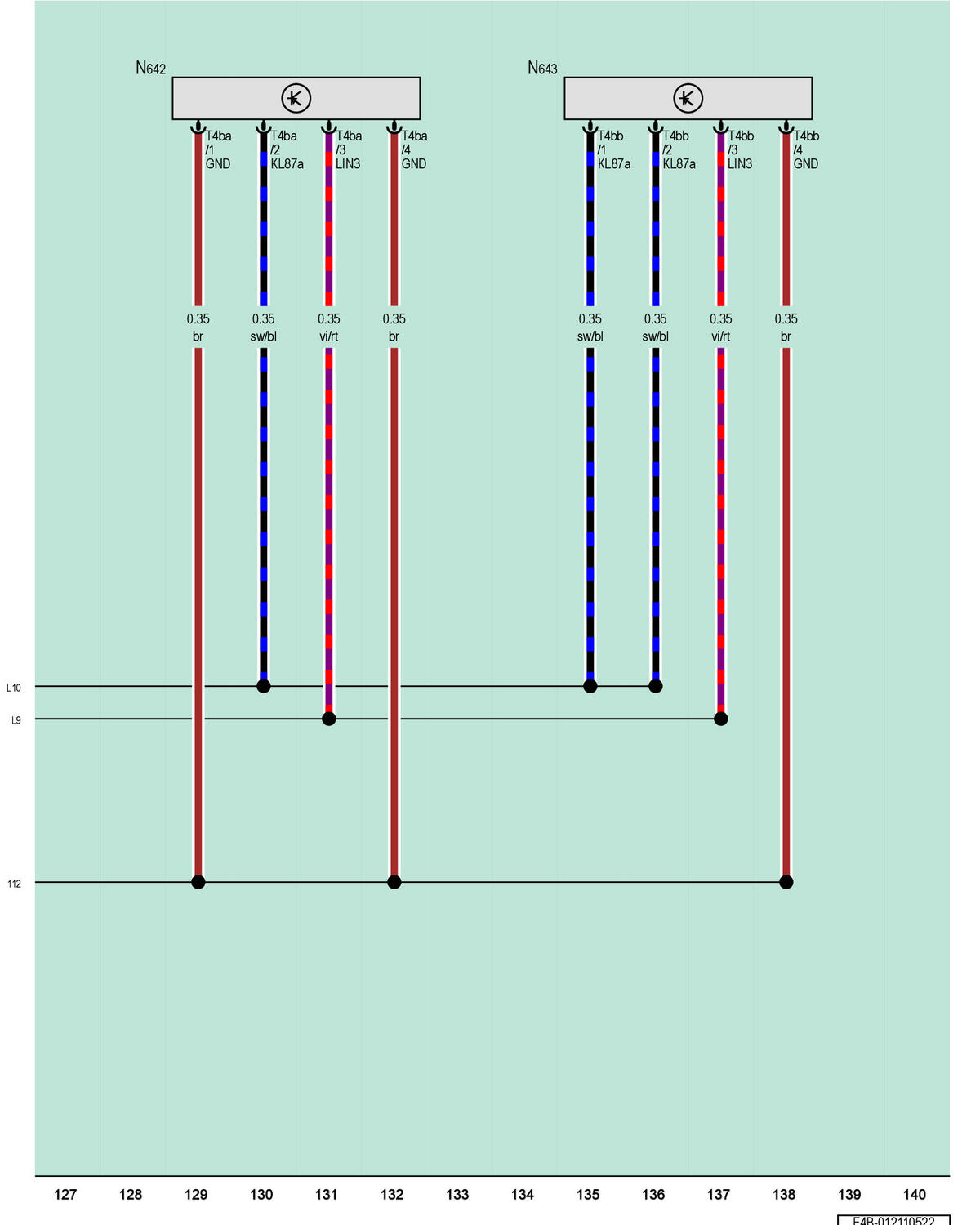

Refrigerant Shut-Off Valve 4, Refrigerant Shut-Off Valve 5

Courtesy of AUDI OF AMERICA, LLC

N642

Refrigerant Shut-Off Valve 4

N643

Refrigerant Shut-Off Valve 5

T4ba

4-Pin Connector, Black

T4bb

4-Pin Connector, Black

112

Ground Connection 2 (in A/C Wiring Harness)

L9

Connection 1 (in A/C System Wiring Harness)

L10

Connection 2 (in A/C System Wiring Harness)
