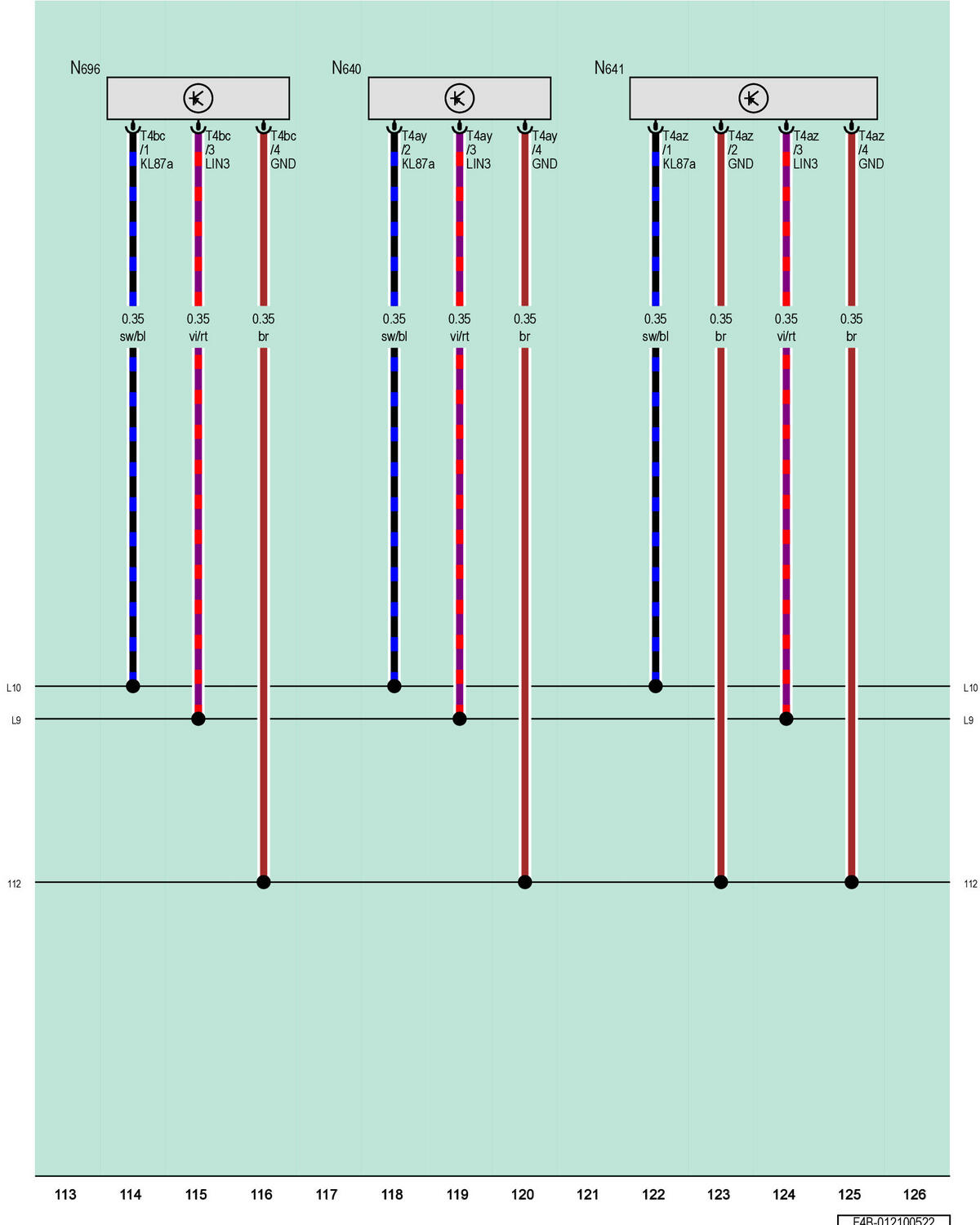

Refrigerant Shut-Off Valve 2, Refrigerant Shut-Off Valve 3, Refrigerant Shut-Off Valve 1

Courtesy of AUDI OF AMERICA, LLC

N640

Refrigerant Shut-Off Valve 2

N641

Refrigerant Shut-Off Valve 3

N696

Refrigerant Shut-Off Valve 1

T4ay

4-Pin Connector, Black

T4az

4-Pin Connector, Black

T4bc

4-Pin Connector, Black

112

Ground Connection 2 (in A/C Wiring Harness)

L9

Connection 1 (in A/C System Wiring Harness)

L10

Connection 2 (in A/C System Wiring Harness)
