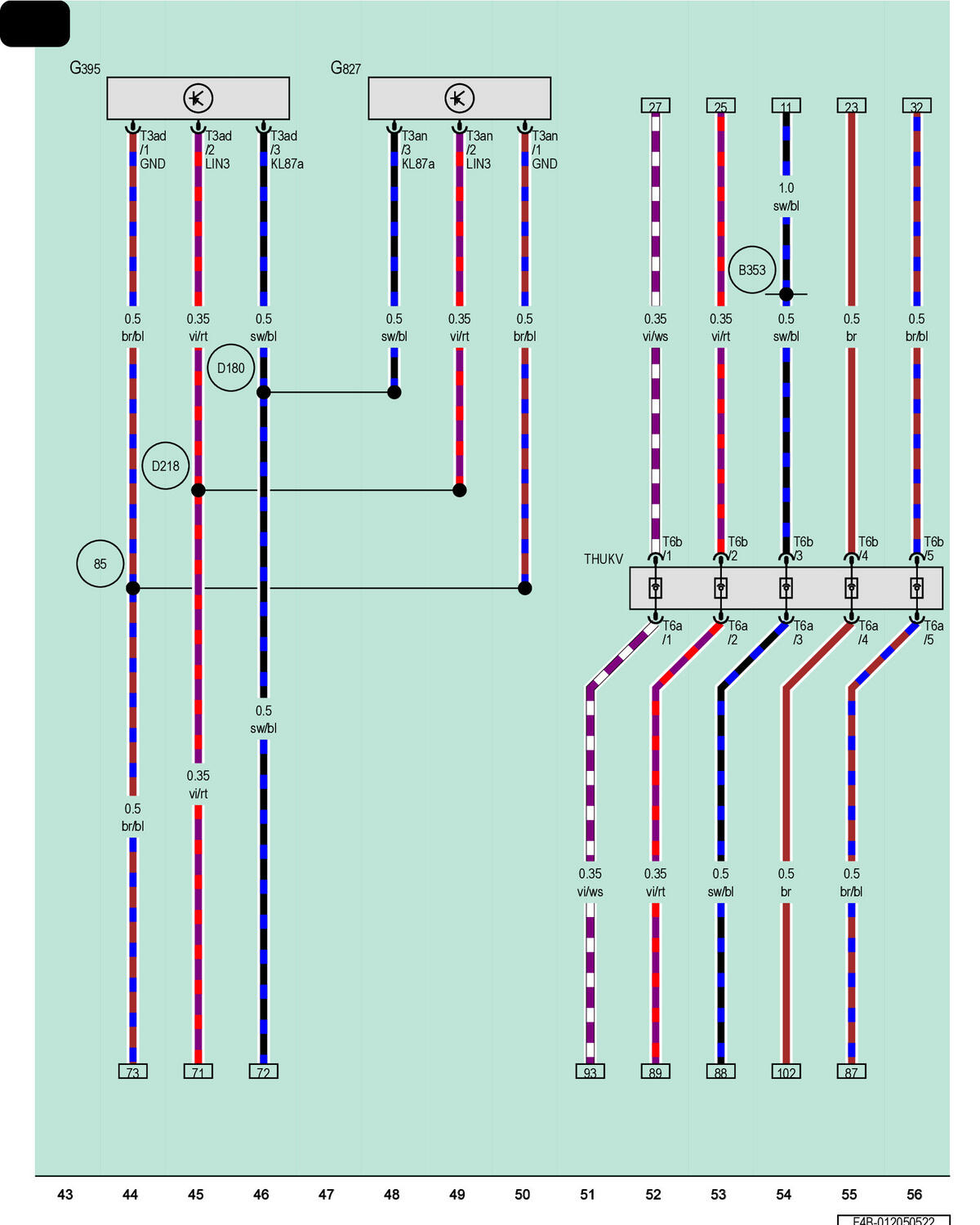

A/C Pressure/Temperature Sensor, A/C Pressure/Temperature Sensor 3

Courtesy of AUDI OF AMERICA, LLC

G395

A/C Pressure/Temperature Sensor

G827

A/C Pressure/Temperature Sensor 3

T3ad

3-Pin Connector, Black

T3an

3-Pin Connector, Brown

T6a

6-Pin Connector, Black

T6b

6-Pin Connector, Black

THUKV

Front Heating and Air Conditioning Coupling Point

85

Ground Connection 1 (in Engine/Motor Compartment Wiring Harness)

B353

Positive Connection 4 (87a) (in Main Wiring Harness)

D180

Connection 87A (in Engine/Motor Compartment Wiring Harness)

D218

Connection 1 (LIN Bus) (in Engine/Motor Compartment Wiring Harness)
