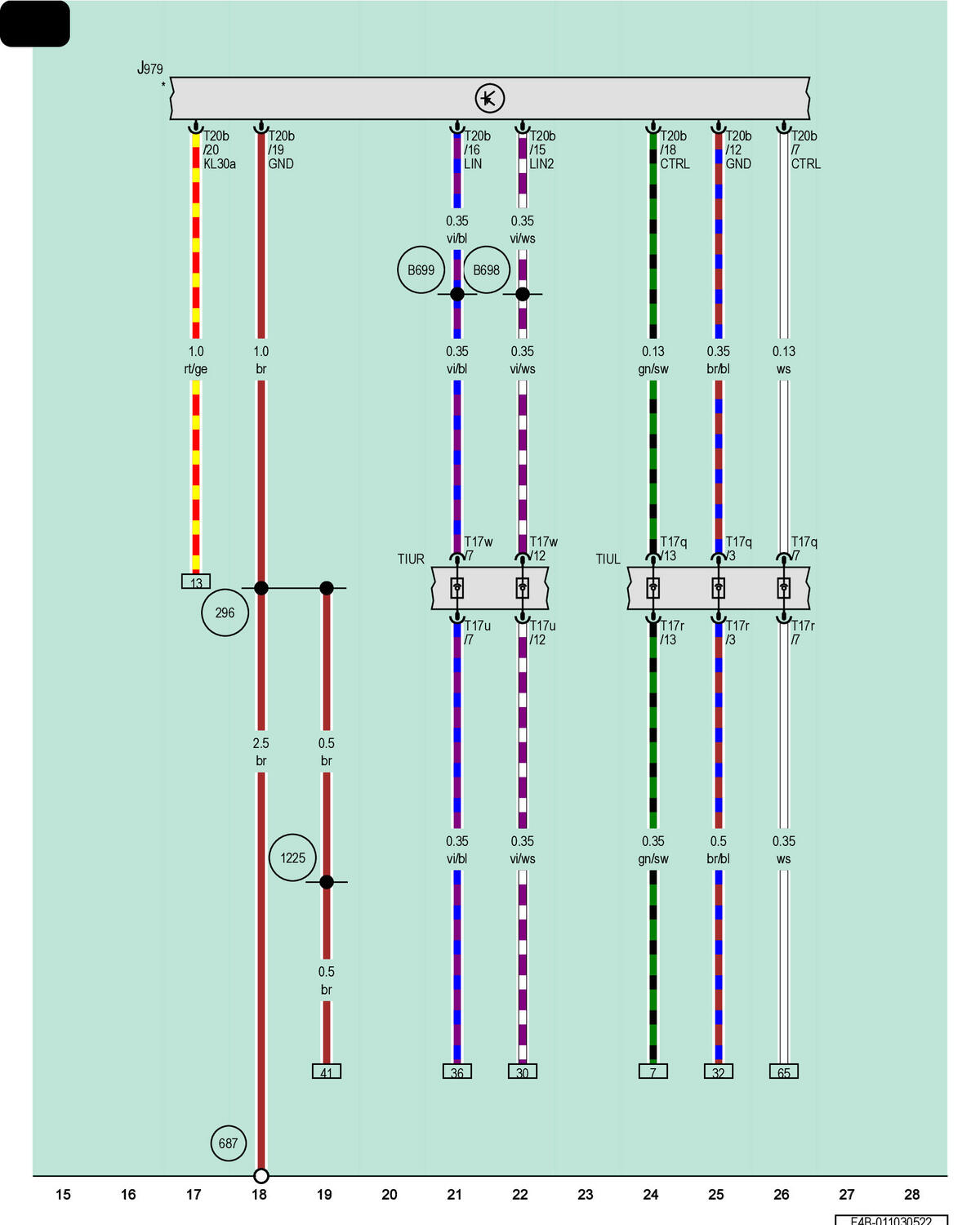

Heating And Air Conditioning Control Module

Courtesy of AUDI OF AMERICA, LLC

J979

Heating and Air Conditioning Control Module

T17q

17-Pin Connector, Red

T17r

17-Pin Connector, Red

T17u

17-Pin Connector, Black

T17w

17-Pin Connector, Black

T20b

20-Pin Connector, Black

TIUL

Coupling Point in Interior, Bottom Left

TIUR

Coupling Point in Interior, Bottom Right

296

Ground Connection 11 (in Interior Wiring Harness)

687

Ground Connection 1 on Center Tunnel

1225

Ground Connection 18 (in Interior Wiring Harness)

B698

LIN Bus Connection 3 (in Main Wiring Harness)

B699

LIN Bus Connection 4 (in Main Wiring Harness)

*

Refer to Applicable A/C System Wiring Diagram
