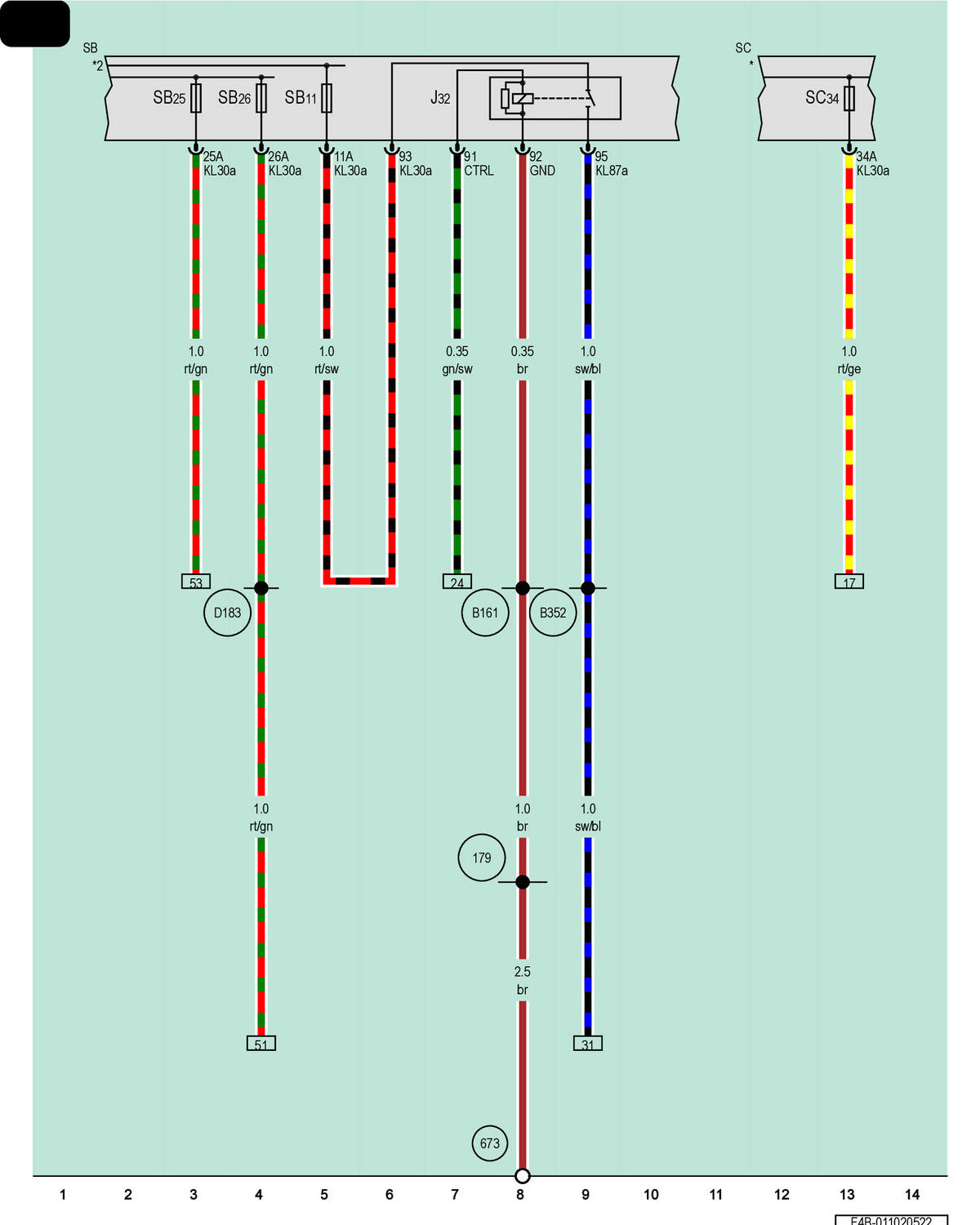

Fuse Panel B, Fuse Panel C
J32
A/C Relay
SB
Fuse Panel B
SB11
Fuse 11 (On Fuse Panel B)
SB25
Fuse 25 (On Fuse Panel B)
SB26
Fuse 26 (On Fuse Panel B)
SC
Fuse Panel C
SC34
Fuse 34 (On Fuse Panel C)
179
Ground Connection (in Left Headlamp Wiring Harness)
673
Ground Connection 3 on Left Front Longitudinal Member
B161
Anti-Theft Alarm System Connection (in Interior Wiring Harness)
B352
Positive Connection 3 (87a) (in Main Wiring Harness)
D183
Connection 4 (87A) (in Engine/Motor Compartment Wiring Harness)
*
Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior
*2
Refer to Applicable Wiring Diagram for Fuses in Engine/Motor Compartment
