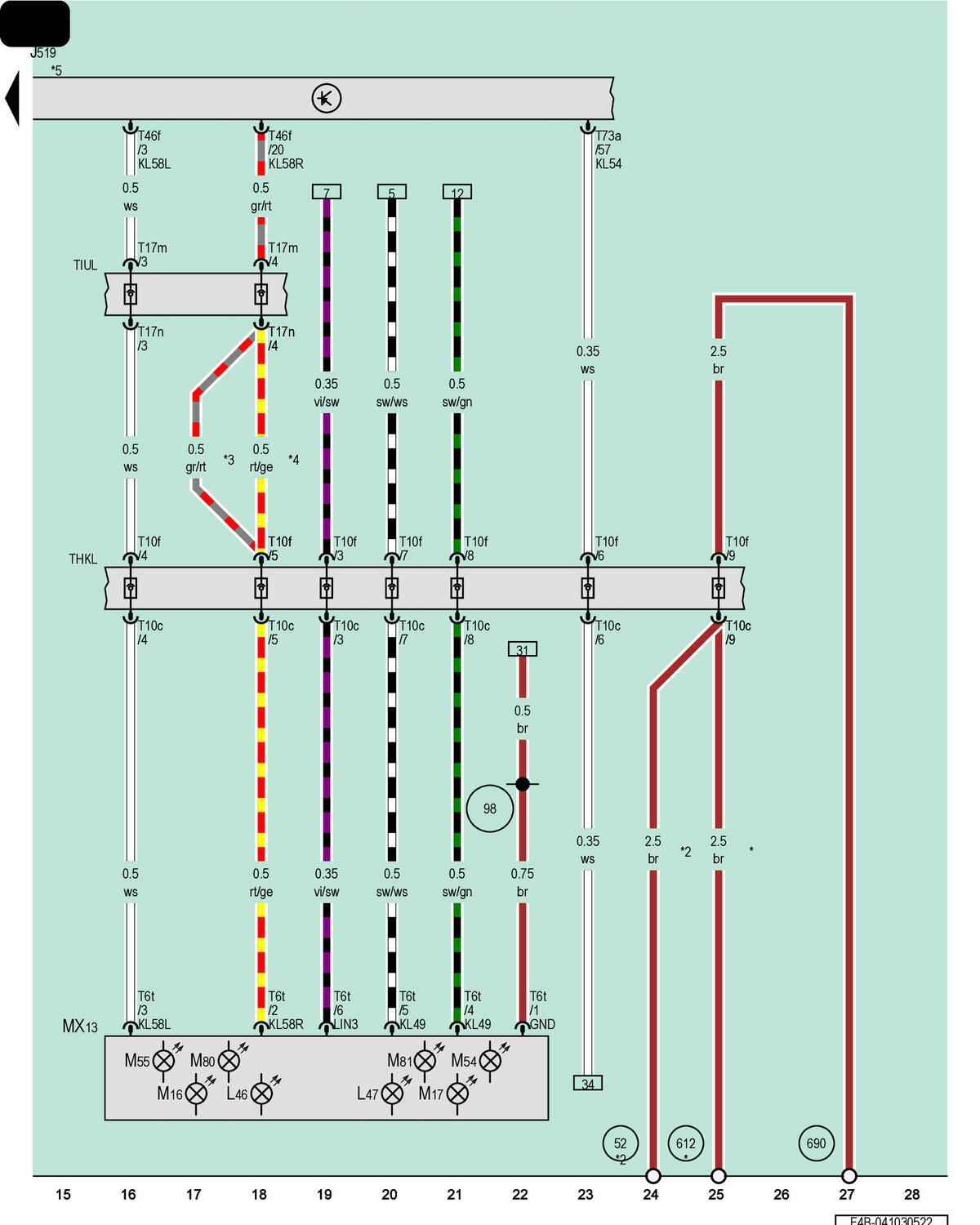

Vehicle Electrical System Control Module, Center Tail Lamp
J519
Vehicle Electrical System Control Module
L46
Left Rear Fog Lamp Bulb
L47
Right Rear Fog Lamp Bulb
MX13
Center Tail Lamp
M16
Left Back-Up Lamp Bulb
M17
Right Back-Up Lamp Bulb
M54
Right Tail Lamp Bulb 3
M55
Left Tail Lamp Bulb 3
M80
Left Rear Turn Signal Bulb 2
M81
Right Rear Turn Signal Bulb 2
T6t
6-Pin Connector, Red
T10c
10-Pin Connector, Black
T10f
10-Pin Connector, Black
T17m
17-Pin Connector, Black
T17n
17-Pin Connector, Black
T46f
46-Pin Connector, Black
T73a
73-Pin Connector, Black
THKL
Coupling Point on Rear Lid, Left
TIUL
Coupling Point in Interior, Bottom Left
52
Ground Connection in Rear Lid, Left
98
Ground Connection (in Rear Lid Wiring Harness)
612
Ground Connection in Rear Lid, Center
690
Ground Connection on Roof Frame, Center Rear
*
Hatchback
*2
Sportback
*3
From July 2022
*4
Through July 2022
*5
Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior
