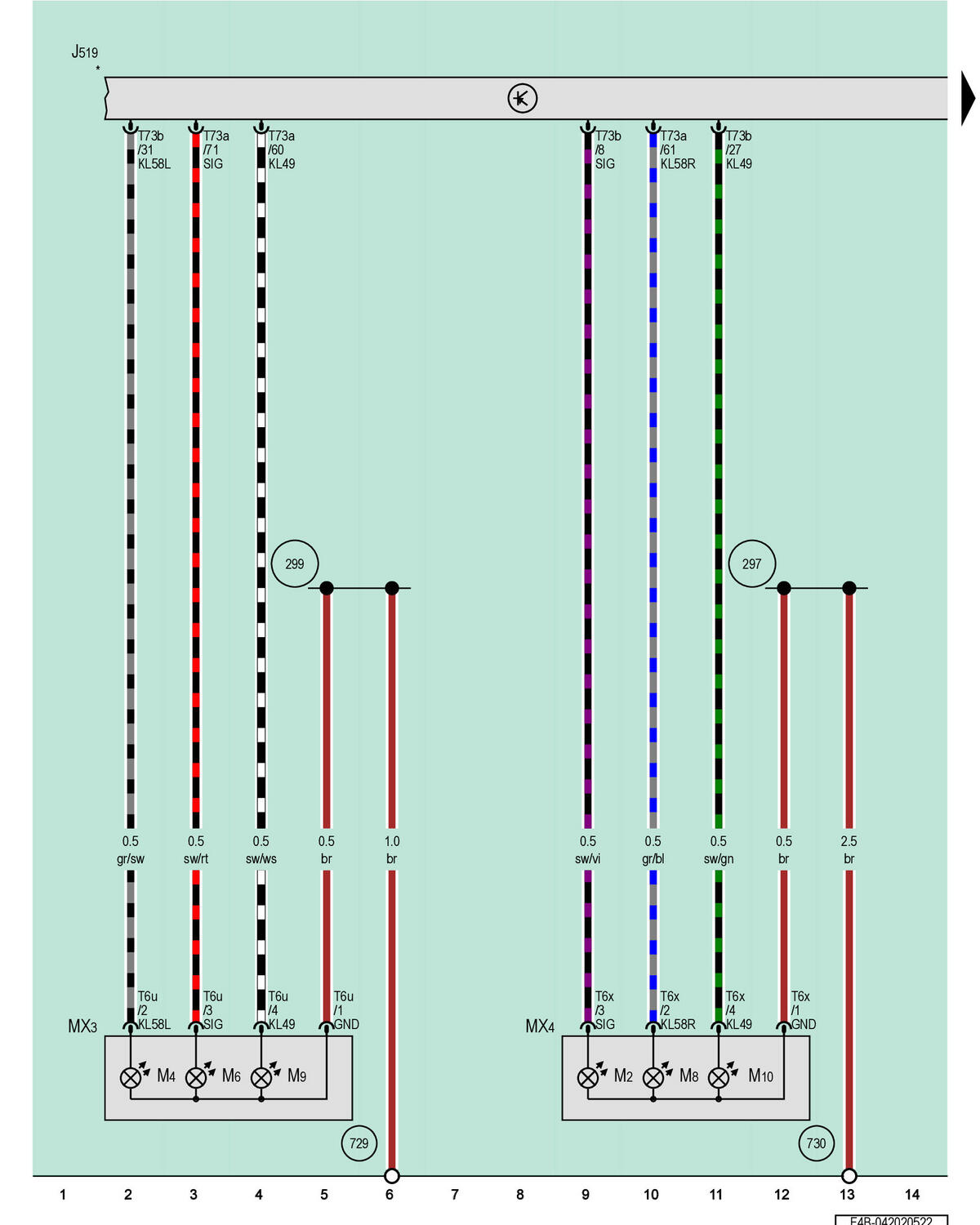

Vehicle Electrical System Control Module, Left Tail Lamp, Right Tail Lamp
J519
Vehicle Electrical System Control Module
M2
Right Tail Lamp Bulb
MX3
Left Tail Lamp
MX4
Right Tail Lamp
M4
Left Tail Lamp Bulb
M6
Left Rear Turn Signal Bulb
M8
Right Rear Turn Signal Bulb
M9
Left Brake Lamp Bulb
M10
Right Brake Lamp Bulb
T6u
6-Pin Connector, Green
T6x
6-Pin Connector, Green
T73a
73-Pin Connector, Black
T73b
73-Pin Connector, Black
297
Ground Connection 12 (in Interior Wiring Harness)
299
Ground Connection 14 (in Interior Wiring Harness)
729
Ground Connection on Left Rear Wheel Housing
730
Ground Connection 1 on Right Rear Wheel Housing
*
Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior
