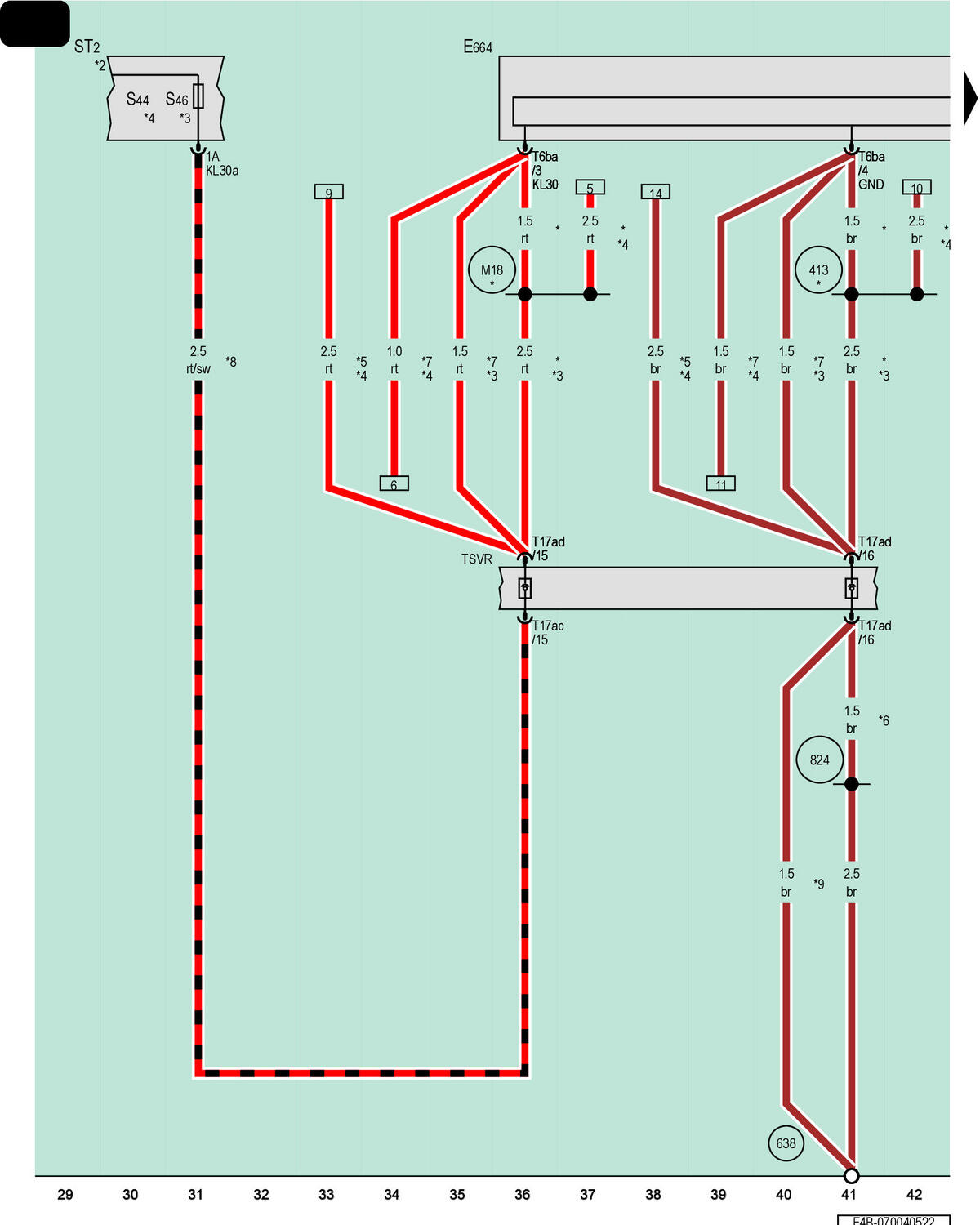

Front Passenger Seat Switch Module, Fuse Panel 2
E664
Front Passenger Seat Switch Module
ST2
Fuse Panel 2
S44
Driver Power Seat Adjustment Circuit Breaker 1
S46
Front Passenger Power Seat Adjustment Circuit Breaker 1
T6ba
6-Pin Connector, Black
T17ac
17-Pin Connector, Red
T17ad
17-Pin Connector, Red
TSVR
Right Front Seat Coupling Station
413
Ground Connection 4 (in Seat Adjustment Wiring Harness)
638
Ground Connection on Right A-Pillar
824
Ground Connection 17 (in Interior Wiring Harness)
M18
Connection 1 (in Front Passenger Seat Adjustment Wiring Harness)
*
For Vehicles with Power Passenger Seat Adjuster
*2
Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior
*3
For LHD Vehicles
*4
For RHD Vehicles
*5
For Vehicles with Power Driver Seat Adjuster
*6
Through November 2021
*7
For Vehicles Without a Power Front Passenger Seat
*8
Diameter Depends on Equipment
*9
From November 2021
