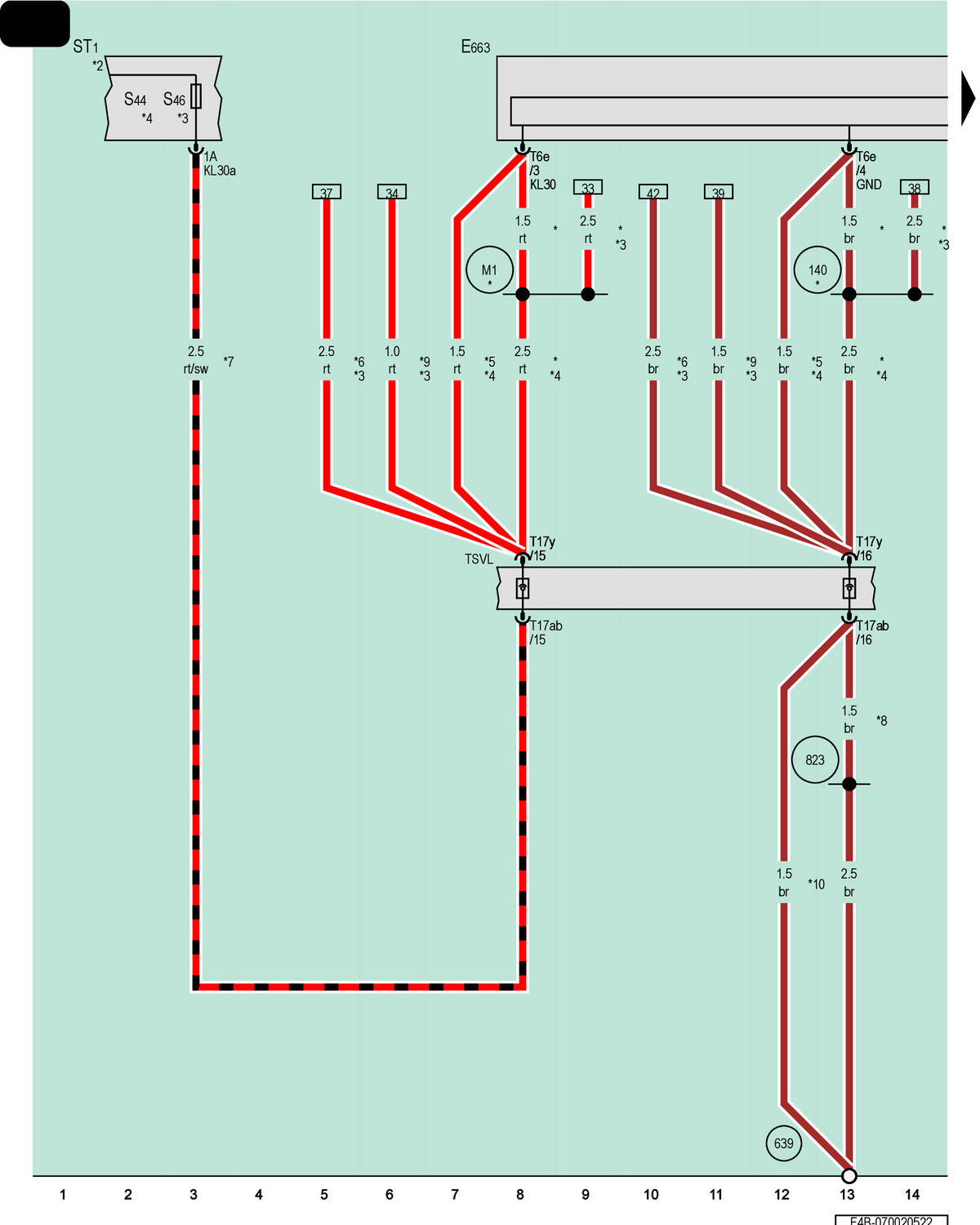

Driver Seat Switch Module, Fuse Panel 1
E663
Driver Seat Switch Module
ST1
Fuse Panel 1
S44
Driver Power Seat Adjustment Circuit Breaker 1
S46
Front Passenger Power Seat Adjustment Circuit Breaker 1
T6e
6-Pin Connector, Black
T17ab
17-Pin Connector, Red
T17y
17-Pin Connector, Red
TSVL
Left Front Seat Coupling Station
140
Ground Connection 2 (in Seat Adjustment Wiring Harness)
639
Ground Connection on Left A-Pillar
823
Ground Connection 16 (in Interior Wiring Harness)
M1
Positive Connection 1 (30) (in Seat Adjustment Wiring Harness)
*
For Vehicles with Power Driver Seat Adjuster
*2
Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior
*3
For RHD Vehicles
*4
For LHD Vehicles
*5
For Vehicles Without a Power Driver Seat
*6
For Vehicles with Power Passenger Seat Adjuster
*7
Diameter Depends on Equipment
*8
Through November 2021
*9
For Vehicles Without a Power Front Passenger Seat
*10
From November 2021
