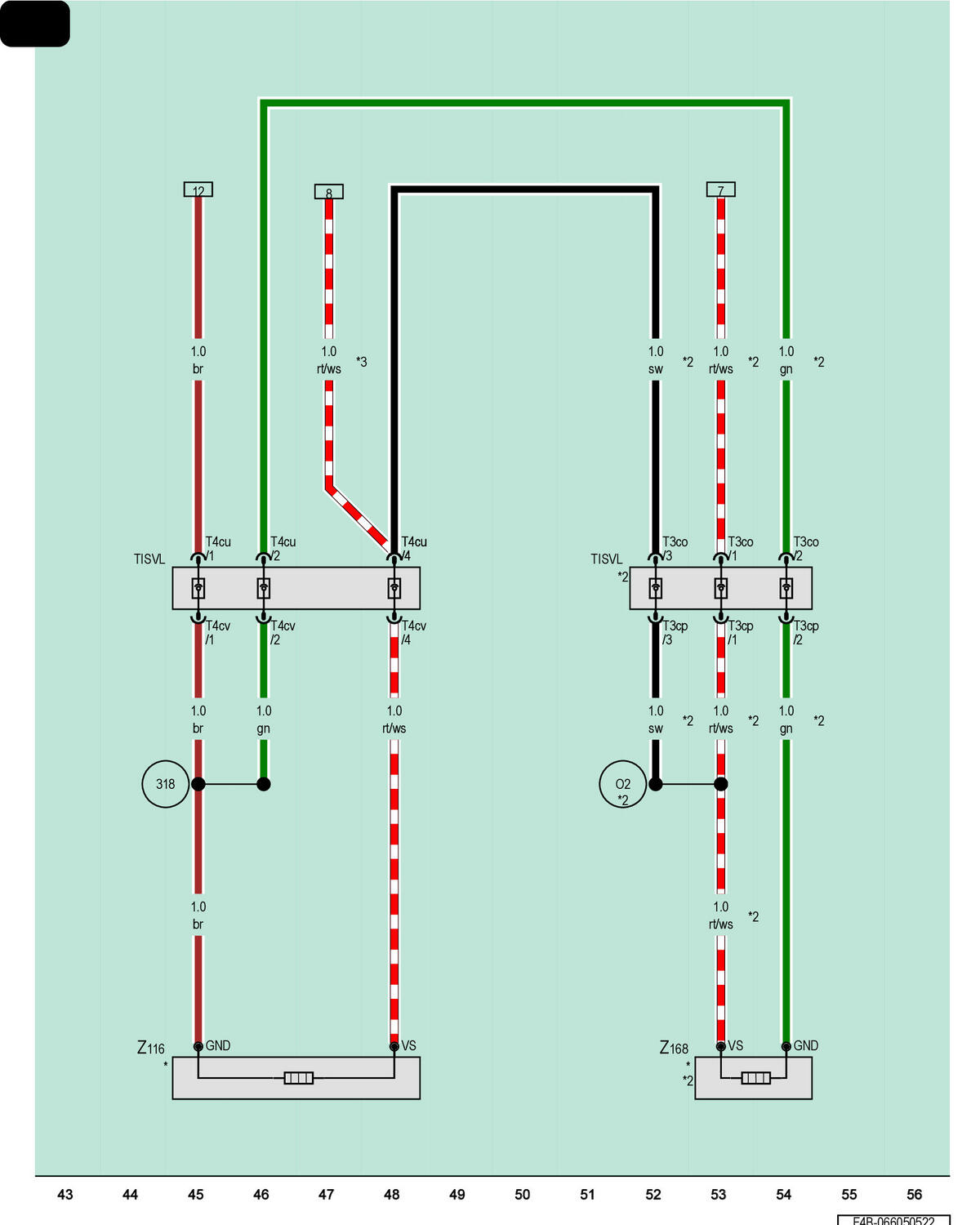

Left Front Seat Heated Backrest, Left Front Seat Extension Heating Element

Courtesy of AUDI OF AMERICA, LLC

T3co

3-Pin Connector, Black

T3cp

3-Pin Connector, Black

T4cu

4-Pin Connector, Black

T4cv

4-Pin Connector, Black

TISVL

Coupling Station in Left Front Seat

Z116

Left Front Seat Heated Backrest

Z168

Left Front Seat Extension Heating Element

318

Ground Connection 4 (in Heated Seats Wiring Harness)

O2

Positive Connection (15) (in Heated Seats Wiring Harness)

*

Pre-Wired Component

*2

For Vehicles with Seat Depth Adjustment

*3

For Vehicles Without Seat Depth Adjuster
