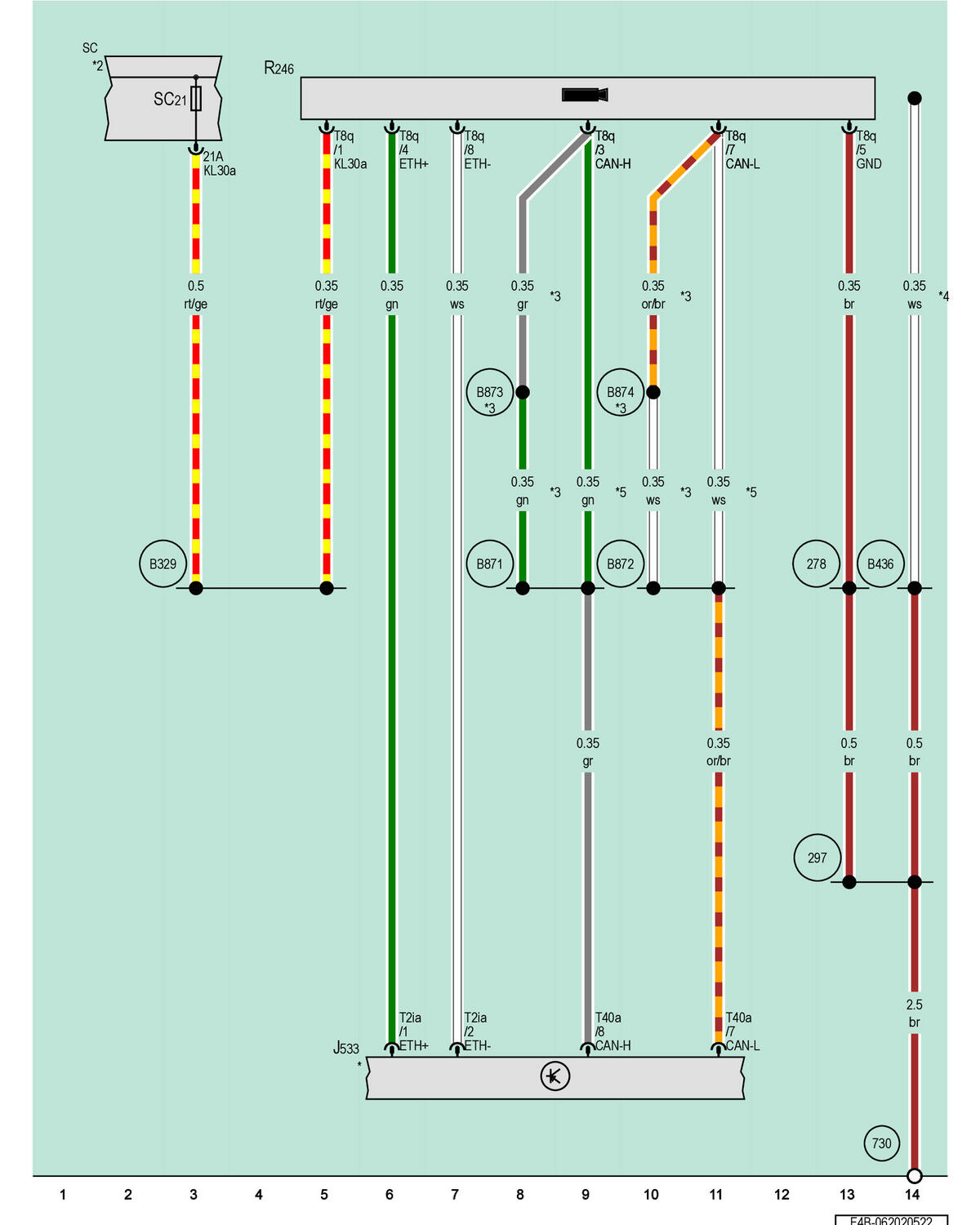

Data Bus On Board Diagnostic Interface, Rear Peripheral Camera, Fuse Panel C
J533
Data Bus on Board Diagnostic Interface
R246
Rear Peripheral Camera
SC
Fuse Panel C
SC21
Fuse 21 (On Fuse Panel C)
T2ia
2-Pin Connector, White
T8q
8-Pin Connector, Black
T40a
40-Pin Connector, Black
278
Ground Connection 4 (in Interior Wiring Harness)
297
Ground Connection 12 (in Interior Wiring Harness)
730
Ground Connection 1 on Right Rear Wheel Housing
B329
Positive Connection 15 (30a) (in Main Wiring Harness)
B436
Shielding Connection 3 (in Main Wiring Harness)
B871
Driver Assistance Systems CAN Bus High Connection 4 (in Main Wiring Harness)
B872
Driver Assistance Systems CAN Bus Low Connection 4 (in Main Wiring Harness)
B873
Driver Assistance Systems CAN Bus High Connection 5 (in Main Wiring Harness)
B874
Driver Assistance Systems CAN Bus Low Connection 5 (in Main Wiring Harness)
*
Refer to Applicable Wiring Diagram for Data Bus Networking
*2
Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior
*3
From June 2021
*4
Open Wire End
*5
Through June 2021
