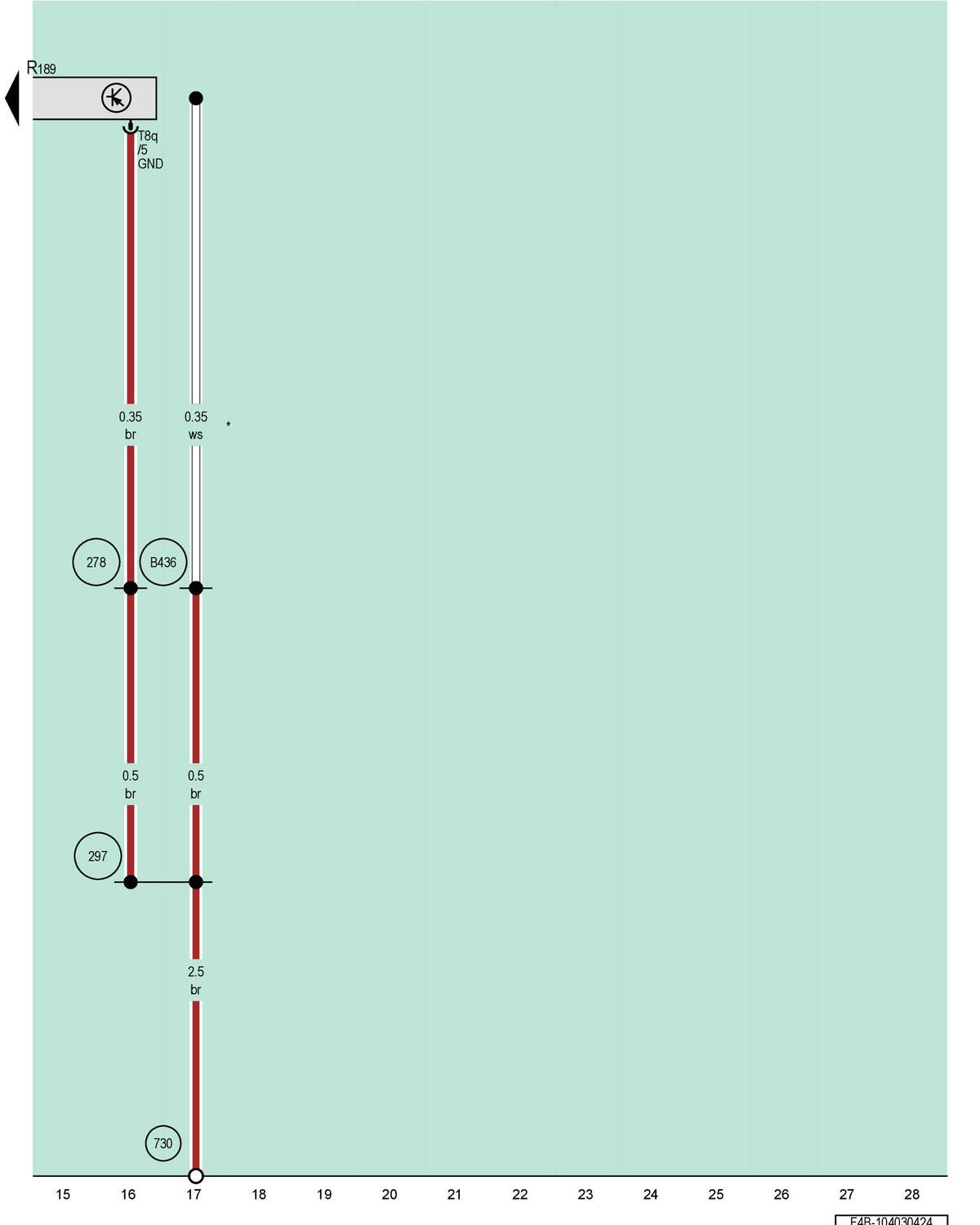

Rearview Camera

GWWF4B-104030424Courtesy of AUDI OF AMERICA, LLC

R189

Rearview Camera

T8q

8-Pin Connector, Black

278

Ground Connection 4 (in Interior Wiring Harness)

297

Ground Connection 12 (in Interior Wiring Harness)

730

Ground Connection 1 on Right Rear Wheel Housing

B436

Connection 3 (Shield) Inside Main Wiring Harness

*

Open Wire End
