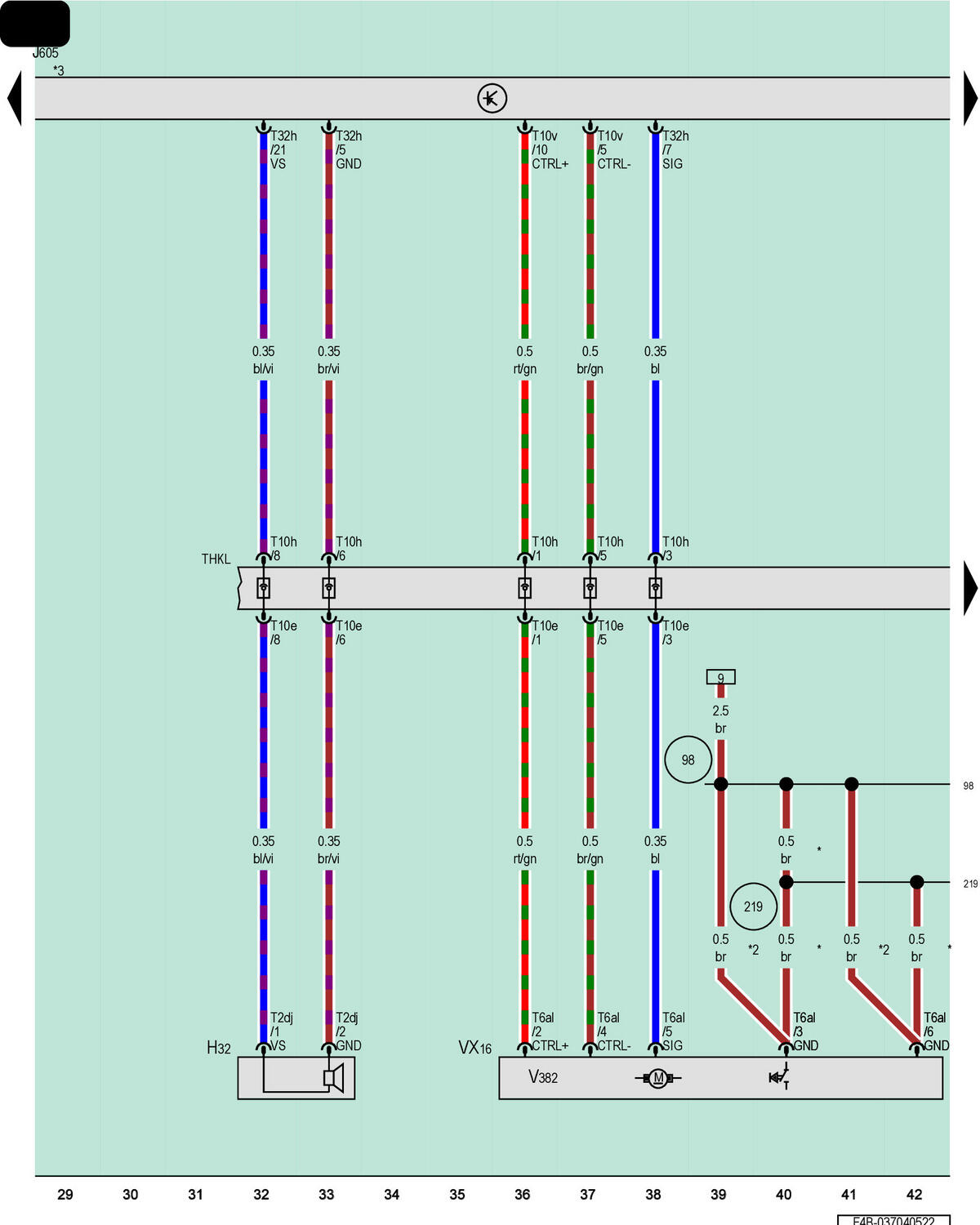

Rear Lid Warning Buzzer, Rear Lid Control Module, Rear Lid Closing Aid

Courtesy of AUDI OF AMERICA, LLC

H32

Rear Lid Warning Buzzer

J605

Rear Lid Control Module

T2dj

2-Pin Connector, Black

T6al

6-Pin Connector, Black

T10e

10-Pin Connector, Blue

T10h

10-Pin Connector, Blue

T10v

10-Pin Connector, Black

T32h

32-Pin Connector, Black

THKL

Coupling Point on Rear Lid, Left

VX16

Rear Lid Closing Aid

V382

Rear Lid Closing Aid Motor

98

Ground Connection (in Rear Lid Wiring Harness)

219

Ground Connection 2 (in Rear Lid Wiring Harness)

*

Hatchback

*2

Sportback

*3

Refer to Applicable Driver Door Wiring Diagram
