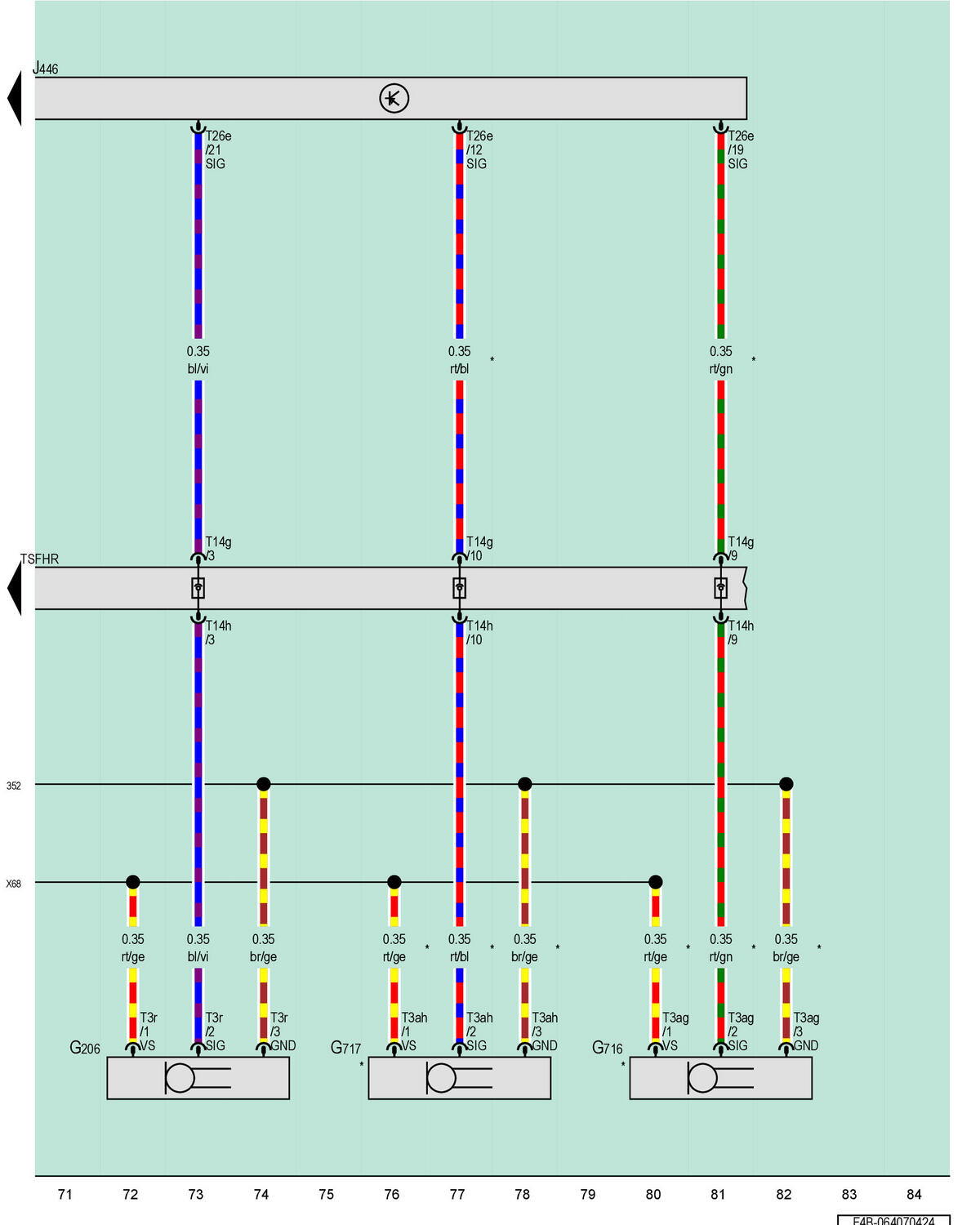

Right Rear Parking Aid Sensor, Left Rear Parallel Parking Assistance Sensor, Right Rear Parallel Parking Assistance Sensor, Parking Aid Control Module
G206
Right Rear Parking Aid Sensor
G716
Left Rear Parallel Parking Assistance Sensor
G717
Right Rear Parallel Parking Assistance Sensor
J446
Parking Aid Control Module
T3ag
3-Pin Connector, Gray
T3ah
3-Pin Connector, Gray
T3r
3-Pin Connector, Black
T14g
14-Pin Connector, Black
T14h
14-Pin Connector, Black
T26e
26-Pin Connector, Black
TSFHR
Coupling Point on Right Rear Bumper
352
Parking Aid Ground Connection (in Rear Bumper Wiring Harness)
X68
Parking Aid Connection (in Rear Bumper Wiring Harness)
*
For Vehicles with Parallel Parking Assistance
