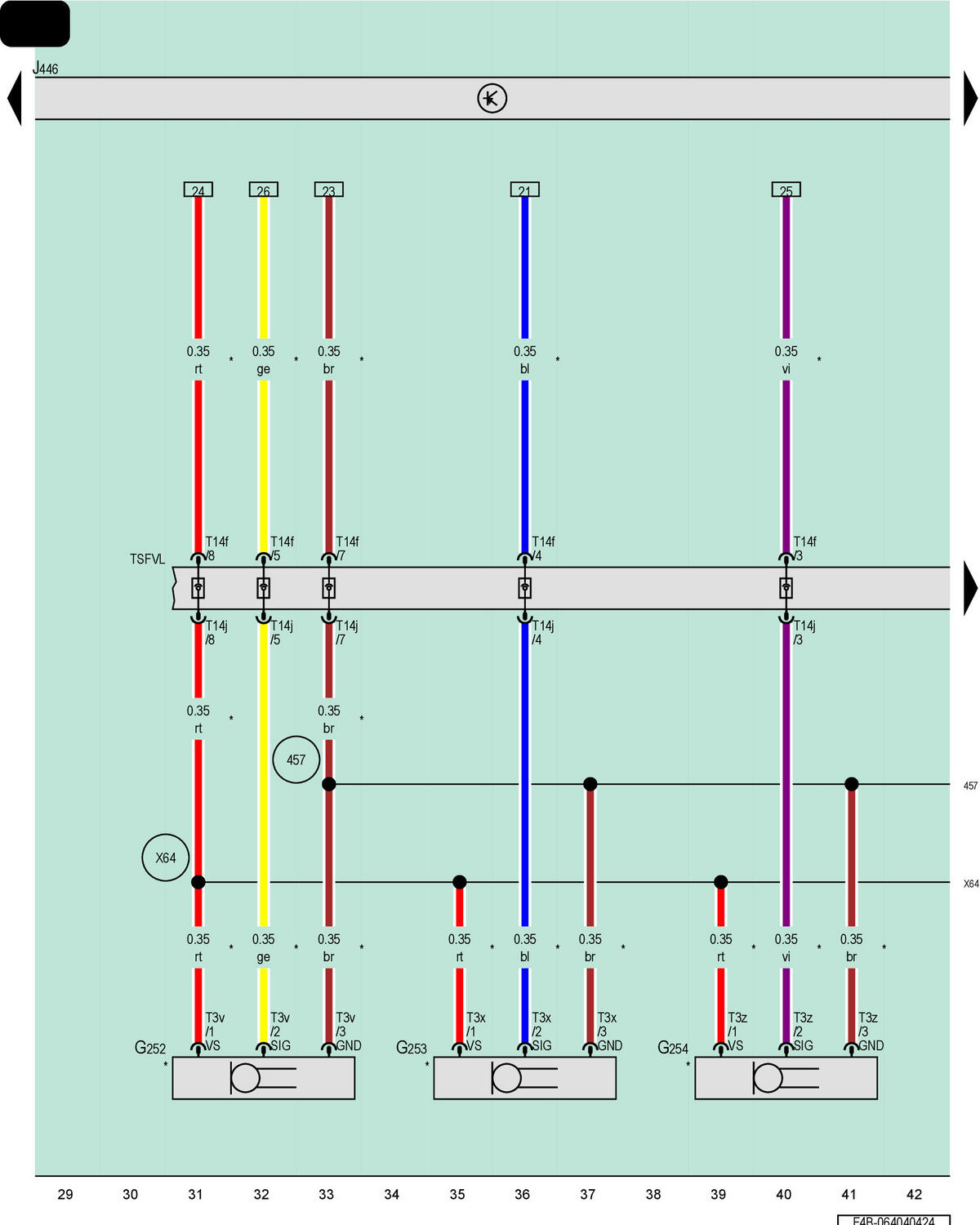

Right Front Parking Aid Sensor, Right Front Center Parking Aid Sensor, Left Front Center Parking Aid Sensor, Parking Aid Control Module

Courtesy of AUDI OF AMERICA, LLC

G252

Right Front Parking Aid Sensor

G253

Right Front Center Parking Aid Sensor

G254

Left Front Center Parking Aid Sensor

J446

Parking Aid Control Module

T3v

3-Pin Connector, Black

T3x

3-Pin Connector, Black

T3z

3-Pin Connector, Black

T14f

14-Pin Connector, Brown

T14j

14-Pin Connector, Brown

TSFVL

Coupling Point on Left Front Bumper

457

Ground Connection 2 (in Front Bumper Wiring Harness)

X64

Positive Connection (30a) (in Siren Wiring Harness)

*

Front Parking Aid
