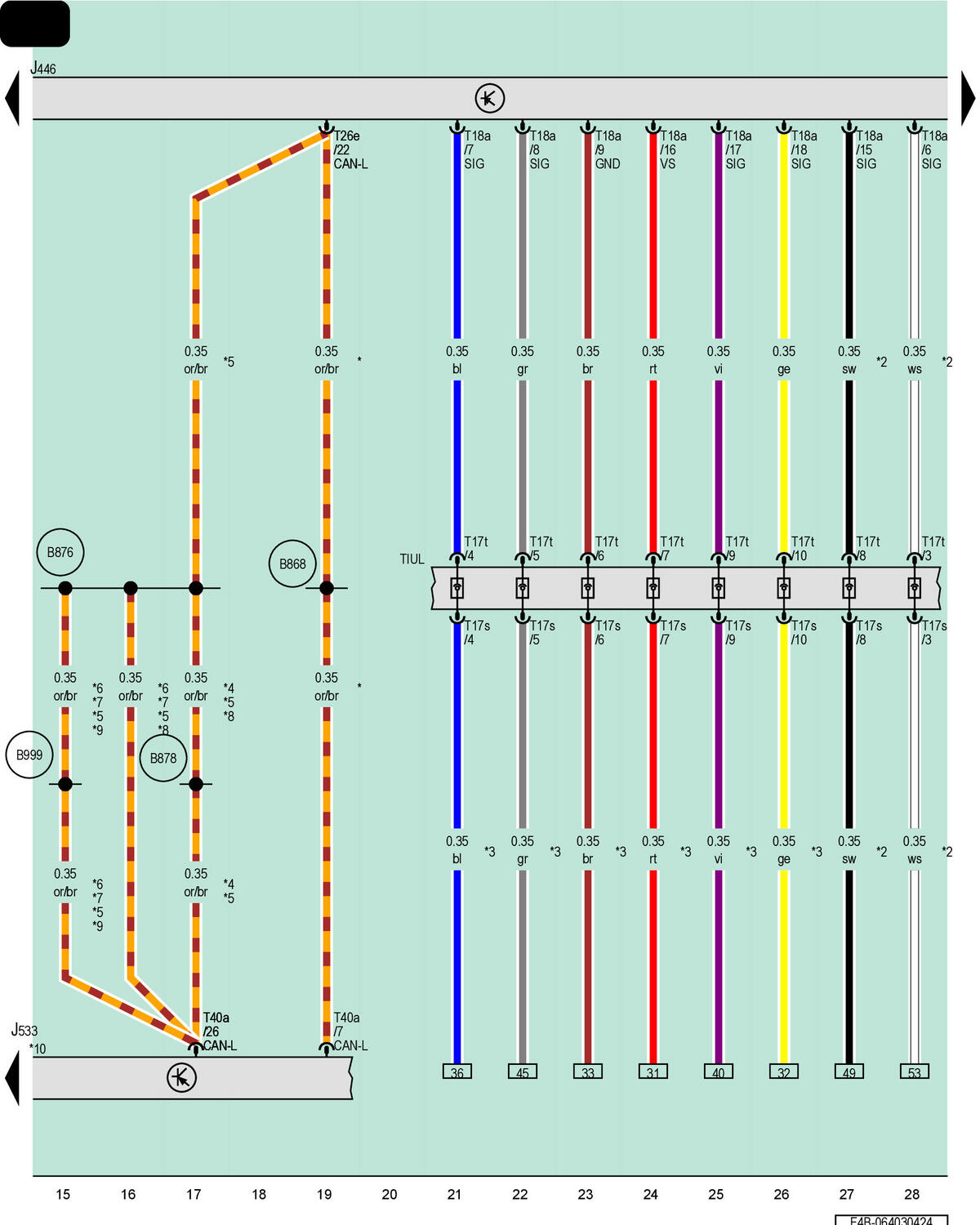

Parking Aid Control Module, Data Bus On Board Diagnostic Interface
J446
Parking Aid Control Module
J533
Data Bus on Board Diagnostic Interface
T17s
17-Pin Connector, Blue
T17t
17-Pin Connector, Blue
T18a
18-Pin Connector, Black
T26e
26-Pin Connector, Black
T40a
40-Pin Connector, Black
TIUL
Coupling Point in Interior, Bottom Left
B868
Driver Assistance Systems CAN Bus Low Connection 2 (in Main Wiring Harness)
B876
Driver Assistance Systems CAN Bus Low Connection 6 (in Main Wiring Harness)
B878
Driver Assistance Systems CAN Bus Low Connection 7 (in Main Wiring Harness)
B999
Driver Assistance Systems CAN Bus Low Connection 9 (in Main Wiring Harness)
*
For Vehicles Without UNECE Cyber Security
*2
For Vehicles with Parallel Parking Assistance
*3
Front Parking Aid
*4
For Vehicles with Rearview Camera System
*5
For Vehicles with UNECE Cyber Security
*6
For Vehicles Without Rearview Camera System
*7
For Vehicles with Peripheral Camera
*8
Through June 2024
*9
From June 2024
*10
Refer to Applicable Diagnostic Connector Wiring Diagram
