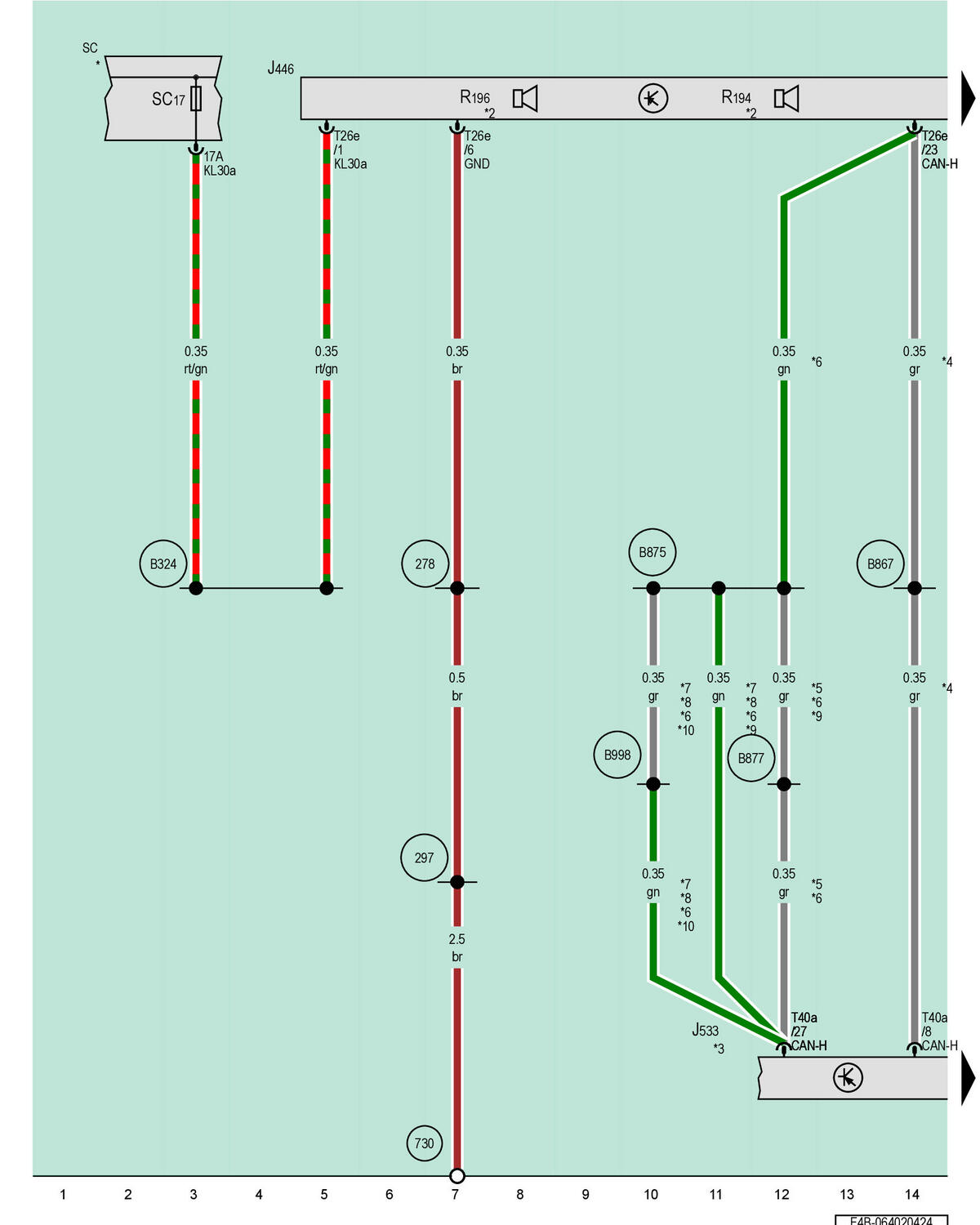

Parking Aid Control Module, Data Bus On Board Diagnostic Interface, Fuse Panel C
J446
Parking Aid Control Module
J533
Data Bus on Board Diagnostic Interface
R194
Rear Parking Aid Speaker
R196
Right Center Treble Speaker
SC
Fuse Panel C
SC17
Fuse 17 (On Fuse Panel C)
T26e
26-Pin Connector, Black
T40a
40-Pin Connector, Black
278
Ground Connection 4 (in Interior Wiring Harness)
297
Ground Connection 12 (in Interior Wiring Harness)
730
Ground Connection 1 on Right Rear Wheel Housing
B324
Positive Connection 10 (30a) (in Main Wiring Harness)
B867
Driver Assistance Systems CAN Bus High Connection 2 (in Main Wiring Harness)
B875
Driver Assistance Systems CAN Bus High Connection 6 (in Main Wiring Harness)
B877
Driver Assistance Systems CAN Bus High Connection 7 (in Main Wiring Harness)
B998
Driver Assistance Systems CAN Bus High Connection 9 (in Main Wiring Harness)
*
Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior
*2
Warning Tone Delivery via Infotainment System
*3
Refer to Applicable Diagnostic Connector Wiring Diagram
*4
For Vehicles Without UNECE Cyber Security
*5
For Vehicles with Rearview Camera System
*6
For Vehicles with UNECE Cyber Security
*7
For Vehicles Without Rearview Camera System
*8
For Vehicles with Peripheral Camera
*9
Through June 2024
*10
From June 2024
