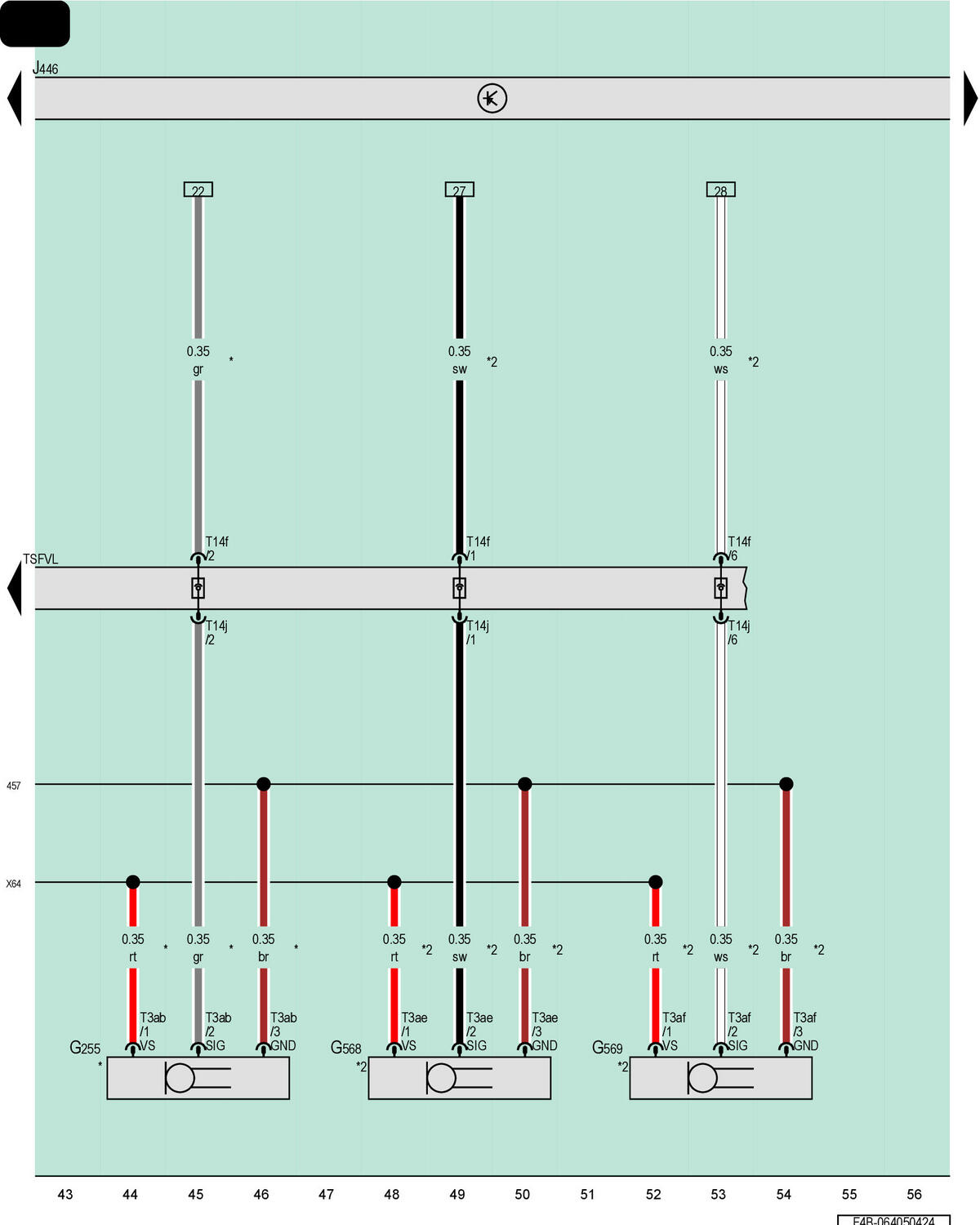

Left Front Parking Aid Sensor, Left Front Parallel Parking Assistance Sensor, Right Front Parallel Parking Assistance Sensor, Parking Aid Control Module

Courtesy of AUDI OF AMERICA, LLC

G255

Left Front Parking Aid Sensor

G568

Left Front Parallel Parking Assistance Sensor

G569

Right Front Parallel Parking Assistance Sensor

J446

Parking Aid Control Module

T3ab

3-Pin Connector, Black

T3ae

3-Pin Connector, Gray

T3af

3-Pin Connector, Gray

T14f

14-Pin Connector, Brown

T14j

14-Pin Connector, Brown

TSFVL

Coupling Point on Left Front Bumper

457

Ground Connection 2 (in Front Bumper Wiring Harness)

X64

Positive Connection (30a) (in Siren Wiring Harness)

*

Front Parking Aid

*2

For Vehicles with Parallel Parking Assistance
