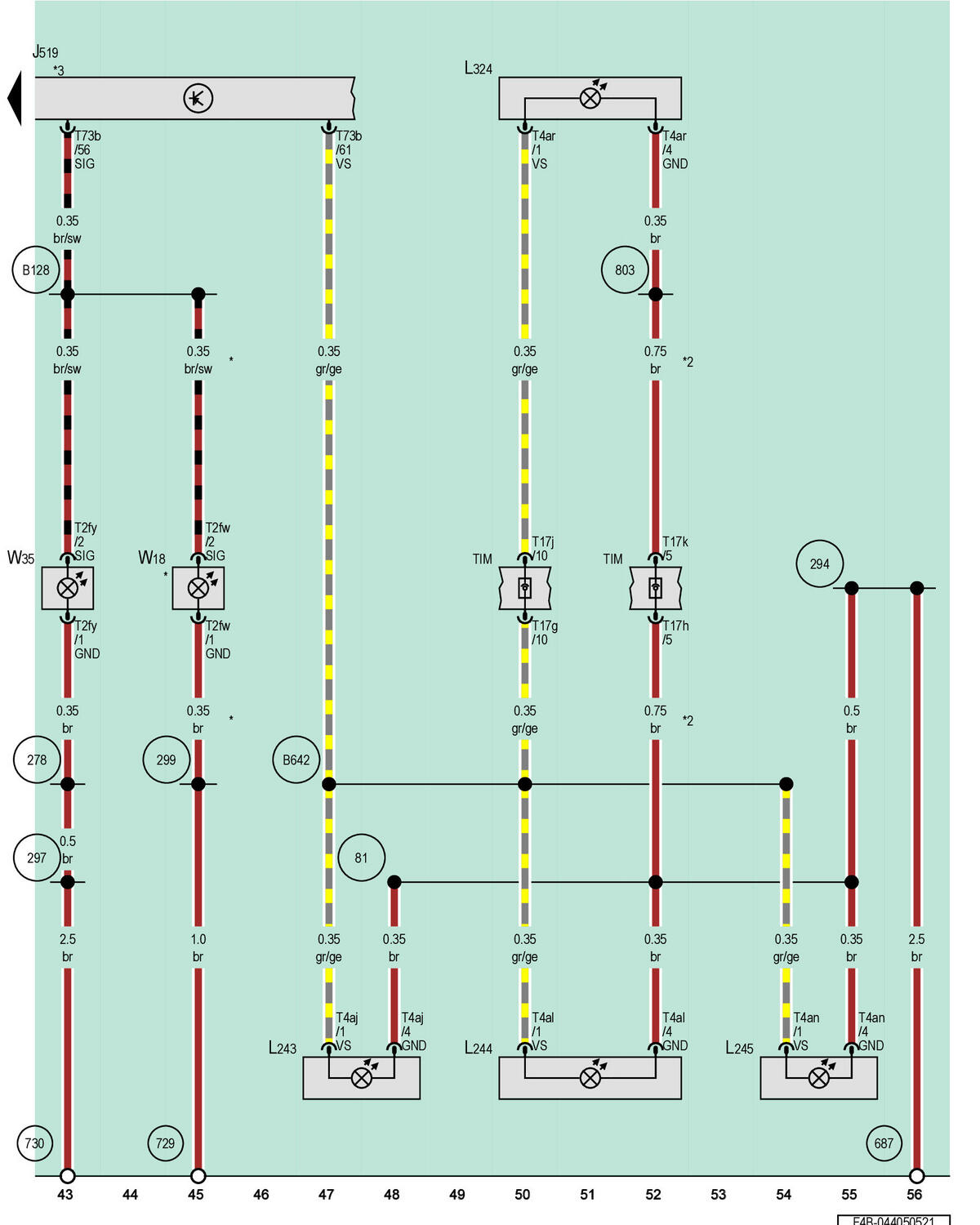

Vehicle Electrical System Control Module, Instrument Panel Contour Illumination Lamp 1, Instrument Panel Contour Illumination Lamp 2, Instrument Panel Contour Illumination Lamp 3, Front Center Console Storage Compartment Illumination Bulb, Left Luggage Compartment Lamp, Right Luggage Compartment Lamp
J519
Vehicle Electrical System Control Module
L243
Instrument Panel Contour Illumination Lamp 1
L244
Instrument Panel Contour Illumination Lamp 2
L245
Instrument Panel Contour Illumination Lamp 3
L324
Front Center Console Storage Compartment Illumination Bulb
T2fw
2-Pin Connector, Black
T2fy
2-Pin Connector, Black
T4aj
4-Pin Connector, Red
T4al
4-Pin Connector, Red
T4an
4-Pin Connector, Blue
T4ar
4-Pin Connector, Red
T17g
17-Pin Connector, Black
T17h
17-Pin Connector, Red
T17j
17-Pin Connector, Black
T17k
17-Pin Connector, Red
T73b
73-Pin Connector, Black
TIM
Coupling Point in Interior, Center
W18
Left Luggage Compartment Lamp
W35
Right Luggage Compartment Lamp
81
Ground Connection 1 (in Instrument Panel Wiring Harness)
278
Ground Connection 4 (in Interior Wiring Harness)
294
Ground Connection 9 (in Interior Wiring Harness)
297
Ground Connection 12 (in Interior Wiring Harness)
299
Ground Connection 14 (in Interior Wiring Harness)
687
Ground Connection 1 on Center Tunnel
729
Ground Connection on Left Rear Wheel Housing
730
Ground Connection 1 on Right Rear Wheel Housing
803
Ground Connection (in Center Console Wiring Harness)
B128
Luggage Compartment Lamp Connection (in Interior Wiring Harness)
B642
Positive Connection (58) (in Main Wiring Harness)
*
Optional Equipment
*2
Diameter Depends on Equipment
*3
Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior
