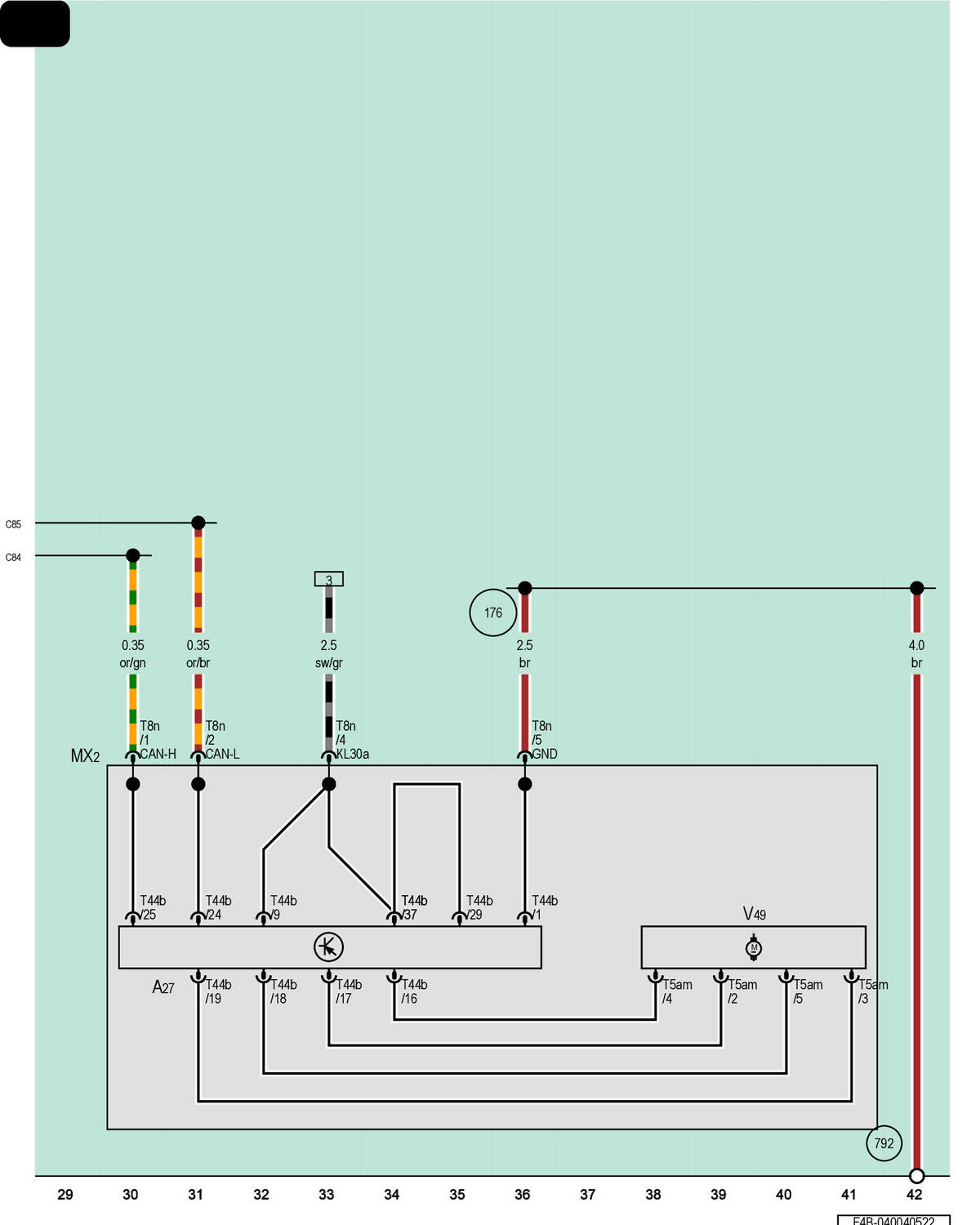

Right Front Headlamp

Courtesy of AUDI OF AMERICA, LLC

A27

Right LED Headlamp Power Output Module 1

MX2

Right Front Headlamp

T5am

5-Pin Connector, Black

T8n

8-Pin Connector, Black

T44b

44-Pin Connector, Black

V49

Right Headlamp Range Control Adjustment Motor

176

Ground Connection (in Right Headlamp Wiring Harness)

792

Ground Connection in Right Front Wheel Housing

C84

Connection 1 (CAN Bus Variable Headlamps AFS, High) in Engine/Motor Compartment

C85

Connection 1 (CAN Bus Variable Headlamps AFS, Low) in Engine/Motor Compartment
