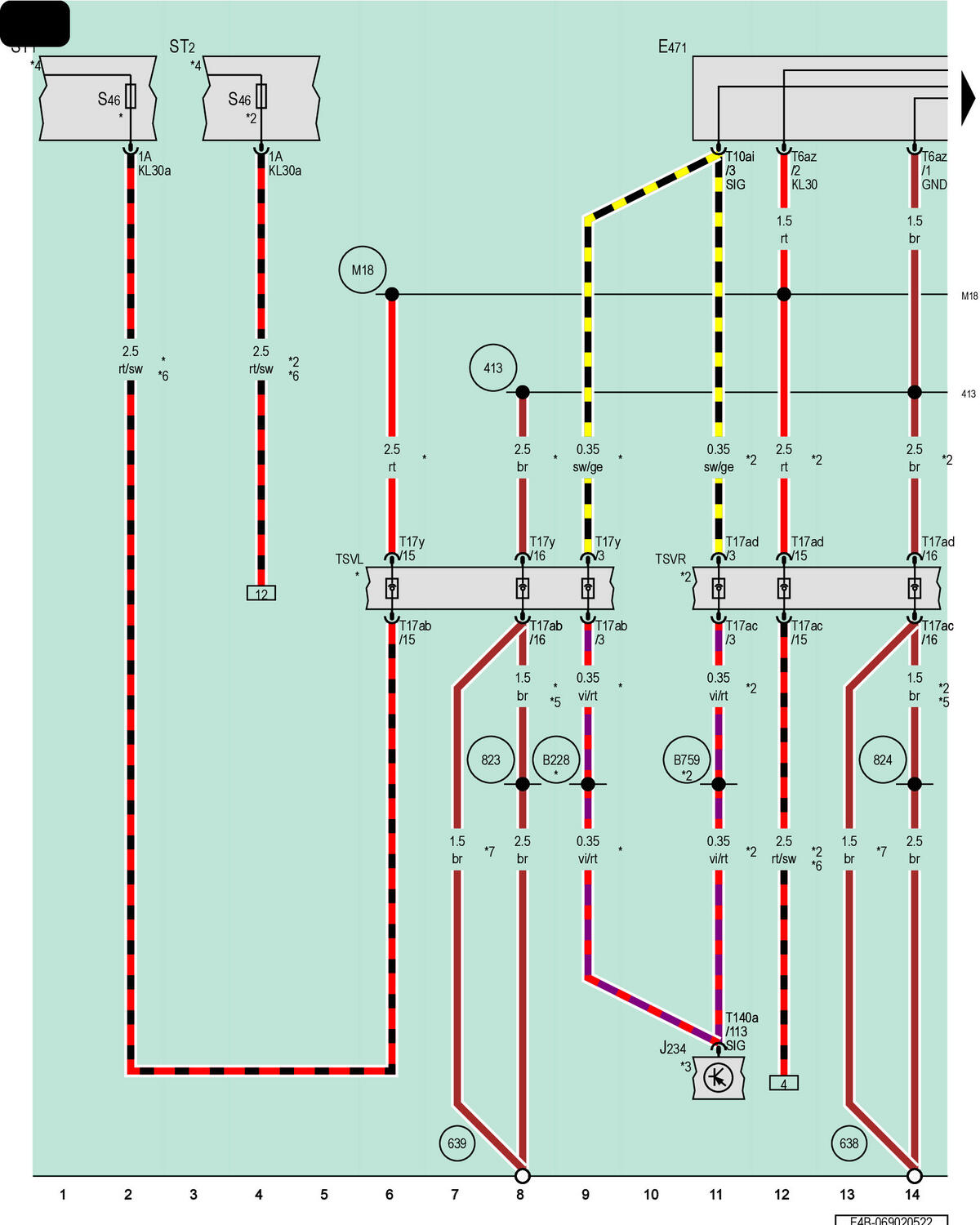

Front Passenger Seat Adjustment Control Head, Airbag Control Module, Fuse Panel 1, Fuse Panel 2
E471
Front Passenger Seat Adjustment Control Head
J234
Airbag Control Module
ST1
Fuse Panel 1
ST2
Fuse Panel 2
S46
Front Passenger Power Seat Adjustment Circuit Breaker 1
T6az
6-Pin Connector, Black
T10ai
10-Pin Connector, Black
T17ab
17-Pin Connector, Red
T17ac
17-Pin Connector, Red
T17ad
17-Pin Connector, Red
T17y
17-Pin Connector, Red
T140a
140-Pin Connector, Yellow
TSVL
Left Front Seat Coupling Station
TSVR
Right Front Seat Coupling Station
413
Ground Connection 4 (in Seat Adjustment Wiring Harness)
638
Ground Connection on Right A-Pillar
639
Ground Connection on Left A-Pillar
823
Ground Connection 16 (in Interior Wiring Harness)
824
Ground Connection 17 (in Interior Wiring Harness)
B228
Crash Signal Connection (in Interior Wiring Harness)
B759
Crash Signal Connection (in Main Wiring Harness)
M18
Connection 1 (in Front Passenger Seat Adjustment Wiring Harness)
*
For RHD Vehicles
*2
For LHD Vehicles
*3
Refer to Applicable Airbag Wiring Diagram
*4
Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior
*5
Through November 2021
*6
Diameter Depends on Equipment
*7
From November 2021
