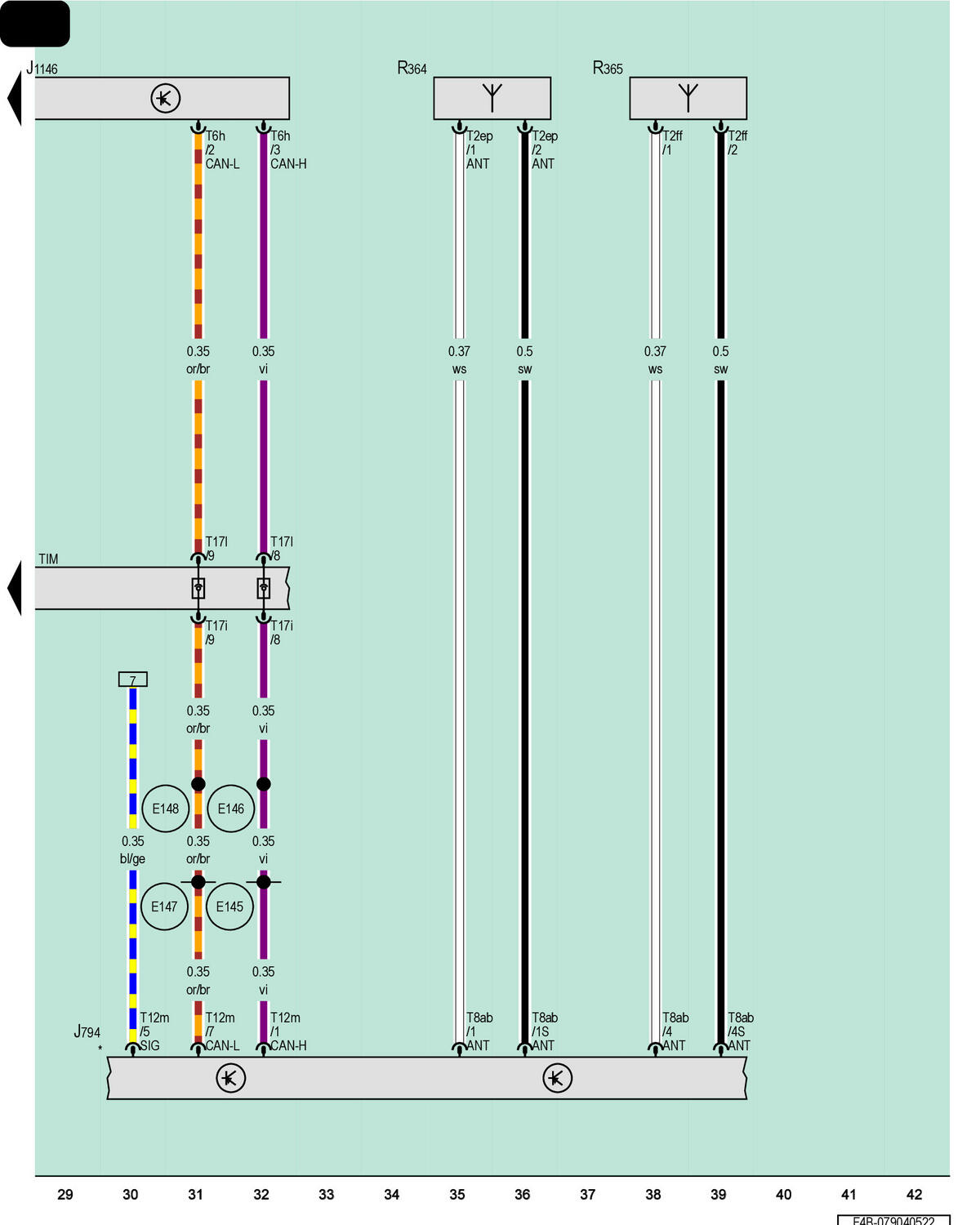

Information Electronics Control Module 1, Mobile Device Charger 1, Vehicle Interior Communication Antenna

Courtesy of AUDI OF AMERICA, LLC

J794

Information Electronics Control Module 1

J1146

Mobile Device Charger 1

R364

Vehicle Interior Communication Antenna

R365

Vehicle Interior Communication Antenna 2

T2ep

2-Pin Connector, Naturally Cloudy

T2ff

2-Pin Connector, Naturally Cloudy

T6h

6-Pin Connector, Black

T8ab

8-Pin Connector, White

T12m

12-Pin Connector, Gray

T17i

17-Pin Connector, Blue

T17l

17-Pin Connector, Blue

TIM

Coupling Point in Interior, Center

E145

Connection 1 (CAN Bus Information Electronics Control Module 1, High)

E146

Connection 2 (CAN Bus Information Electronics Control Module 1, High)

E147

Connection 1 (CAN Bus Information Electronics Control Module 1, Low)

E148

Connection 2 (CAN Bus Information Electronics Control Module 1, Low)

*

Refer to Applicable MMI (Information Electronics) Wiring Diagram
