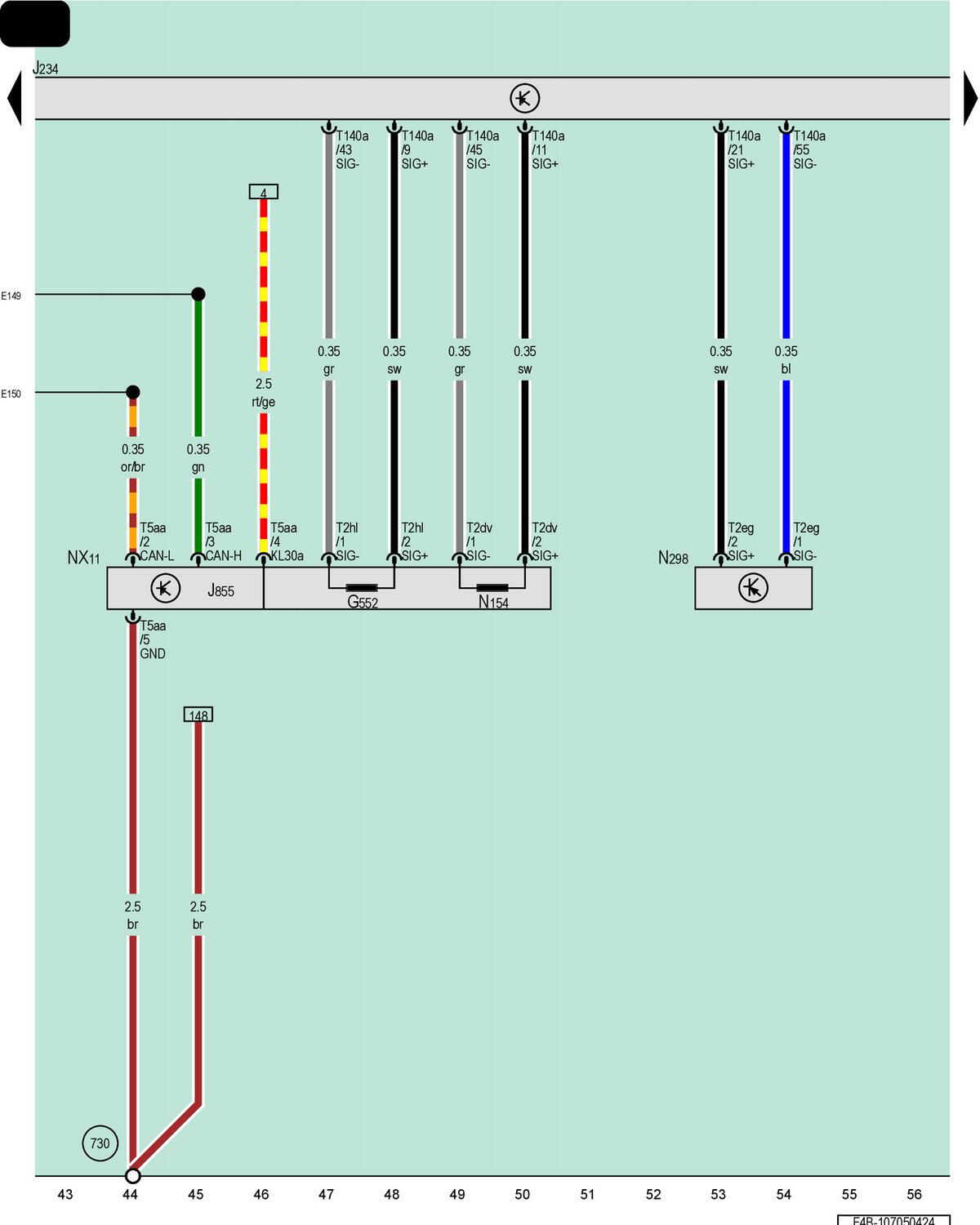

Airbag Control Module, Right Front Seat Belt, Front Passenger Seat Belt TENSIONER Igniter 2

Courtesy of AUDI OF AMERICA, LLC

G552

Front Passenger Belt Force Limiter

J234

Airbag Control Module

J855

Right Front Seat Belt Tensioner Control Module

NX11

Right Front Seat Belt

N154

Front Passenger Seat Belt Tensioner Igniter 1

N298

Front Passenger Seat Belt Tensioner Igniter 2

T2dv

2-Pin Connector, Yellow

T2eg

2-Pin Connector, Yellow

T2hl

2-Pin Connector, Yellow

T5aa

5-Pin Connector, Naturally Cloudy

T140a

140-Pin Connector, Yellow

730

Ground Connection 1 on Right Rear Wheel Housing

E149

Connection 1 (CAN Bus Airbag Control Module, High)

E150

Connection 1 (CAN Bus Airbag Control Module, Low)
