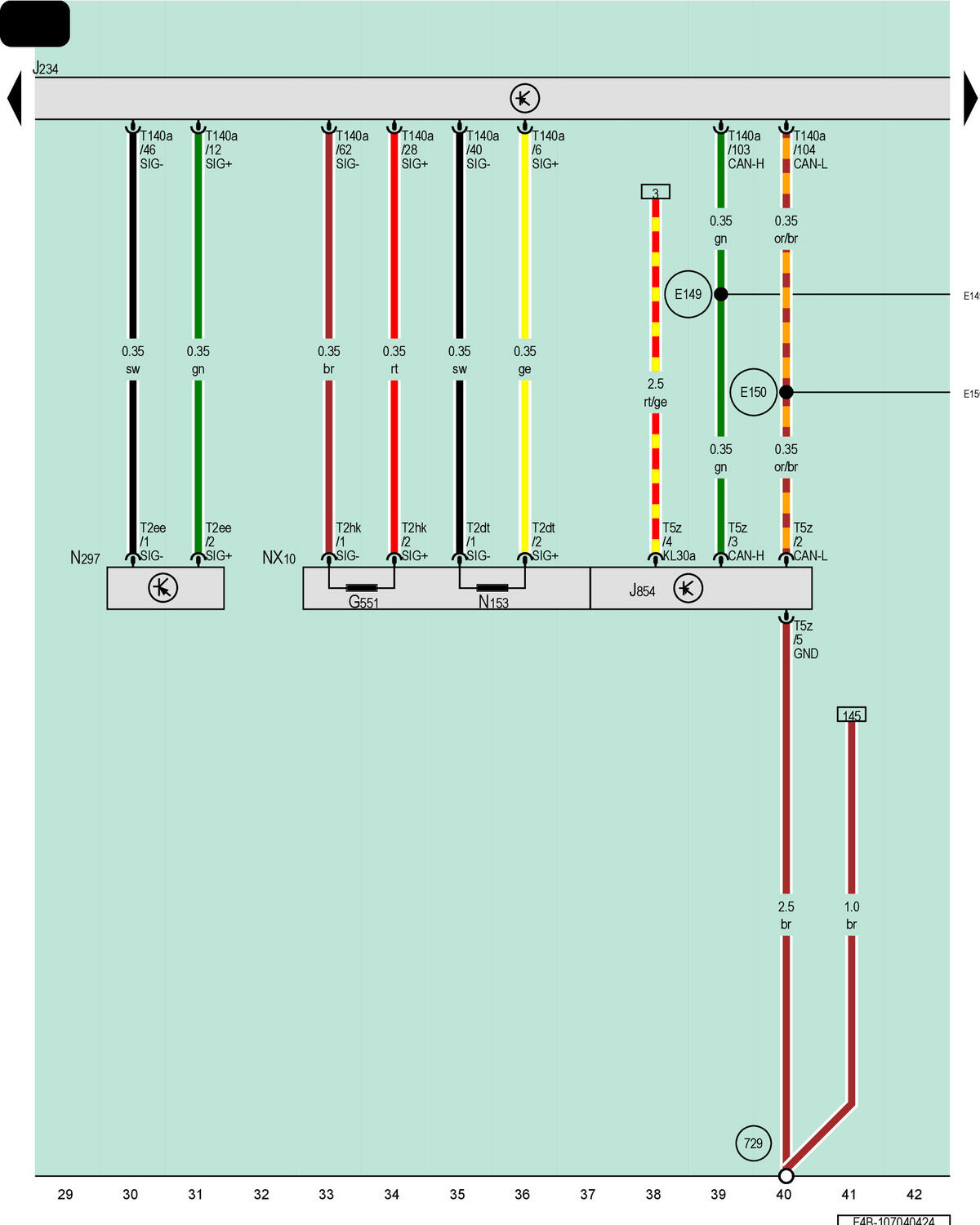

Airbag Control Module, Left Front Seat Belt, Driver Seat Belt TENSIONER Igniter 2

GWWF4B-107040424Courtesy of AUDI OF AMERICA, LLC

G551

Driver Belt Force Limiter

J234

Airbag Control Module

J854

Left Front Seat Belt Tensioner Control Module

NX10

Left Front Seat Belt

N153

Driver Seat Belt Tensioner Igniter 1

N297

Driver Seat Belt Tensioner Igniter 2

T2dt

2-Pin Connector, Yellow

T2ee

2-Pin Connector, Yellow

T2hk

2-Pin Connector, Yellow

T5z

5-Pin Connector, Naturally Cloudy

T140a

140-Pin Connector, Yellow

729

Ground Connection on Left Rear Wheel Housing

E149

Connection 1 (CAN Bus Airbag Control Module, High)

E150

Connection 1 (CAN Bus Airbag Control Module, Low)
