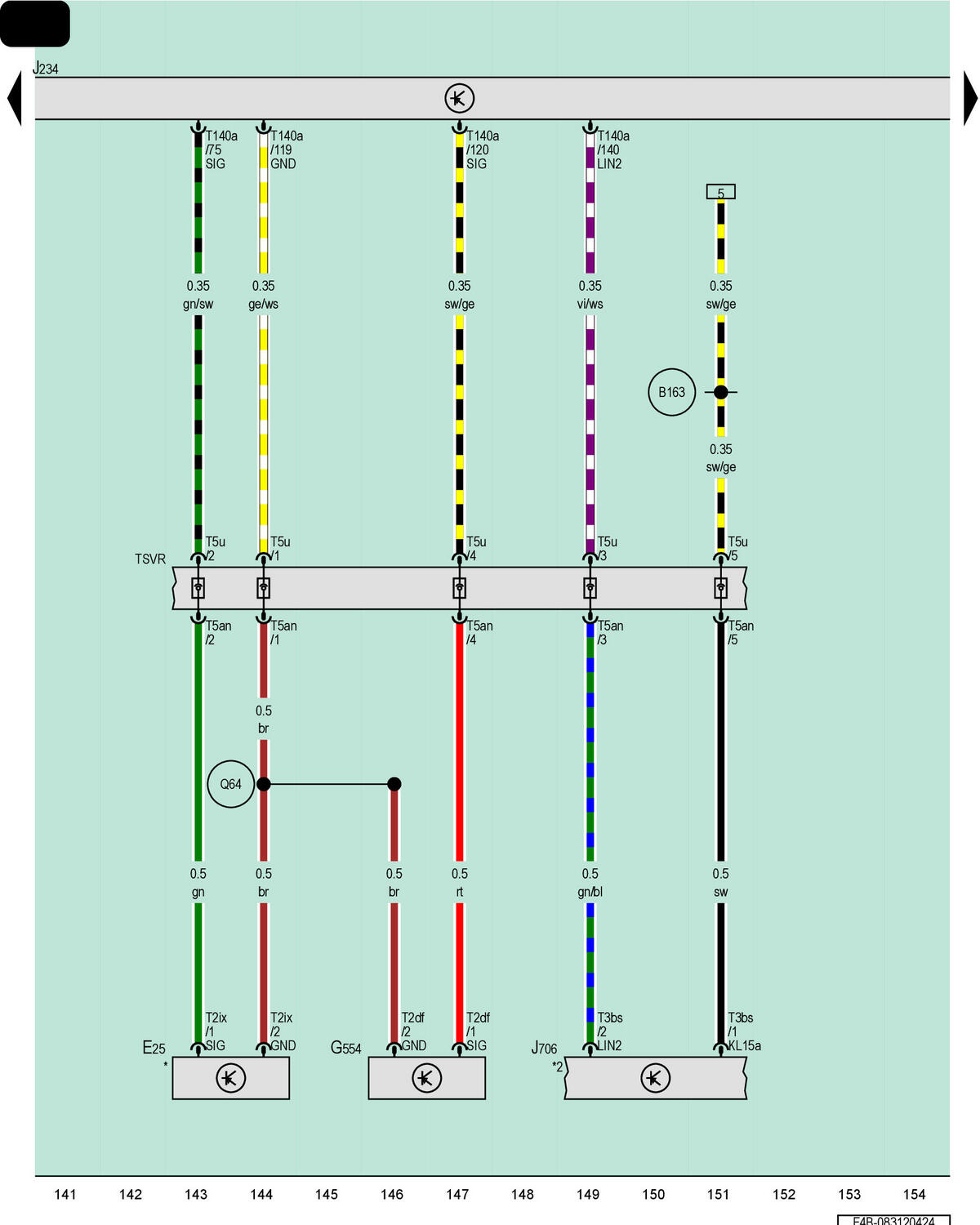

Front Passenger Seat Belt Switch, Front Passenger Seat Position Sensor, Airbag Control Module, Seat Occupant Detection System Control Module

Courtesy of AUDI OF AMERICA, LLC

E25

Front Passenger Seat Belt Switch

G554

Front Passenger Seat Position Sensor

J234

Airbag Control Module

J706

Seat Occupant Detection System Control Module

T2df

2-Pin Connector, Black

T2ix

2-Pin Connector, Black

T3bs

3-Pin Connector, Black

T5an

5-Pin Connector, Black

T5u

5-Pin Connector, Black

T140a

140-Pin Connector, Yellow

TSVR

Right Front Seat Coupling Station

B163

Positive Connection 1 (15) (in Interior Wiring Harness)

Q64

Connection (in Seat Belt Tensioner Wiring Harness)

*

Pre-Wired Component

*2

Refer to the Applicable Heated Seats Wiring Diagram
