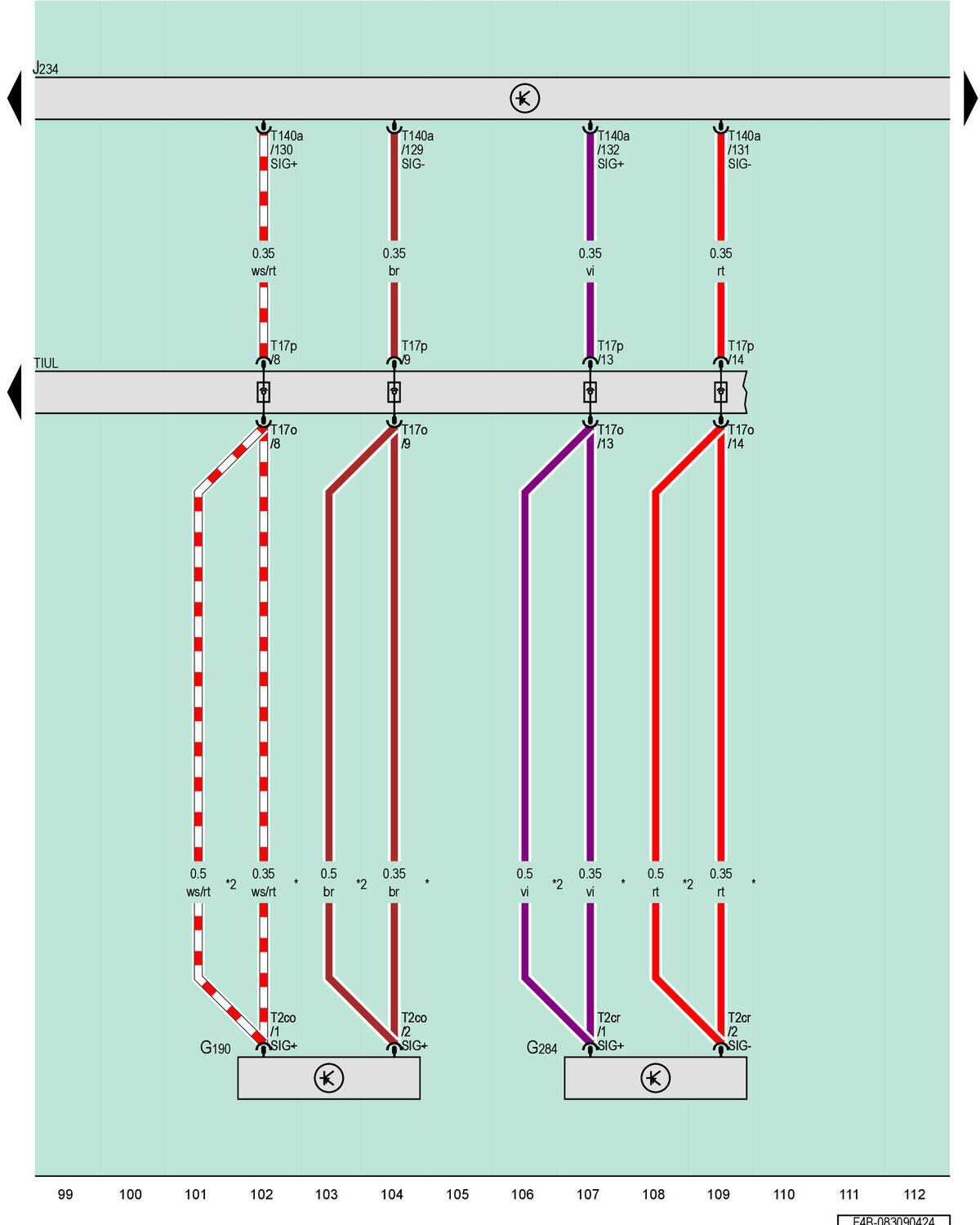

Front Airbag Crash Sensor, Passenger Side Front Airbag Crash Sensor, Airbag Control Module

Courtesy of AUDI OF AMERICA, LLC

G190

Front Airbag Crash Sensor

G284

Passenger Side Front Airbag Crash Sensor

J234

Airbag Control Module

T2co

2-Pin Connector, Yellow

T2cr

2-Pin Connector, Yellow

T17o

17-Pin Connector, Brown

T17p

17-Pin Connector, Brown

T140a

140-Pin Connector, Yellow

TIUL

Coupling Point in Interior, Bottom Left

*

Through June 2023

*2

From June 2023
