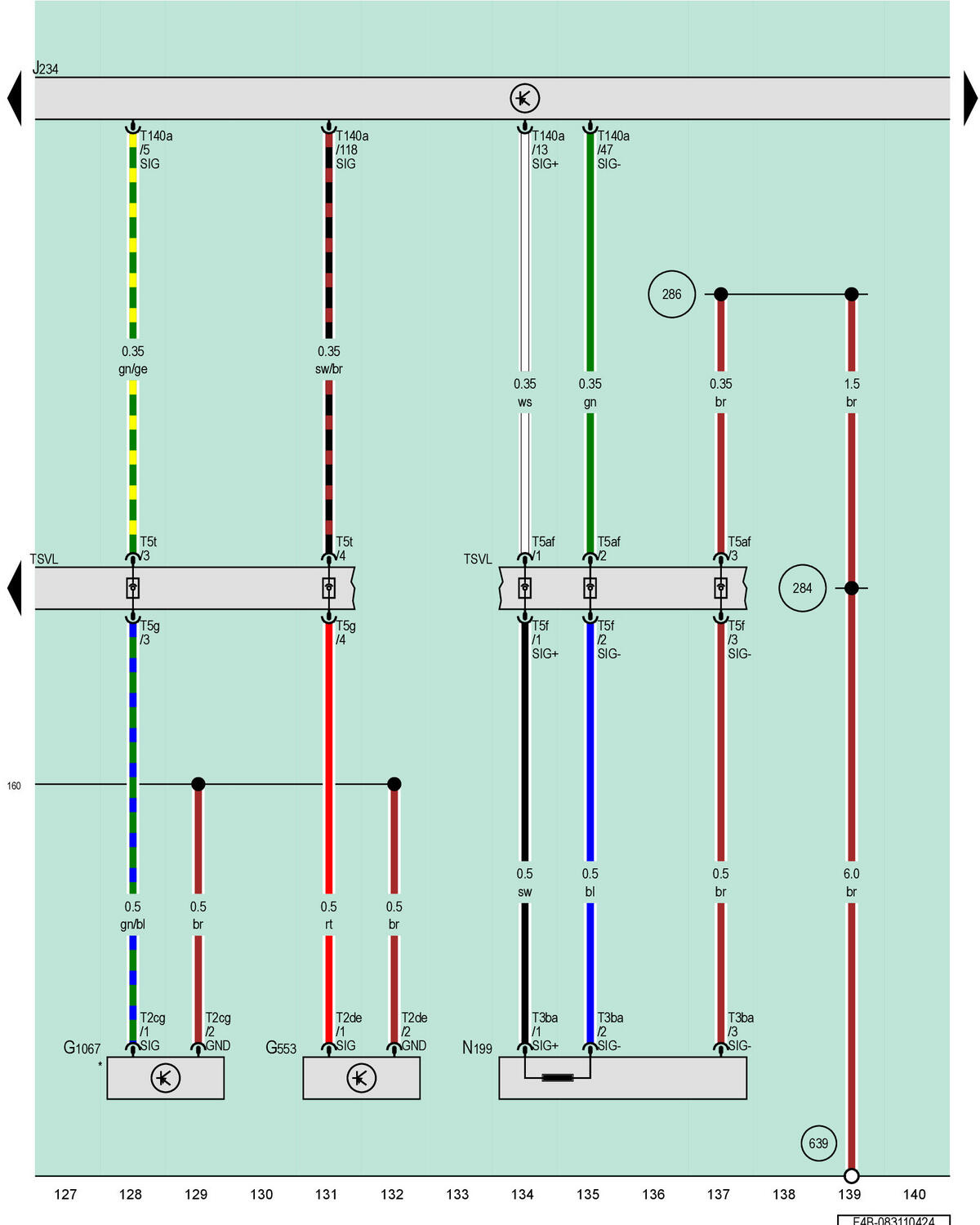

Driver Seat Position Sensor, Driver Side Seat Occupant Detection Sensor, Airbag Control Module, Driver Thorax Airbag Igniter
G553
Driver Seat Position Sensor
G1067
Driver Side Seat Occupant Detection Sensor
J234
Airbag Control Module
N199
Driver Thorax Airbag Igniter
T2cg
2-Pin Connector, White
T2de
2-Pin Connector, Black
T3ba
3-Pin Connector, Yellow
T5af
5-Pin Connector, Yellow
T5f
5-Pin Connector, Yellow
T5g
5-Pin Connector, Black
T5t
5-Pin Connector, Black
T140a
140-Pin Connector, Yellow
TSVL
Left Front Seat Coupling Station
160
Ground Connection (in Seat Belt Tensioner Wiring Harness)
284
Ground Connection 6 (in Interior Wiring Harness)
286
Ground Connection 8 (in Interior Wiring Harness)
639
Ground Connection on Left A-Pillar
*
Pre-Wired Component
