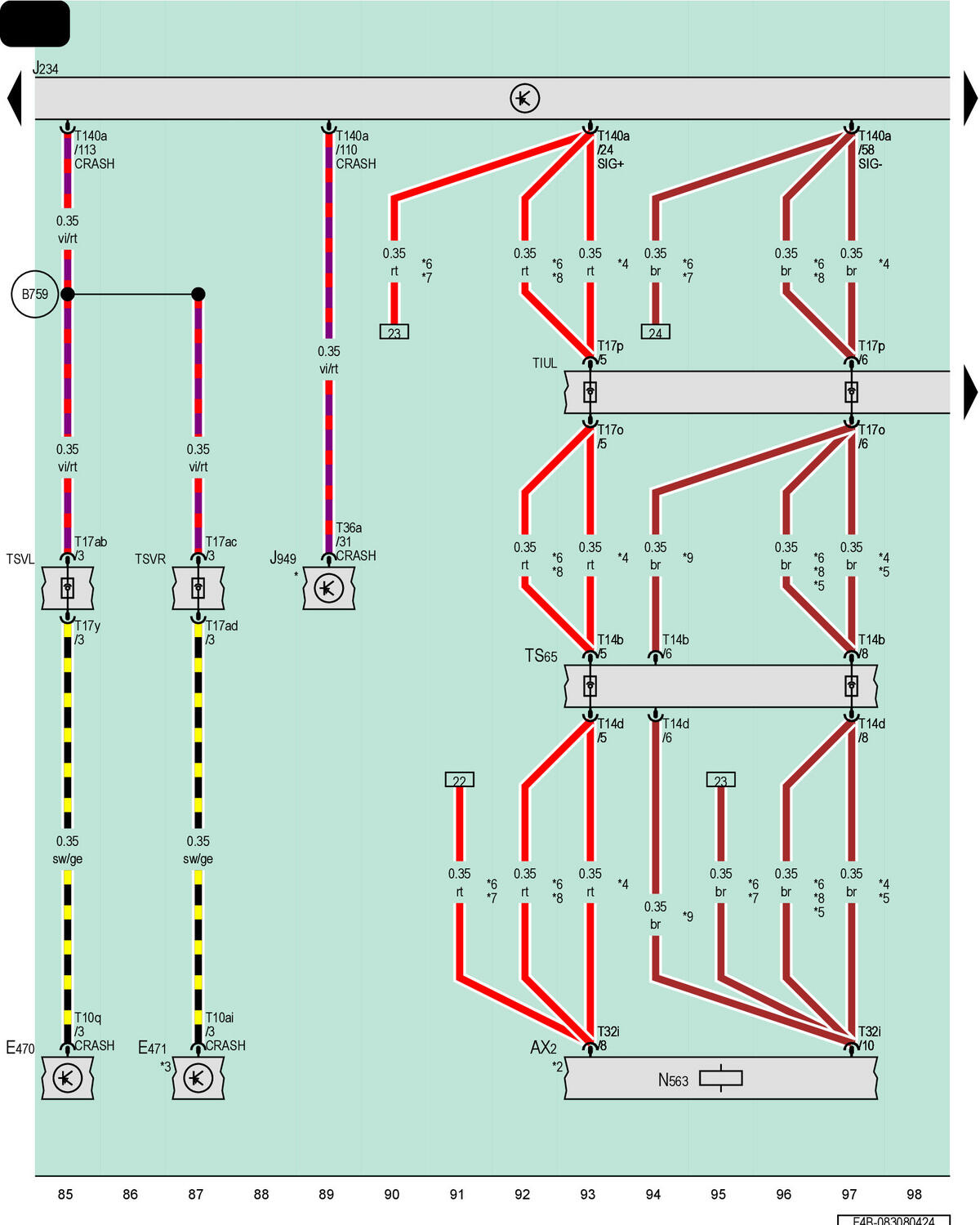

Driver Seat Adjustment Control Head, Front Passenger Seat Adjustment Control Head, Airbag Control Module, Control Module For Emergency Call Module And Communication Unit
AX2
High-Voltage Battery 1
E470
Driver Seat Adjustment Control Head
E471
Front Passenger Seat Adjustment Control Head
J234
Airbag Control Module
J949
Control Module for Emergency Call Module and Communication Unit
N563
High-Voltage Battery Interrupt Igniter
T10ai
10-Pin Connector, Black
T10q
10-Pin Connector, Black
T14b
14-Pin Connector, Black
T14d
14-Pin Connector, Black
T17ab
17-Pin Connector, Red
T17ac
17-Pin Connector, Red
T17ad
17-Pin Connector, Red
T17o
17-Pin Connector, Brown
T17p
17-Pin Connector, Brown
T17y
17-Pin Connector, Red
T32i
32-Pin Connector, Black
T36a
36-Pin Connector, Black
T140a
140-Pin Connector, Yellow
TIUL
Coupling Point in Interior, Bottom Left
TS65
Front Suspension Coupling Point
TSVL
Left Front Seat Coupling Station
TSVR
Right Front Seat Coupling Station
B759
Crash Signal Connection (in Main Wiring Harness)
*
Refer to Applicable Communication Wiring Diagram
*2
Refer to Applicable High-Voltage Battery Wiring Diagram
*3
Refer to Applicable Wiring Diagram for the Front Passenger Seat
*4
For Rear Wheel Drive Vehicles
*5
Through September 2023
*6
For AWD Vehicles
*7
Through November 2022
*8
From November 2022
*9
From September 2023
