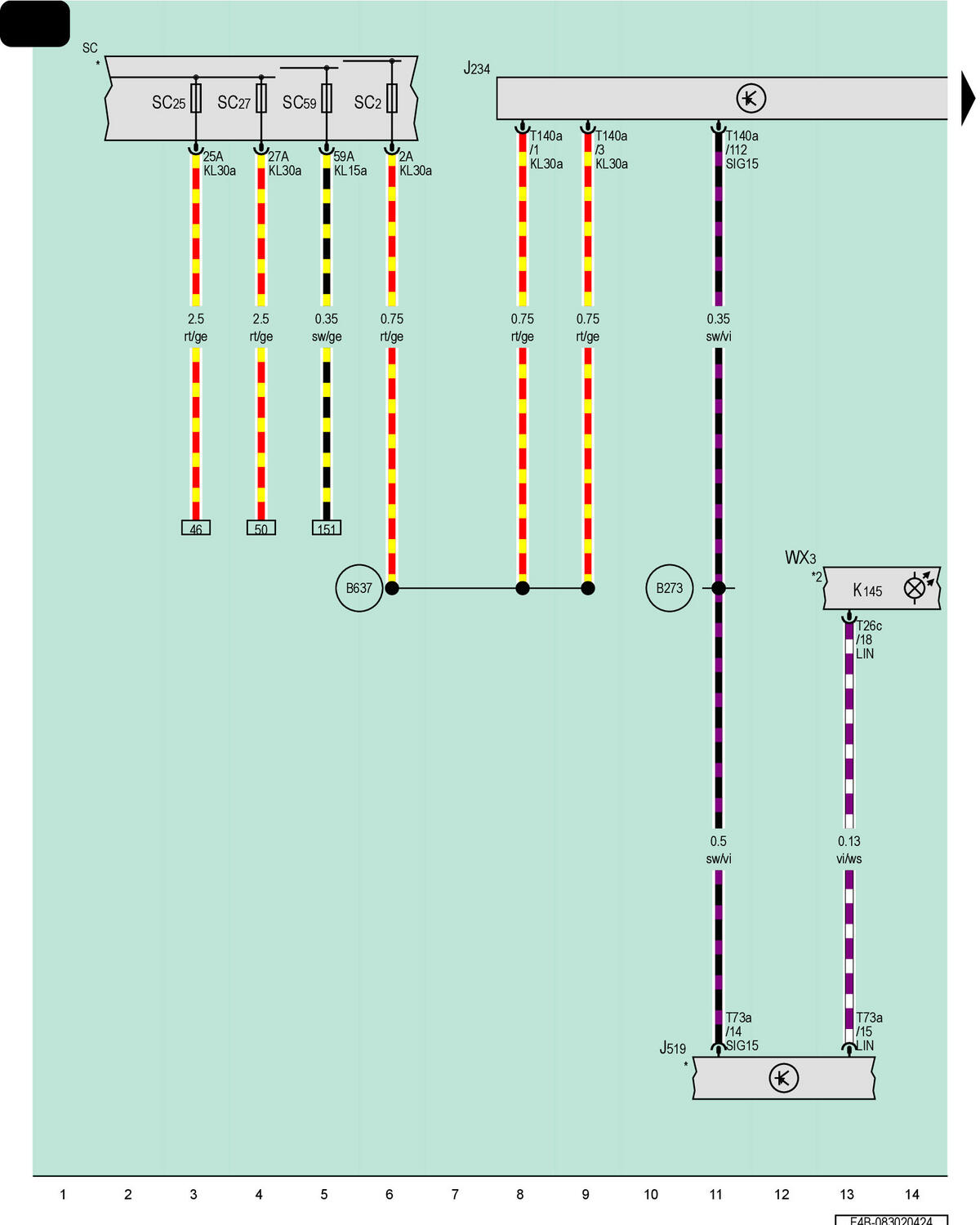

Airbag Control Module, Vehicle Electrical System Control Module, Fuse Panel C, Front Roof Module

Courtesy of AUDI OF AMERICA, LLC

J234

Airbag Control Module

J519

Vehicle Electrical System Control Module

K145

Front Passenger Airbag -Disabled- Indicator Lamp

SC

Fuse Panel C

SC2

Fuse 2 (On Fuse Panel C)

SC25

Fuse 25 (On Fuse Panel C)

SC27

Fuse 27 (On Fuse Panel C)

SC59

Fuse 59 (On Fuse Panel C)

T26c

26-Pin Connector, Black

T73a

73-Pin Connector, Black

T140a

140-Pin Connector, Yellow

WX3

Front Roof Module

B273

Positive Connection (15) (in Main Wiring Harness)

B637

Airbag Connection 1 (in Main Wiring Harness)

*

Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior

*2

Refer to Applicable Wiring Diagram for Interior Lamps
