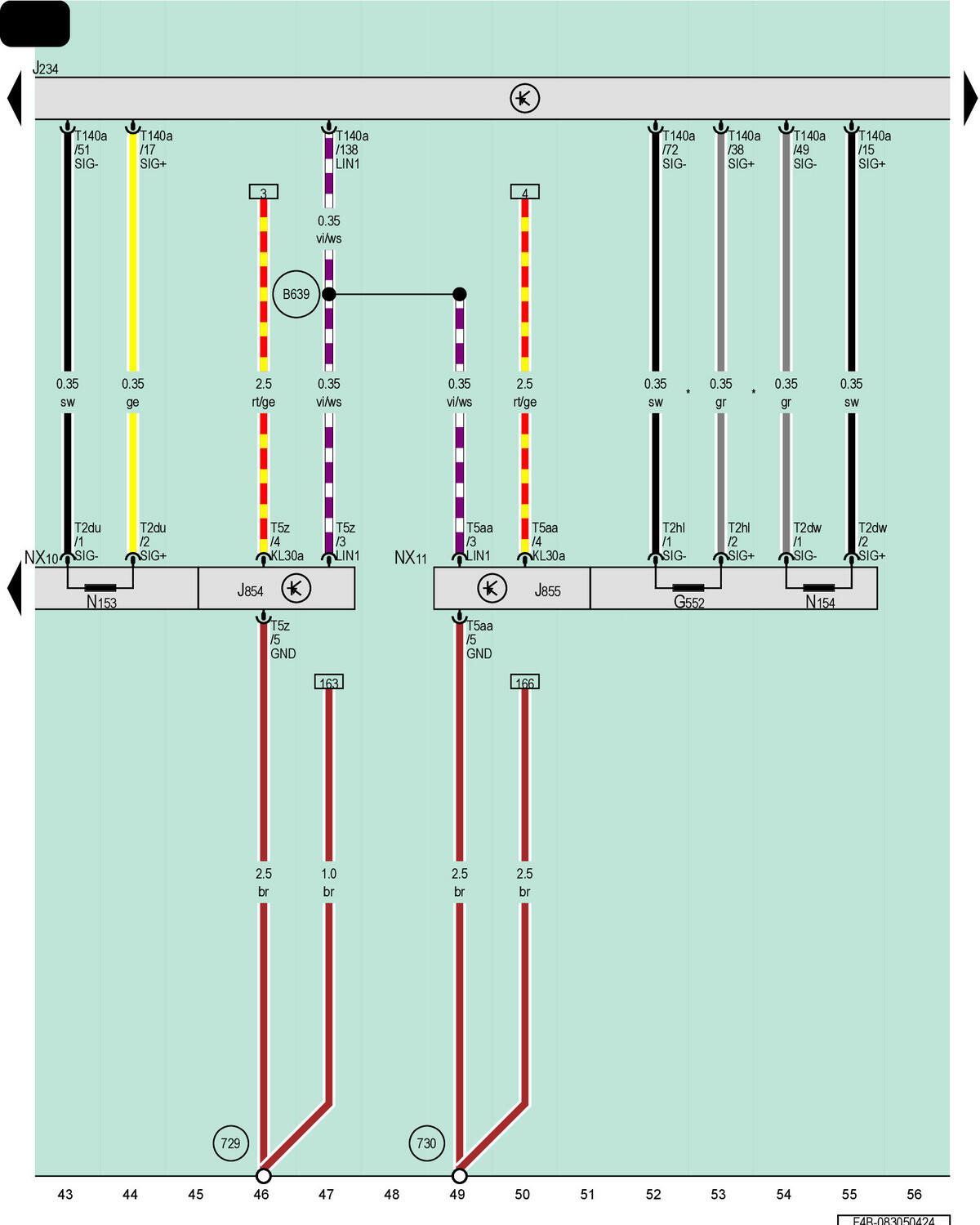

Airbag Control Module, Left Front Seat Belt, Right Front Seat Belt
G552
Front Passenger Belt Force Limiter
J234
Airbag Control Module
J854
Left Front Seat Belt Tensioner Control Module
J855
Right Front Seat Belt Tensioner Control Module
NX10
Left Front Seat Belt
NX11
Right Front Seat Belt
N153
Driver Seat Belt Tensioner Igniter 1
N154
Front Passenger Seat Belt Tensioner Igniter 1
T2du
2-Pin Connector, Yellow
T2dw
2-Pin Connector, Yellow
T2hl
2-Pin Connector, Yellow
T5aa
5-Pin Connector, Naturally Cloudy
T5z
5-Pin Connector, Naturally Cloudy
T140a
140-Pin Connector, Yellow
729
Ground Connection on Left Rear Wheel Housing
730
Ground Connection 1 on Right Rear Wheel Housing
B639
Airbag Connection 3 (in Main Wiring Harness)
*
Different Wire Color Possible
